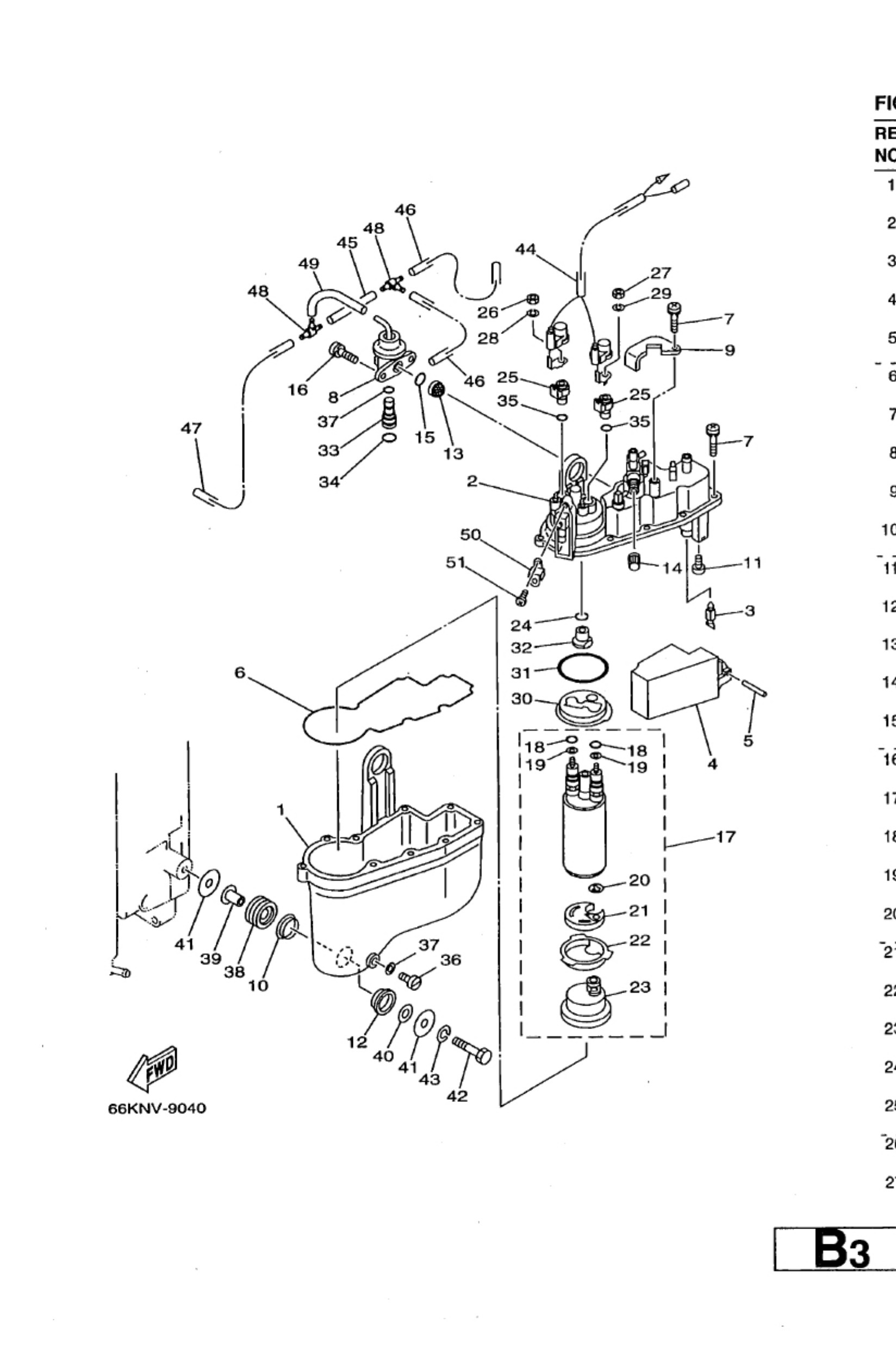

Diagram: FUEL INJECTION PUMP
Parts List
Cover, float chamber
Diagram Reference: 1
Body, float chamber
Diagram Reference: 1
Valve, needle
Diagram Reference: 3
Float
Diagram Reference: 4
Pin, Float Arm
Diagram Reference: 5
Gasket, float chamber
Diagram Reference: 6
Screw
Diagram Reference: 7
Regulator, pressure
Diagram Reference: 8
Spacer
Diagram Reference: 12
Filter comp
Diagram Reference: 13
Cap
Diagram Reference: 14
O-ring
Diagram Reference: 15
Fuel pump comp.
Diagram Reference: 17
Washer
Diagram Reference: 18
Plate 2
Diagram Reference: 22
Filter
Diagram Reference: 23
O-ring
Diagram Reference: 24
25 66K-14271-00
Diagram Reference: 24
Washer
Diagram Reference: 28
Washer
Diagram Reference: 29
Plate 1
Diagram Reference: 30
O-ring
Diagram Reference: 31
Connector
Diagram Reference: 32
O-Ring
Diagram Reference: 34
O-ring
Diagram Reference: 35
Screw, drain
Diagram Reference: 36
Collar
Diagram Reference: 39
Washer
Diagram Reference: 40
Washer 2
Diagram Reference: 41
Bolt
Diagram Reference: 42
Wire, Lead
Diagram Reference: 44
Hose, vacuum sensing 1
Diagram Reference: 45
Hose, Vacuum Sensing 2
Diagram Reference: 46
Hose, vacuum sensing 3
Diagram Reference: 47
Pipe.joint 4
Diagram Reference: 48
Hose, vacuum sensing 4
Diagram Reference: 49
Holder
Diagram Reference: 50
Screw
Diagram Reference: 51
Seal
Diagram Reference: 87
