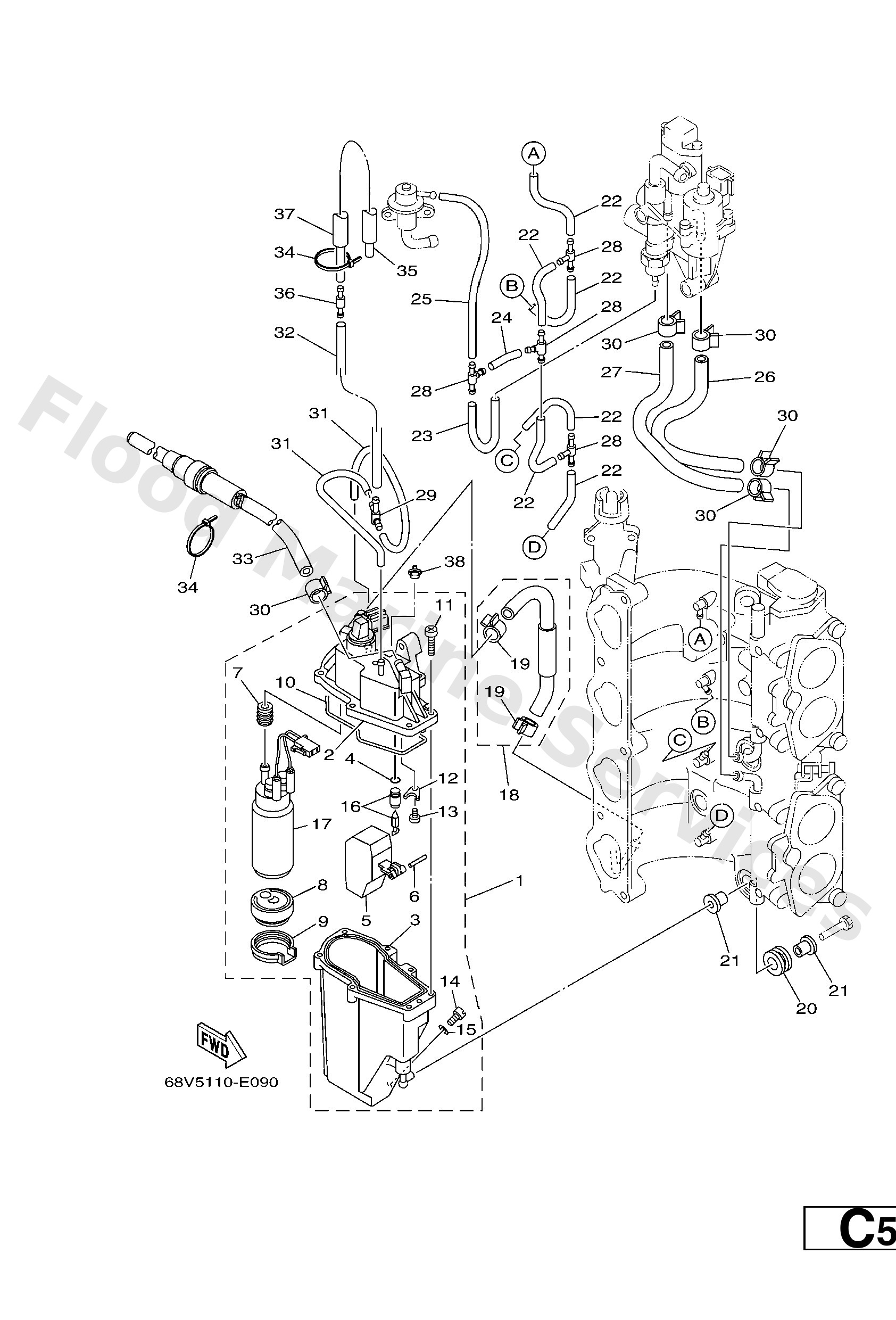

Diagram: FUEL INJECTION PUMP
Parts List
Float chamber assembly
Diagram Reference: 1
Cover, float chamber
Diagram Reference: 2
Body, float chamber 1
Diagram Reference: 3
O-ring
Diagram Reference: 4
Float
Diagram Reference: 5
Pin,float
Diagram Reference: 6
Grommet & collar set
Diagram Reference: 7
Filter
Diagram Reference: 8
Cover, pump
Diagram Reference: 9
Gasket, float chamber
Diagram Reference: 10
Screw
Diagram Reference: 11
Plate, valve seat
Diagram Reference: 12
Screw
Diagram Reference: 13
Plug, drain
Diagram Reference: 14
Washer
Diagram Reference: 15
Valve, needle
Diagram Reference: 16
Fuel pump comp.
Diagram Reference: 17
Hose comp.
Diagram Reference: 18
Clip
Diagram Reference: 19
Damper
Diagram Reference: 20
Collar
Diagram Reference: 21
Hose, vacuum sensing 1
Diagram Reference: 22
Hose, vacuum sensing 4
Diagram Reference: 23
Hose, Vacuum Sensing 2
Diagram Reference: 24
Hose, vacuum sensing 3
Diagram Reference: 25
Hose 1
Diagram Reference: 26
Hose 2
Diagram Reference: 27
Pipe, joint 1
Diagram Reference: 28
Pipe, joint 4
Diagram Reference: 29
Clip
Diagram Reference: 30
Hose, vacuum sensing 5
Diagram Reference: 31
Hose 3
Diagram Reference: 32
Filter, fuel
Diagram Reference: 33
Clamp
Diagram Reference: 34
Hose, vacuum sensing 5
Diagram Reference: 35
Relief Valve assembly
Diagram Reference: 36
Hose, Air
Diagram Reference: 37
Cap
Diagram Reference: 38
