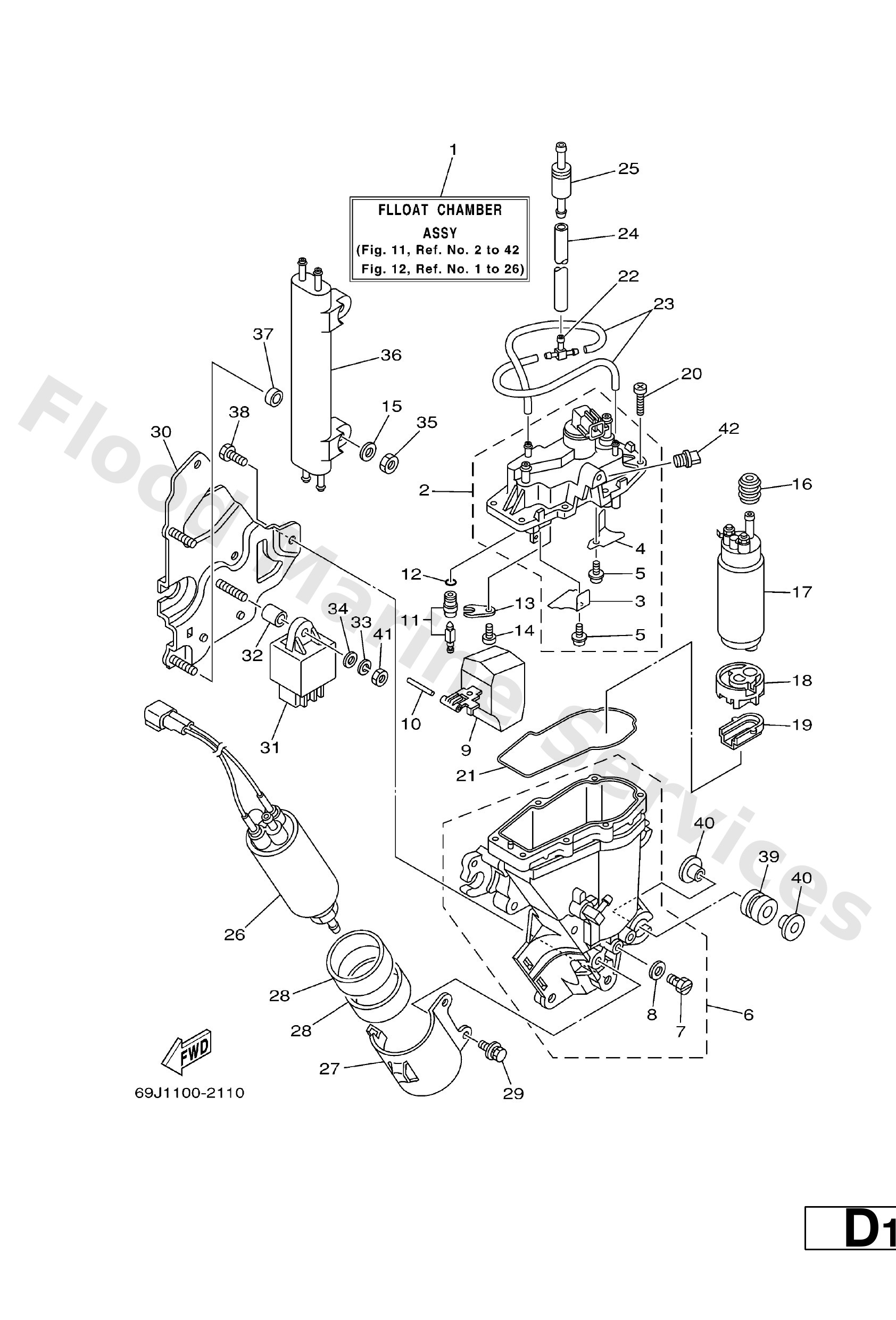

Diagram: FUEL INJECTION PUMP 1
Parts List
Float chamber assembly
Diagram Reference: 1
Cover, Float Chamber
Diagram Reference: 2
Screw
Diagram Reference: 5
Body, float chamber 1
Diagram Reference: 6
Plug, drain
Diagram Reference: 7
Washer
Diagram Reference: 8
Float
Diagram Reference: 9
Pin,float
Diagram Reference: 10
Valve, needle
Diagram Reference: 11
O-ring
Diagram Reference: 12
Plate, valve seat
Diagram Reference: 13
Screw, pan head(jg1)
Diagram Reference: 14
Washer, plain
Diagram Reference: 15
Damper, pump
Diagram Reference: 16
Fuel pump comp.
Diagram Reference: 17
Filter
Diagram Reference: 18
Cover, pump
Diagram Reference: 19
Screw
Diagram Reference: 20
Gasket, float chamber
Diagram Reference: 21
Pipe, joint 4
Diagram Reference: 22
Pipe
Diagram Reference: 23
Pipe
Diagram Reference: 24
Relief valve assembly
Diagram Reference: 25
Bracket, fuel pump
Diagram Reference: 27
Bush, fulel pump
Diagram Reference: 28
Bolt
Diagram Reference: 29
Relay assembly
Diagram Reference: 31
Bush
Diagram Reference: 32
Washer, spring
Diagram Reference: 33
Plate
Diagram Reference: 34
Nut, holding
Diagram Reference: 35
Cooler
Diagram Reference: 36
Collar
Diagram Reference: 37
Bolt
Diagram Reference: 38
Damper
Diagram Reference: 39
Collar
Diagram Reference: 40
Nut(jn5)
Diagram Reference: 41
Cap
Diagram Reference: 42
