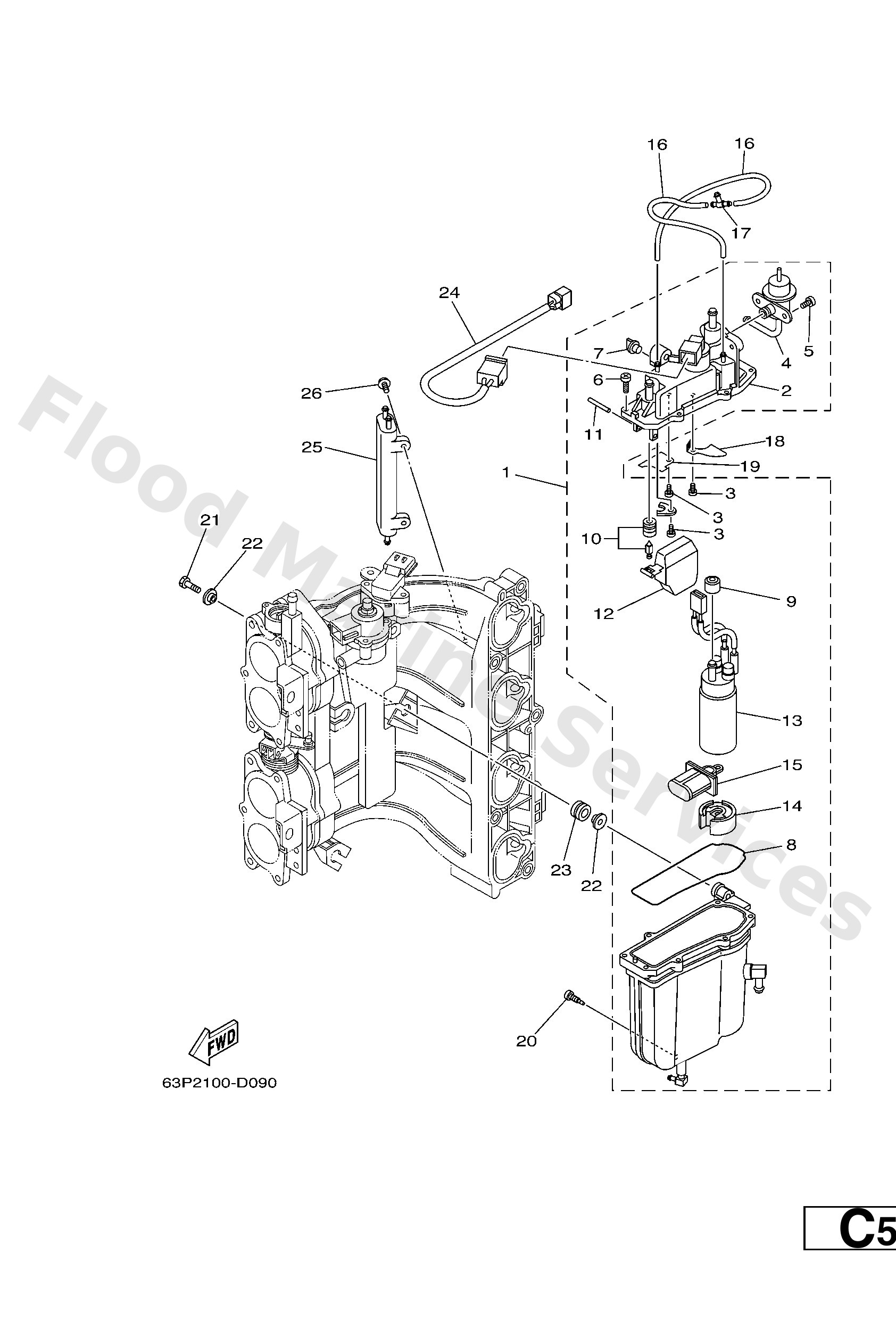

Diagram: FUEL INJECTION PUMP 1
Parts List
Float chamber assembly
Diagram Reference: 1
Cover, float chamber
Diagram Reference: 2
Screw
Diagram Reference: 3
Regulator, pressure
Diagram Reference: 4
Screw
Diagram Reference: 5
Screw
Diagram Reference: 6
Gasket, float chamber
Diagram Reference: 8
Grommet & collar set
Diagram Reference: 9
Valve, needle
Diagram Reference: 10
Pin,float
Diagram Reference: 11
Float
Diagram Reference: 12
Fuel pump comp.
Diagram Reference: 13
Cover, pump
Diagram Reference: 14
Filter
Diagram Reference: 15
Pipe
Diagram Reference: 16
Pipe, joint 4
Diagram Reference: 17
Plate 1
Diagram Reference: 18
Plate 2
Diagram Reference: 19
Plug, drain
Diagram Reference: 20
Bolt
Diagram Reference: 21
Collar
Diagram Reference: 22
Damper
Diagram Reference: 23
Wire harness assembly 1
Diagram Reference: 24
Cooler
Diagram Reference: 25
Bolt
Diagram Reference: 26
