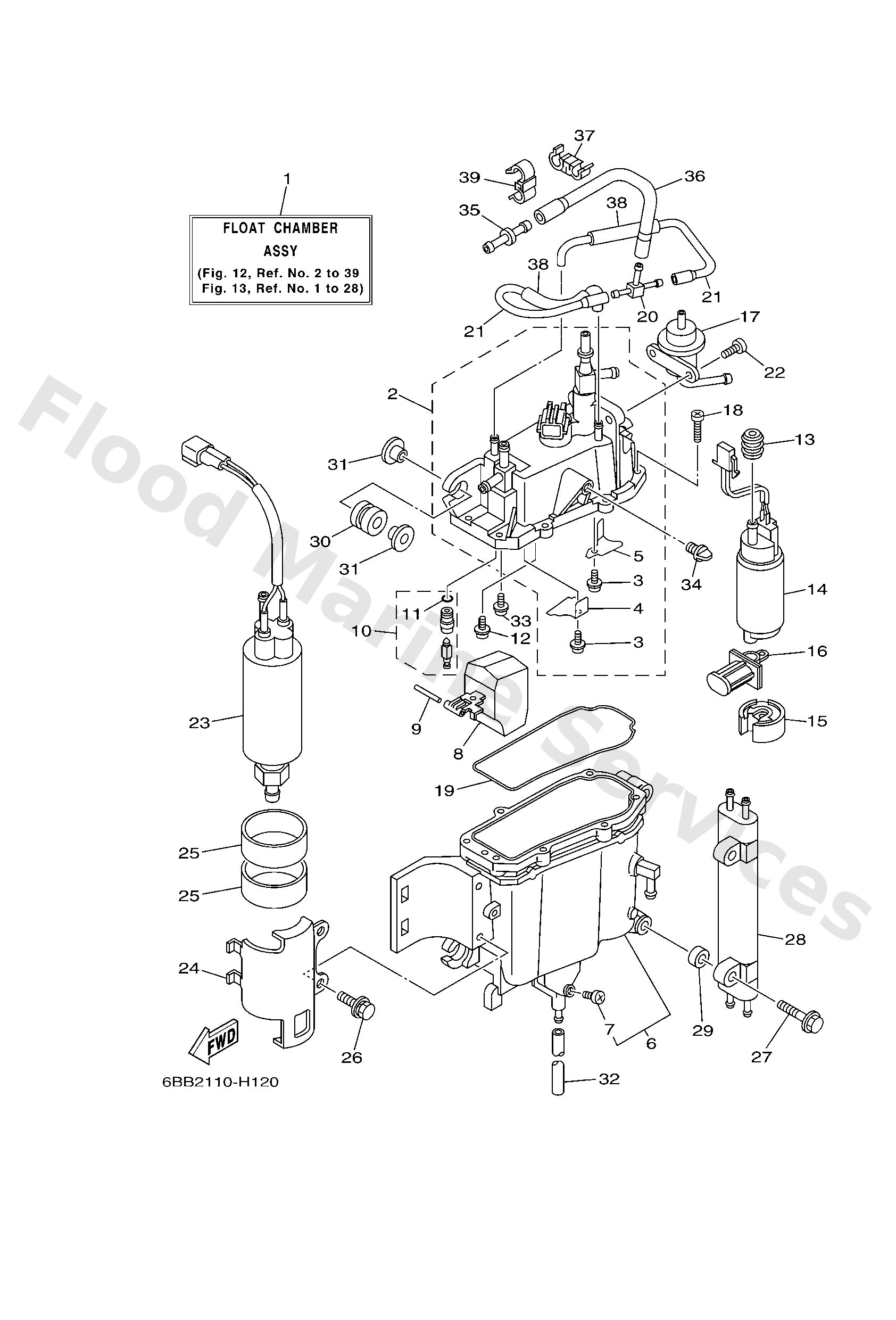

Diagram: FUEL INJECTION PUMP 1
Parts List
Float Chamber assembly
Diagram Reference: 1
Cover, float chamber
Diagram Reference: 2
Screw
Diagram Reference: 3
Plate 2
Diagram Reference: 4
Plate 1
Diagram Reference: 5
Body, Float Chamber 1
Diagram Reference: 6
Plug, Drain
Diagram Reference: 7
Float
Diagram Reference: 8
Pin, Float
Diagram Reference: 9
Valve, needle
Diagram Reference: 10
O-ring
Diagram Reference: 11
Grommet & collar set
Diagram Reference: 13
Fuel pump comp.
Diagram Reference: 14
Cover, Pump
Diagram Reference: 15
Filter
Diagram Reference: 16
Regulator, pressure
Diagram Reference: 17
Screw
Diagram Reference: 18
Gasket, float chamber
Diagram Reference: 19
Pipe, Joint 4
Diagram Reference: 20
Pipe
Diagram Reference: 21
Screw
Diagram Reference: 22
Bracket, fuel pump
Diagram Reference: 24
Bolt
Diagram Reference: 27
Cooler
Diagram Reference: 28
Collar
Diagram Reference: 29
Damper
Diagram Reference: 30
Collar
Diagram Reference: 31
Pipe
Diagram Reference: 32
Screw, Pan Head
Diagram Reference: 33
Cap
Diagram Reference: 34
Nipple 1
Diagram Reference: 35
Pipe
Diagram Reference: 36
Clamp 2
Diagram Reference: 37
Pipe 10
Diagram Reference: 38
Clamp 3
Diagram Reference: 39
