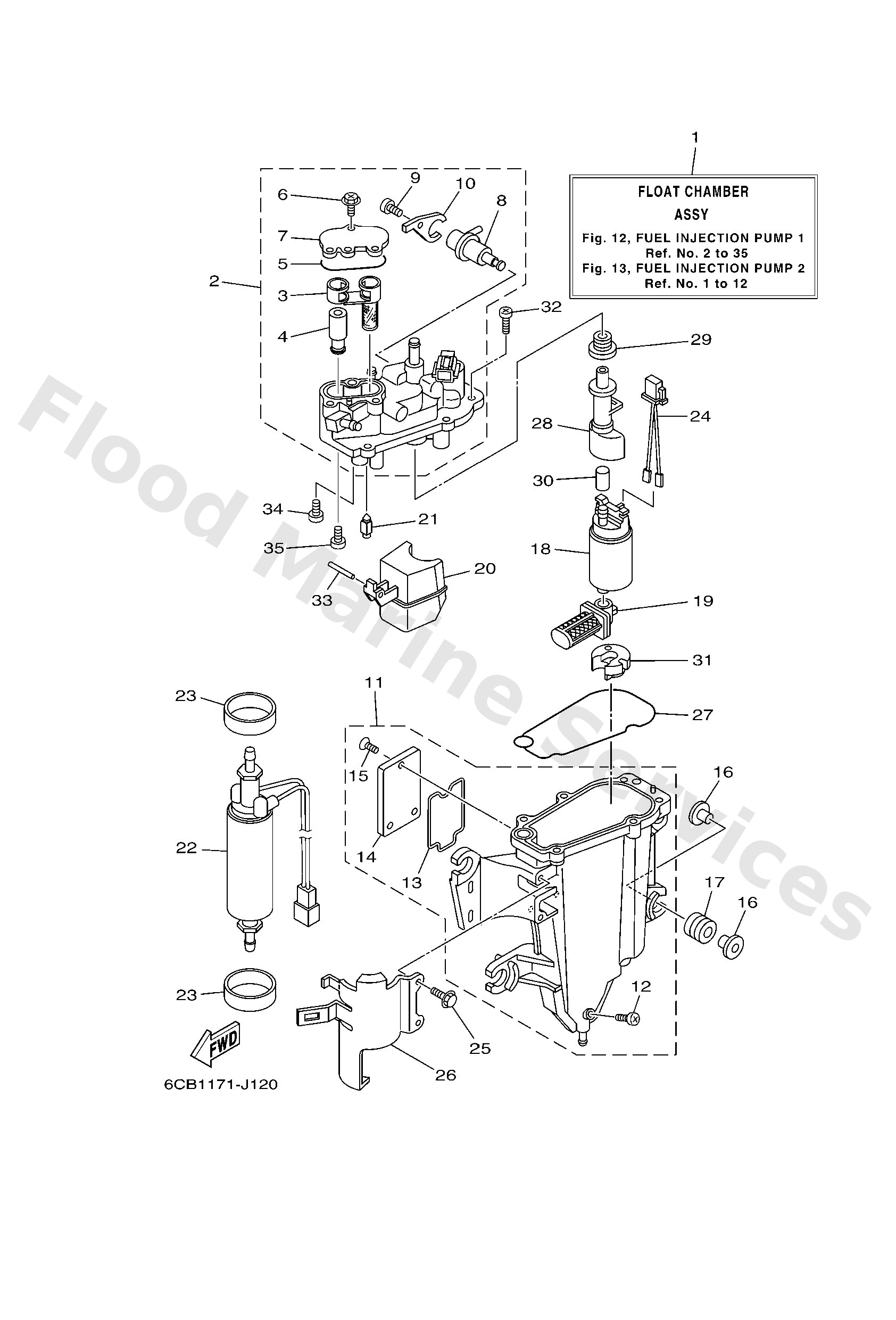

Diagram: FUEL INJECTION PUMP 1
Parts List
Float chamber assembly
Diagram Reference: 1
Cover, float chamber
Diagram Reference: 2
Filter, fuel
Diagram Reference: 3
Relief valve assembly
Diagram Reference: 4
O-ring
Diagram Reference: 5
Screw
Diagram Reference: 6
Cover
Diagram Reference: 7
Regulator, pressure
Diagram Reference: 8
Screw
Diagram Reference: 9
Plate
Diagram Reference: 10
Body, float chamber 1
Diagram Reference: 11
Plug, drain
Diagram Reference: 12
Seal
Diagram Reference: 13
Cover set
Diagram Reference: 14
Screw
Diagram Reference: 15
Collar
Diagram Reference: 16
Damper
Diagram Reference: 17
Fuel pump comp.
Diagram Reference: 18
Filter
Diagram Reference: 19
Float
Diagram Reference: 20
Valve, needle
Diagram Reference: 21
Fuel pump assembly
Diagram Reference: 22
Bush, fuel pump
Diagram Reference: 23
Wire 1
Diagram Reference: 24
Bolt
Diagram Reference: 25
Bracket, fuel pump
Diagram Reference: 26
Gasket, float chamber
Diagram Reference: 27
Joint
Diagram Reference: 28
Bush and joint set
Diagram Reference: 29
Damper, pump
Diagram Reference: 30
Cover, pump
Diagram Reference: 31
Screw
Diagram Reference: 32
Pin, float
Diagram Reference: 33
Screw
Diagram Reference: 34
Screw, pan head(jg1)
Diagram Reference: 35
