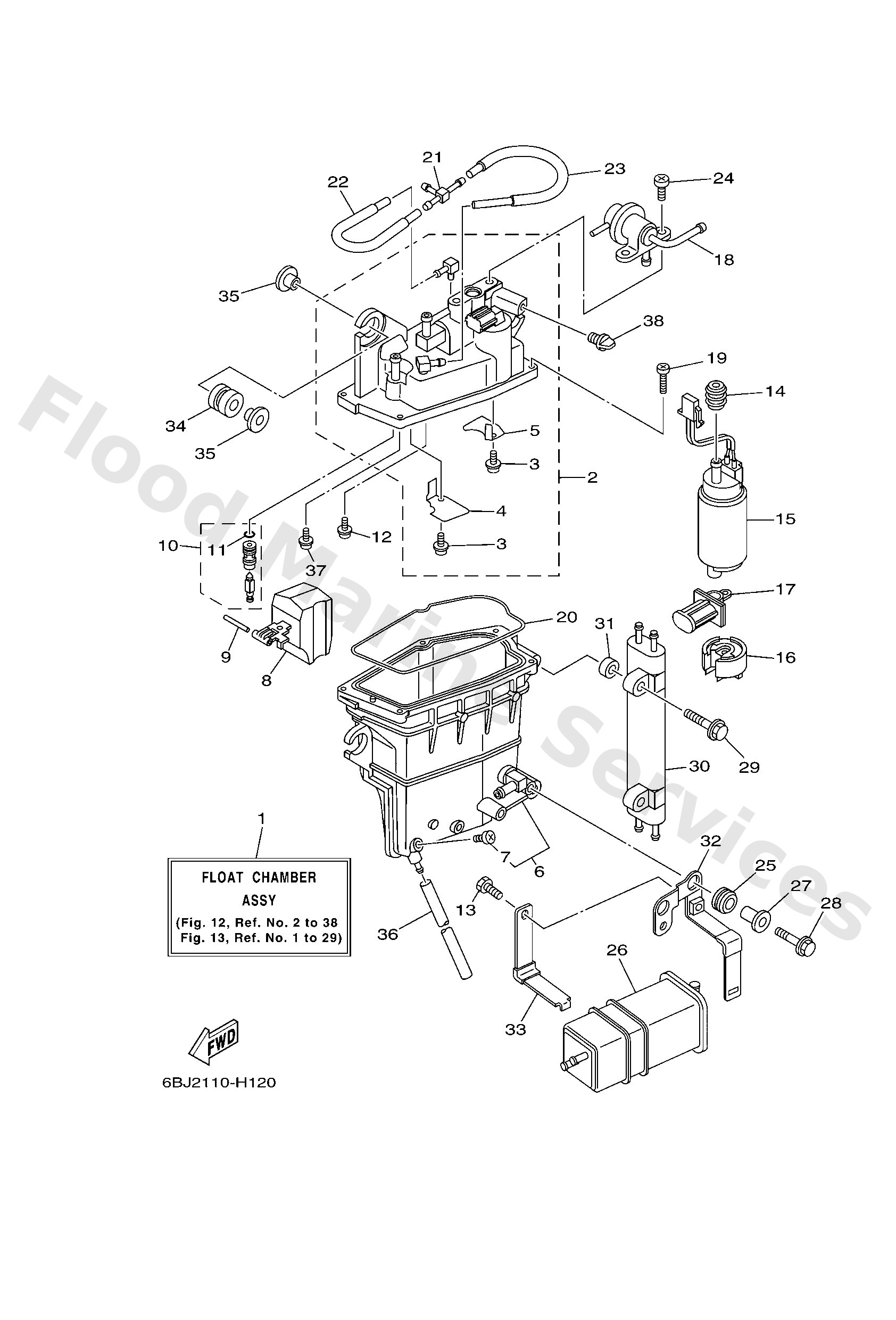

Diagram: FUEL INJECTION PUMP 1
Parts List
Float chamber assembly
Diagram Reference: 1
Cover, Float Chamber
Diagram Reference: 2
Screw
Diagram Reference: 3
Plate 2
Diagram Reference: 4
Body, float chamber 1
Diagram Reference: 6
Plug, drain
Diagram Reference: 7
Float
Diagram Reference: 8
Pin, float
Diagram Reference: 9
Valve, needle
Diagram Reference: 10
O-ring
Diagram Reference: 11
Bolt 2
Diagram Reference: 13
Grommet & collar set
Diagram Reference: 14
Fuel pump comp.
Diagram Reference: 15
Cover, pump
Diagram Reference: 16
Filter
Diagram Reference: 17
Regulator, pressure
Diagram Reference: 18
Screw
Diagram Reference: 19
Gasket, float chamber
Diagram Reference: 20
Pipe, joint 4
Diagram Reference: 21
Pipe 7
Diagram Reference: 22
Pipe 8
Diagram Reference: 23
Screw
Diagram Reference: 24
Grommet(6k7)
Diagram Reference: 25
Canister assembly
Diagram Reference: 26
Collar (6h3)
Diagram Reference: 27
Bolt, with washer
Diagram Reference: 28
Bolt
Diagram Reference: 29
Cooler
Diagram Reference: 30
Collar
Diagram Reference: 31
Holder
Diagram Reference: 33
Damper
Diagram Reference: 34
Collar
Diagram Reference: 35
Pipe
Diagram Reference: 36
Screw, pan head(jg1)
Diagram Reference: 37
Cap
Diagram Reference: 38
