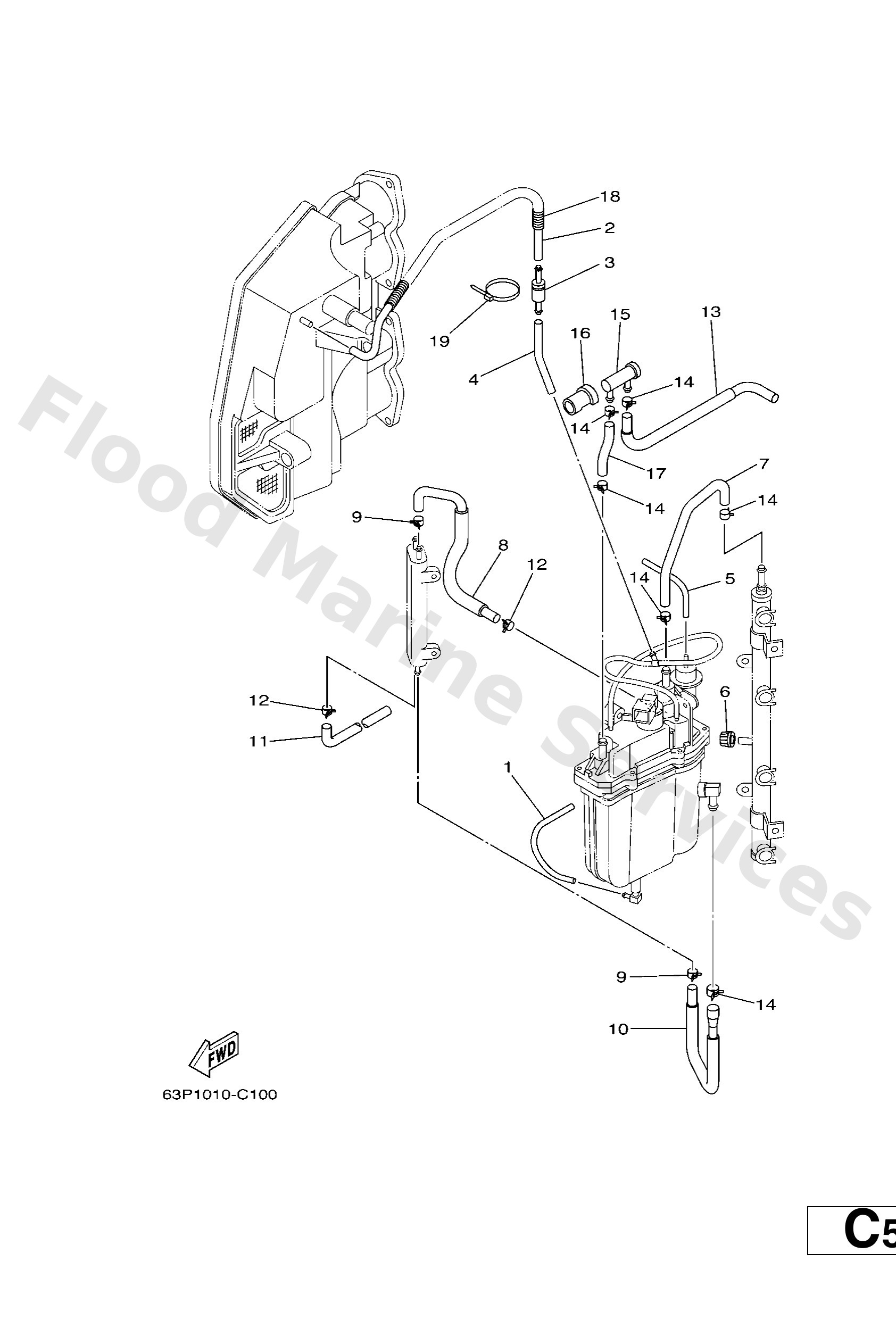

Diagram: FUEL INJECTION PUMP 2
Parts List
Pipe
Diagram Reference: 1
Pipe, Silencer
Diagram Reference: 2
Relief valve assembly
Diagram Reference: 3
Pipe
Diagram Reference: 4
Hose, vacuum sensing 3
Diagram Reference: 5
Pipe, fuel 4
Diagram Reference: 7
Pipe, fuel 6
Diagram Reference: 8
Clip
Diagram Reference: 9
Pipe 7
Diagram Reference: 10
Pipe 2
Diagram Reference: 11
Clip
Diagram Reference: 12
Pipe 14
Diagram Reference: 13
Clip
Diagram Reference: 14
Filter, fuel
Diagram Reference: 15
Pipe, fuel 5
Diagram Reference: 17
Cover 1
Diagram Reference: 18
Clamp
Diagram Reference: 19
