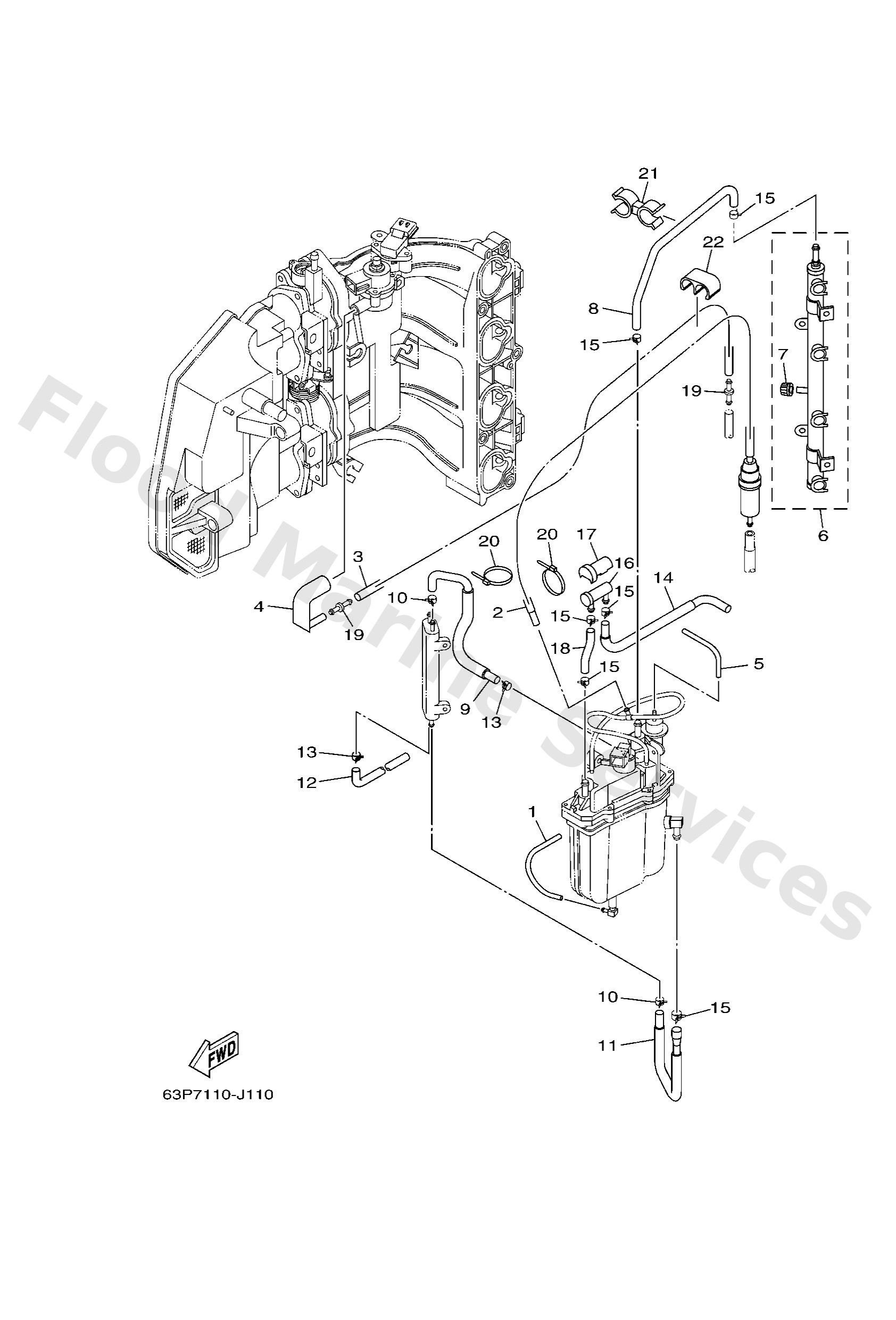

Diagram: FUEL INJECTION PUMP 2

Diagram

Parts List

63P1414900
Pipe
Diagram Reference: 1
Get Part
63P1397100
Pipe, fuel 1 (with filter)
Diagram Reference: 2
Get Part
63P1354600
Hose 2
Diagram Reference: 3
Get Part
63P1354500
Hose 1
Diagram Reference: 4
Get Part
63P1353210
Hose, vacuum sensing 3
Diagram Reference: 5
Get Part
63P1316000
Delivery pipe assembly 1
Diagram Reference: 6
Get Part
63P1422500
Cap
Diagram Reference: 7
Get Part
63P1397420
Pipe, fuel 4
Diagram Reference: 8
Get Part
63P1397600
Pipe, fuel 6
Diagram Reference: 9
Get Part
68V2411M00
Clip
Diagram Reference: 10
Get Part
63P2431700
Pipe 7
Diagram Reference: 11
Get Part
63P2247B00
Hose 2
Diagram Reference: 12
Get Part
68V2451900
Clip
Diagram Reference: 13
Get Part
63P2432500
Pipe 14
Diagram Reference: 14
Get Part
68V1357700
Clip
Diagram Reference: 15
Get Part
69J2450110
Filter, fuel
Diagram Reference: 16
Get Part
69J2459910
Cap
Diagram Reference: 17
Get Part
63P1397500
Pipe, fuel 5
Diagram Reference: 18
Get Part
6P21375800
Pipe, joint
Diagram Reference: 19
Get Part
68V2481H00
Clamp
Diagram Reference: 20
Get Part
63P2417H00
Clamp 1
Diagram Reference: 21
Get Part
63P2417J00
Clamp 2
Diagram Reference: 22
Get Part
