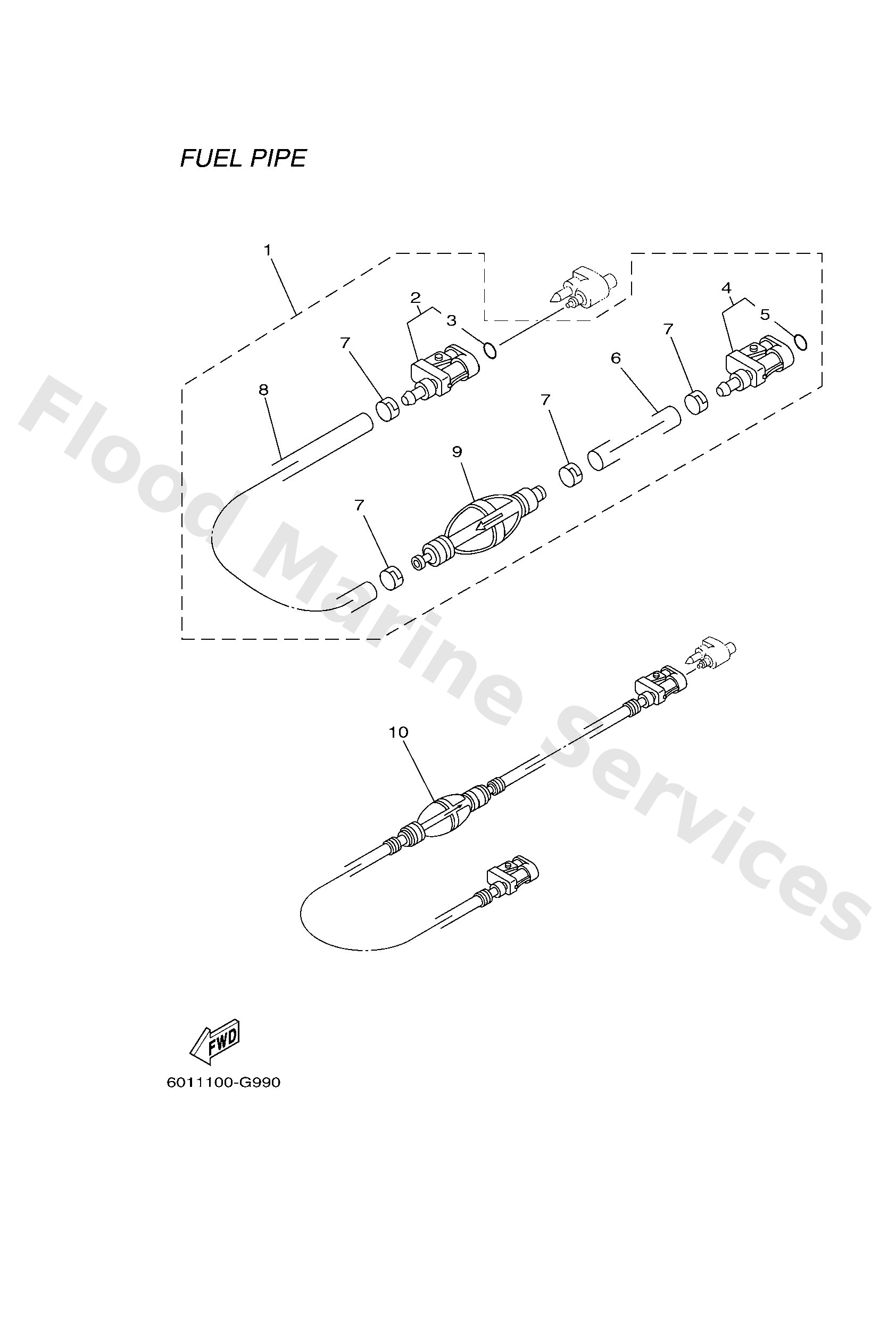

Diagram: FUEL PIPE

Diagram

Parts List

6Y22430656 (UR)

Fuel pipe comp. 1

Diagram Reference: 1

6Y12430655 (UR)

Fuel pipe comp. 1

Diagram Reference: 1

6G12430505 (FOR 6Y1-24306-55)

Fuel pipe joint comp. 2

Diagram Reference: 2

6E52430506 (FOR 6Y2-24306-56)

Fuel pipe joint comp. 2

Diagram Reference: 2

9321008287

O-ring (655)

Diagram Reference: 3

6Y12430506 (FOR 6Y1-24306-55)

Fuel pipe joint comp. 2

Diagram Reference: 4

6Y22430506 (FOR 6Y2-24306-56)

Fuel pipe joint comp. 2

Diagram Reference: 4

9044511M06 (FOR 6Y1-24306-55)

Hose (l3000)

Diagram Reference: 6

9044513M01 (FOR 6Y2-24306-56)

Hose (l2050)

Diagram Reference: 6

6502435151 (FOR 6Y1-24306-55)

Band 1

Diagram Reference: 7

6E52435151 (FOR 6Y2-24306-56)

Band 1

Diagram Reference: 7

9044511M05 (FOR 6Y1-24306-55)

Hose (l1000)

Diagram Reference: 8

9044513M00 (FOR 6Y2-24306-56)

Hose (l850)

Diagram Reference: 8

6Y12436052 (FOR 6Y1-24306-55)

Primer pump assembly

Diagram Reference: 9

6Y22436060 (FOR 6Y2-24306-56)

Primer pump assembly

Diagram Reference: 9

6YL2430654

Fuel pipe comp. 1

Diagram Reference: 10
