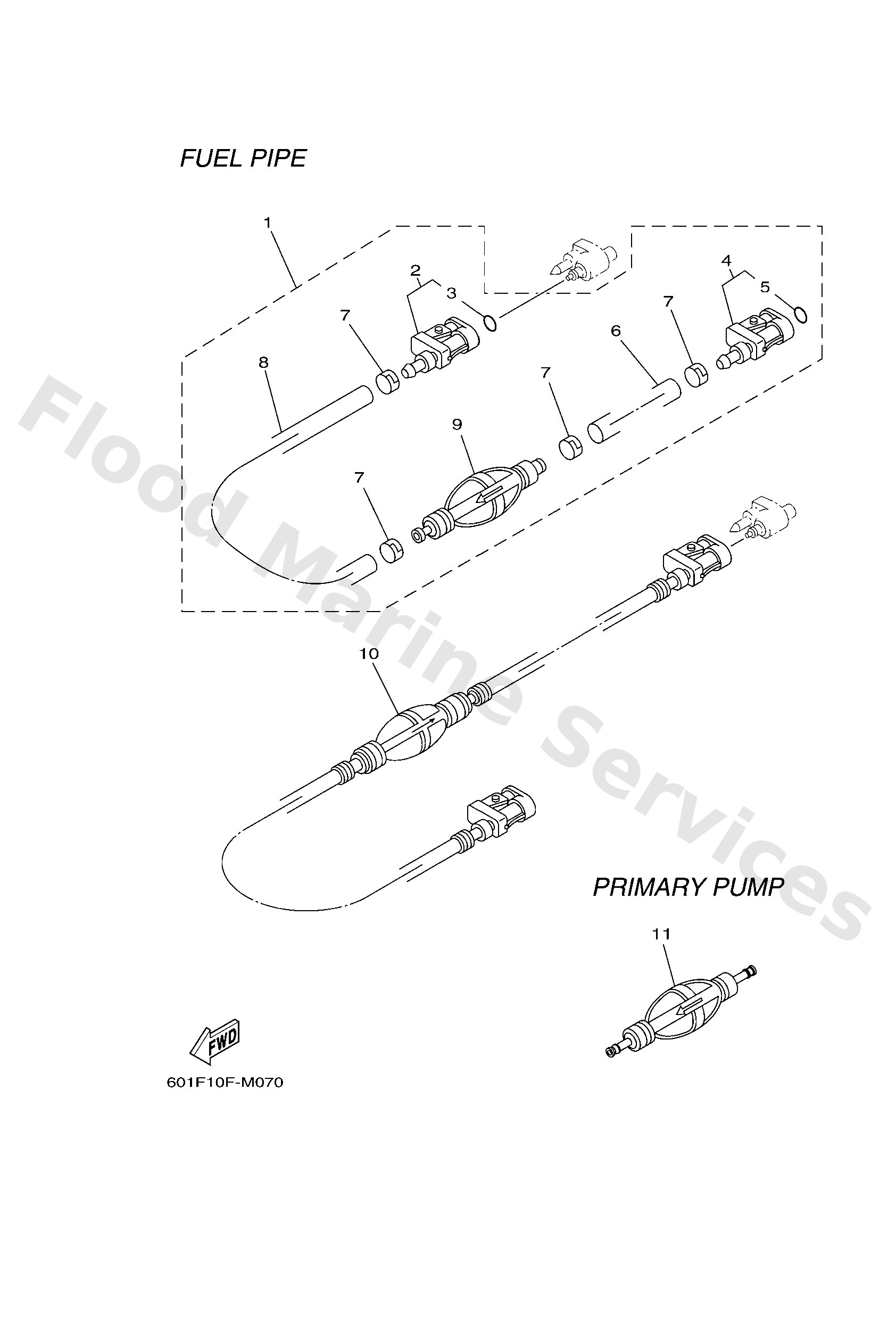

Diagram: FUEL PIPE
Parts List
Fuel pipe comp. 1
Diagram Reference: 1
Fuel pipe joint comp. 2
Diagram Reference: 2
O-ring (655)
Diagram Reference: 3
Fuel pipe joint comp. 2
Diagram Reference: 4
Hose (l3000)
Diagram Reference: 6
Band 1
Diagram Reference: 7
Hose (l1000)
Diagram Reference: 8
Primer pump assembly
Diagram Reference: 9
Fuel pipe comp. 1
Diagram Reference: 10
Fuel pipe comp. 1
Diagram Reference: 10
Primer pump assembly
Diagram Reference: 11
