Rigging - Fuel Tank (2024)
FUEL PIPE

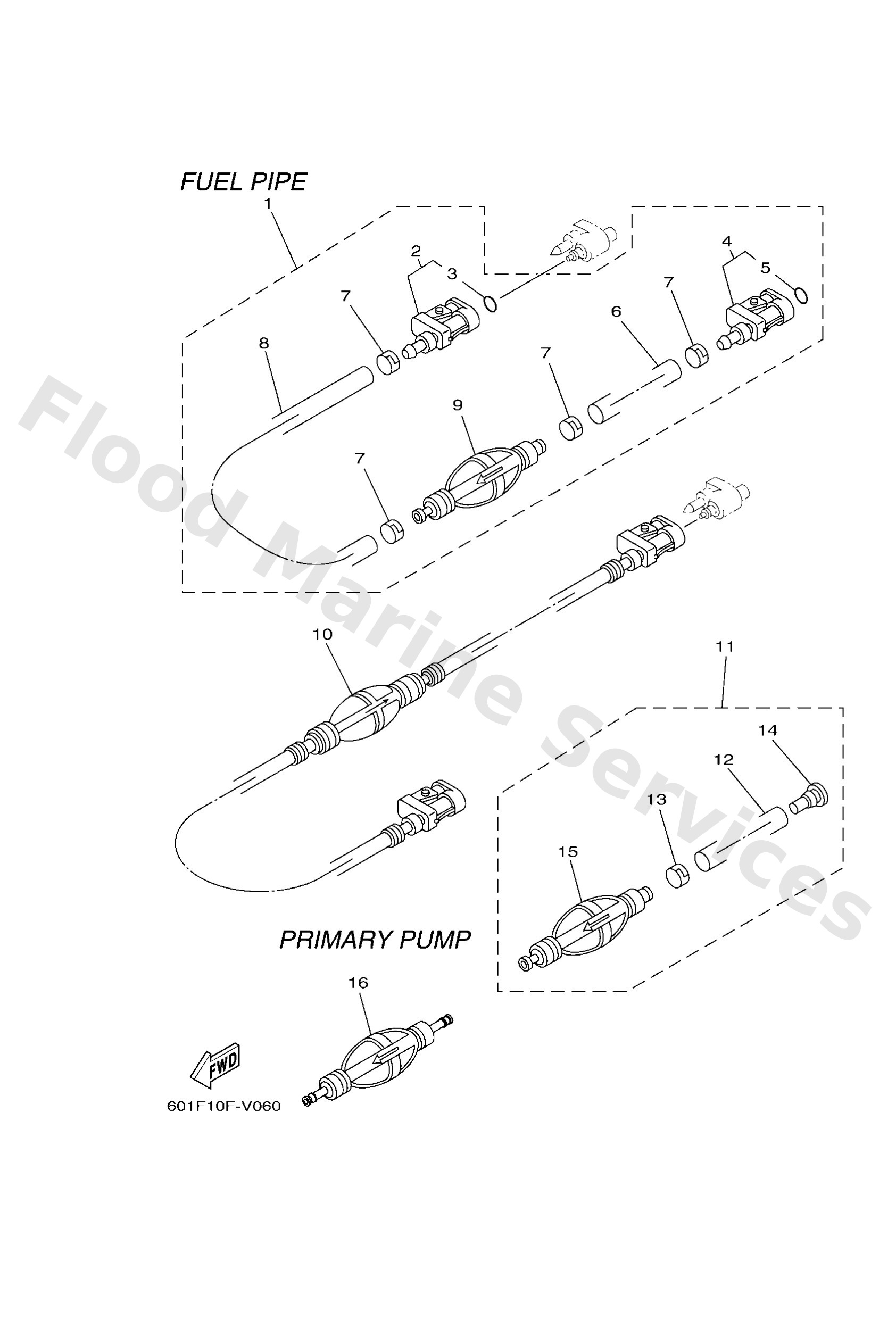

Diagram: FUEL PIPE
Parts List
Reference
Description
Price
1
61J2430605
UR
Fuel pipe comp. 1
Loading…
↗
1
6Y12430656
UR
Fuel pipe comp. 1
Loading…
↗
2
6G12430505
Fuel pipe joint comp. 2
Loading…
↗
3
9321008287
O-ring (655)
Loading…
↗
4
6Y12430506
Fuel pipe joint comp. 2
Loading…
↗
6
9044511M58
Hose (L2050)
Loading…
↗
7
6502435151
Band 1
Loading…
↗
8
9044511M57
Hose (L850)
Loading…
↗
9
6Y12436052
FOR 6Y1-24306-56
Primer pump assembly
Loading…
↗
9
61J2436000
FOR 61J-24306-05
Primer pump assembly
Loading…
↗
10
6YK2430664
Fuel pipe comp. 1
Loading…
↗
11
6Y22430752
Fuel pipe comp. 2
Loading…
↗
12
9044513M25
Hose (l2050)
Loading…
↗
13
6E52435151
Band 1
Loading…
↗
14
9048006M19
Grommet (6e3)
Loading…
↗
15
6Y22436060
Primer pump assembly
Loading…
↗
16
6YL2436051
UR
-
Loading…
↗
16
6YK2436073
UR
Primer pump assembly
Loading…
↗
