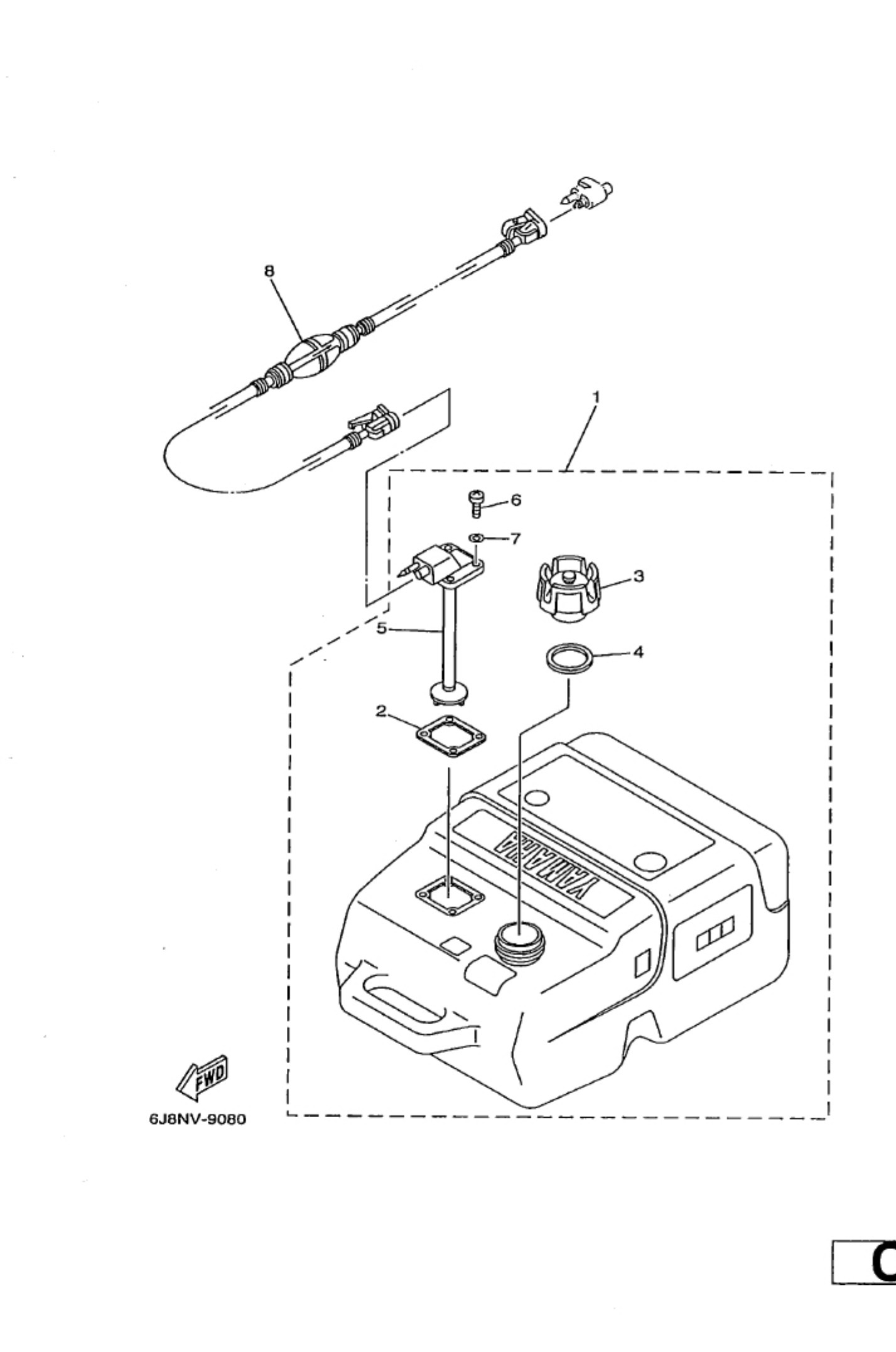

Diagram: FUEL TANK

Diagram

Parts List

6YK2420101

Fuel Tank assembly

Diagram Reference: 1

6YL2426801 (LIRR)

Gasket, fuel meter

Diagram Reference: 2

6YK2461000

Cap assembly

Diagram Reference: 3

6YL2464100 (LIRIRIE])

Gasket, cap 1

Diagram Reference: 4

6YK2426001 (URIBE)

Fuel meter assembly

Diagram Reference: 5

9015705M16 (4| 4f 4f 4)

Screw, pan head

Diagram Reference: 6

6YL2432900 (4( 4| 4] 4)

Seal

Diagram Reference: 7

6YL2430650 (Hot)

Fuel pipe comp. 1

Diagram Reference: 8
