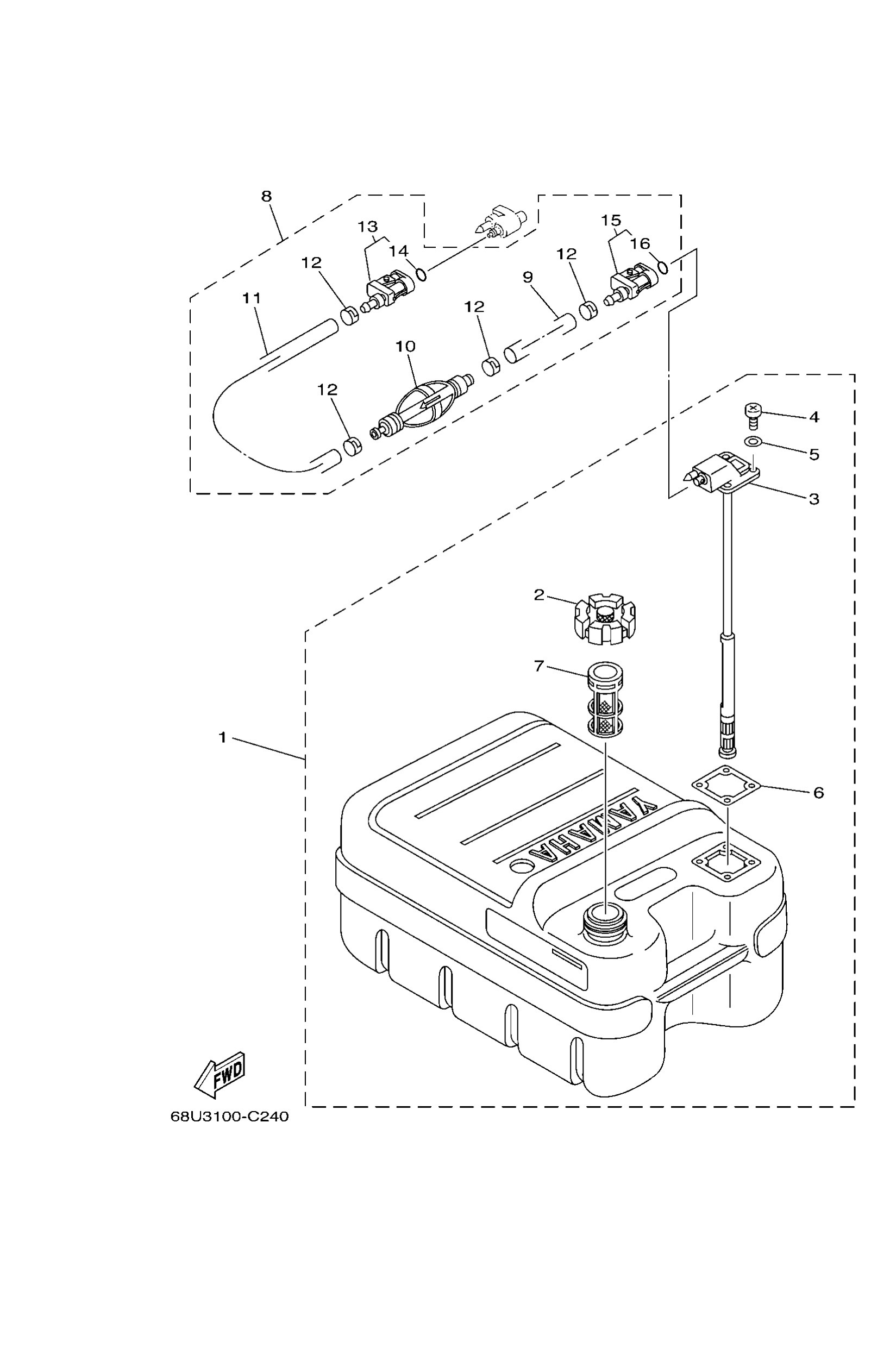

Diagram: FUEL TANK
Parts List
Fuel tank assembly
Diagram Reference: 1
Fuel tank comp.
Diagram Reference: 1
Cap assembly
Diagram Reference: 2
Fuel meter assembly
Diagram Reference: 3
Fuel meter assembly
Diagram Reference: 3
Screw, pan head
Diagram Reference: 4
Seal
Diagram Reference: 5
Gasket, fuel meter
Diagram Reference: 6
Strainer
Diagram Reference: 7
Fuel pipe comp. 1
Diagram Reference: 8
Primer pump assembly
Diagram Reference: 10
Band 1
Diagram Reference: 12
Fuel pipe joint comp. 2
Diagram Reference: 13
O-ring (655)
Diagram Reference: 14
Fuel pipe joint comp. 2
Diagram Reference: 15
