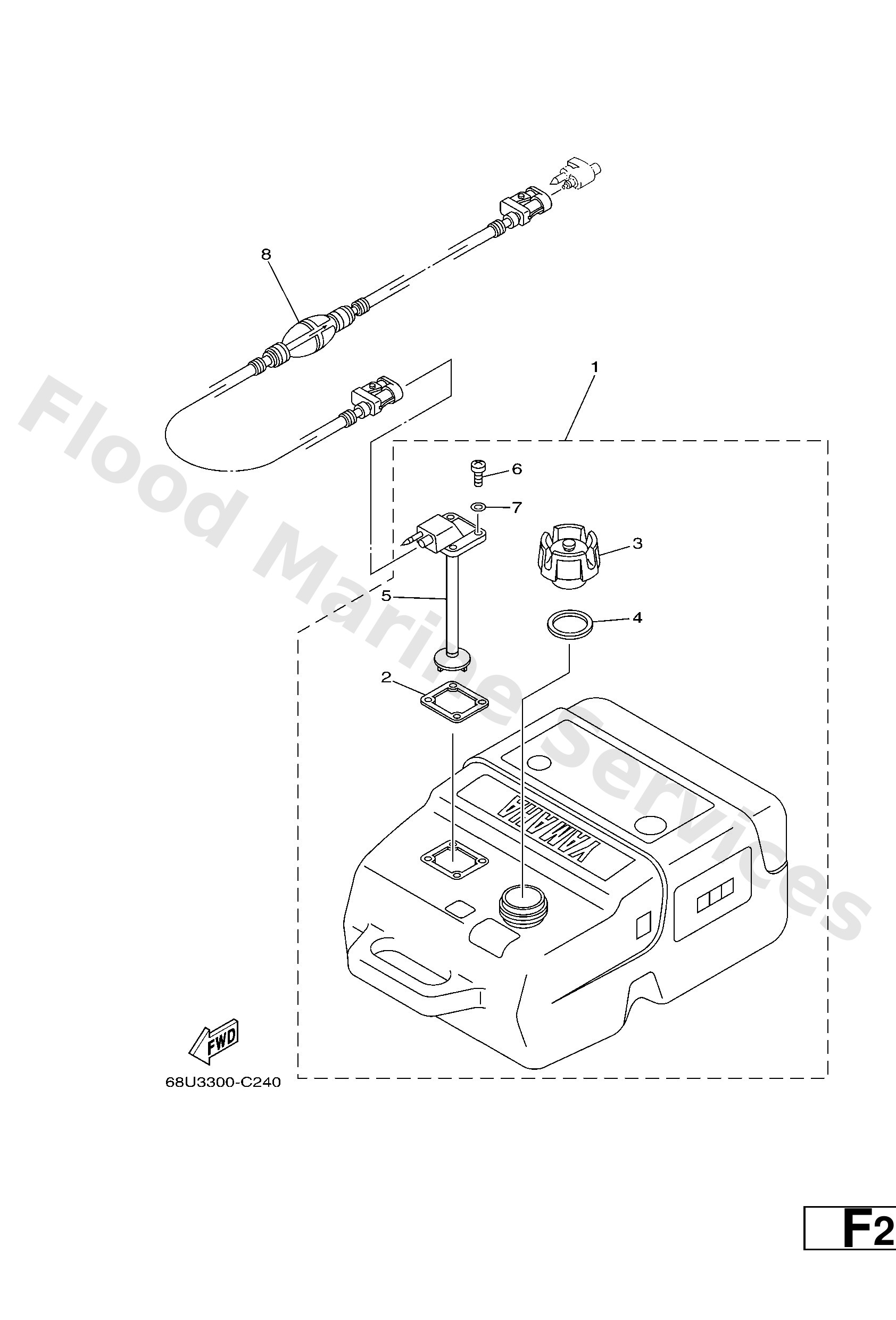

Diagram: FUEL TANK

Diagram

Parts List

6YK2420101 (AP)
Fuel Tank assembly
Diagram Reference: 1
Get Part
6YL2426801
Gasket, fuel meter
Diagram Reference: 2
Get Part
6YK2461000 (WITH INDICATOR)
Cap assembly
Diagram Reference: 3
Get Part
6YL2464100
Gasket, cap 1
Diagram Reference: 4
Get Part
6YK2426001
Fuel meter assembly
Diagram Reference: 5
Get Part
9015705M16
Screw, pan head
Diagram Reference: 6
Get Part
6YL2432900
Seal
Diagram Reference: 7
Get Part
6YL2430653 (AP)
Fuel pipe comp. 1
Diagram Reference: 8
Get Part
