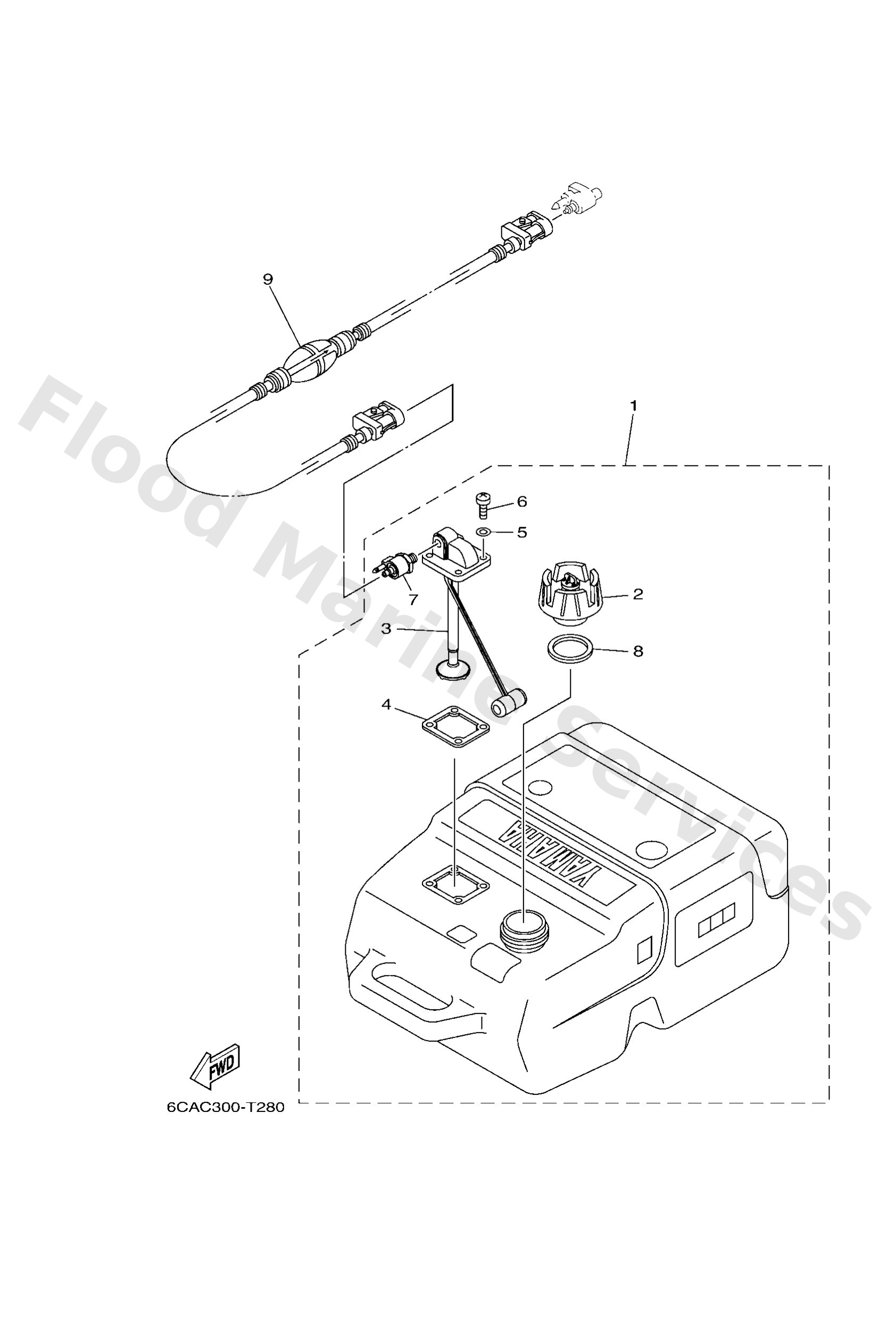

Diagram: FUEL TANK
Parts List
Fuel tank comp.
Diagram Reference: 1
Cap assembly
Diagram Reference: 2
Fuel meter assembly
Diagram Reference: 3
Gasket, fuel meter
Diagram Reference: 4
Seal
Diagram Reference: 5
Screw, pan head
Diagram Reference: 6
Pipe, Joint 2
Diagram Reference: 7
Gasket, cap 1
Diagram Reference: 8
Fuel pipe comp. 1
Diagram Reference: 9
