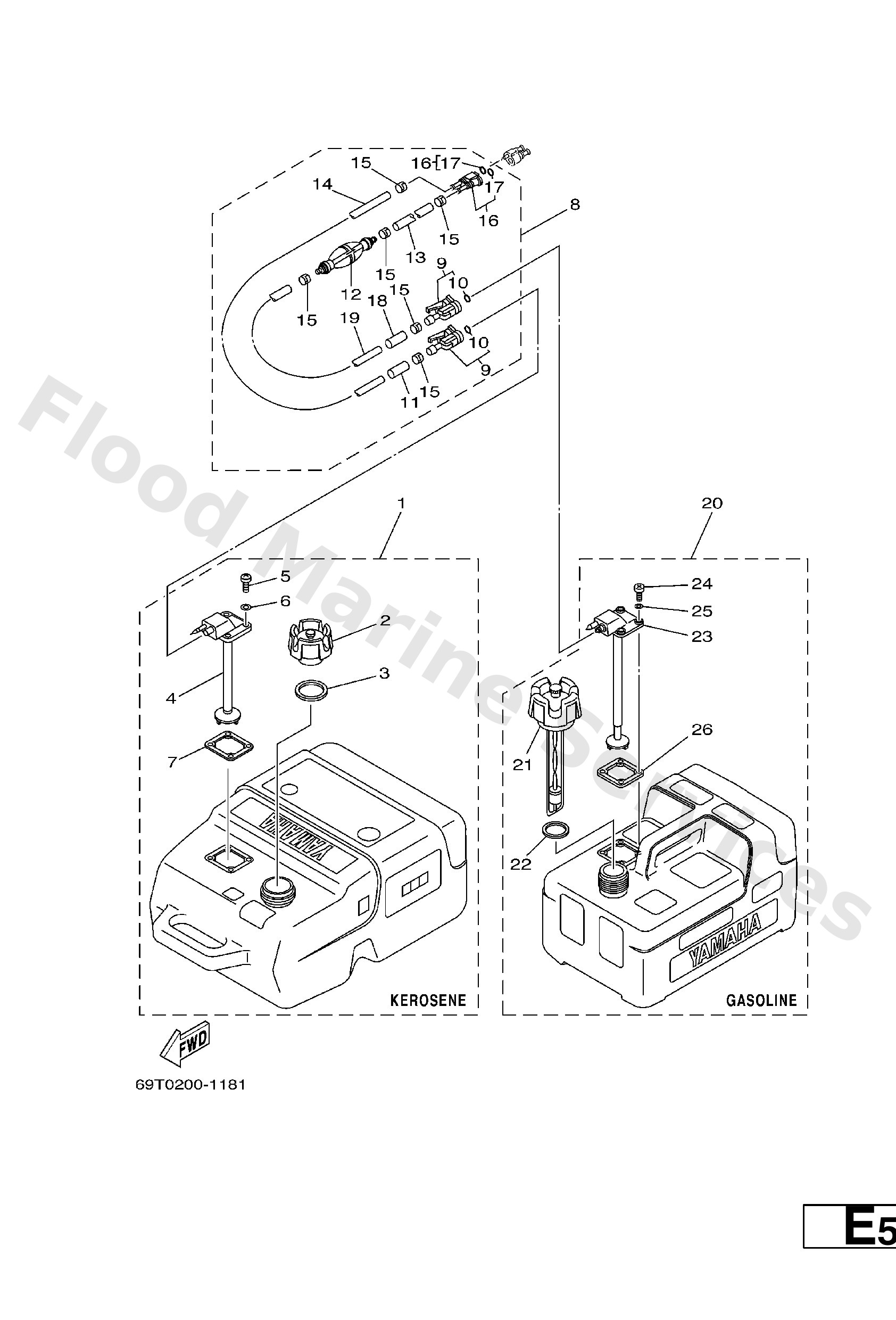

Diagram: FUEL TANK

Diagram

Parts List

6YK−24201−20 (AP KEROSENE)
Fuel Tank assembly (25L,Kerosene)
Diagram Reference: 1
Get Part
6YK−24610−10 (WITHOUT INDICATOR)
Cap assembly
Diagram Reference: 2
Get Part
6YL−24641−00
Gasket, Cap 1
Diagram Reference: 3
Get Part
6YK−24260−01
Fuel Meter Assy
Diagram Reference: 4
Get Part
90157−05M16
Screw, Pan Head
Diagram Reference: 5
Get Part
6YL−24329−00
Seal
Diagram Reference: 6
Get Part
6YL−24268−01
Gasket, Fuel Meter
Diagram Reference: 7
Get Part
6YK−24306−02 (AP)
Fuel Pipe Comp. 1
Diagram Reference: 8
Get Part
6Y1−24305−04
Fuel pipe joint comp. 2
Diagram Reference: 9
Get Part
93210−08287
O−Ring
Diagram Reference: 10
Get Part
6Y1−24397−10
Collar
Diagram Reference: 11
Get Part
61J−24360−00
Primer pump assembly
Diagram Reference: 12
Get Part
90445−11M05
Hose (l1000)
Diagram Reference: 13
Get Part
90445−11M81
Hose (l3000)
Diagram Reference: 14
Get Part
650−24351−01
Band 1
Diagram Reference: 15
Get Part
680−24305−01
Fuel pipe joint comp. 2
Diagram Reference: 16
Get Part
6Y1−24397−00
Collar
Diagram Reference: 18
Get Part
90445−11M06
Hose (l3000)
Diagram Reference: 19
Get Part
6YL−24201−02 (AP GASOLINE)
Fuel Tank Assy
Diagram Reference: 20
Get Part
6YL−24610−00
Cap Assy
Diagram Reference: 21
Get Part
6YL−24260−01
Fuel Meter Assy
Diagram Reference: 23
Get Part
