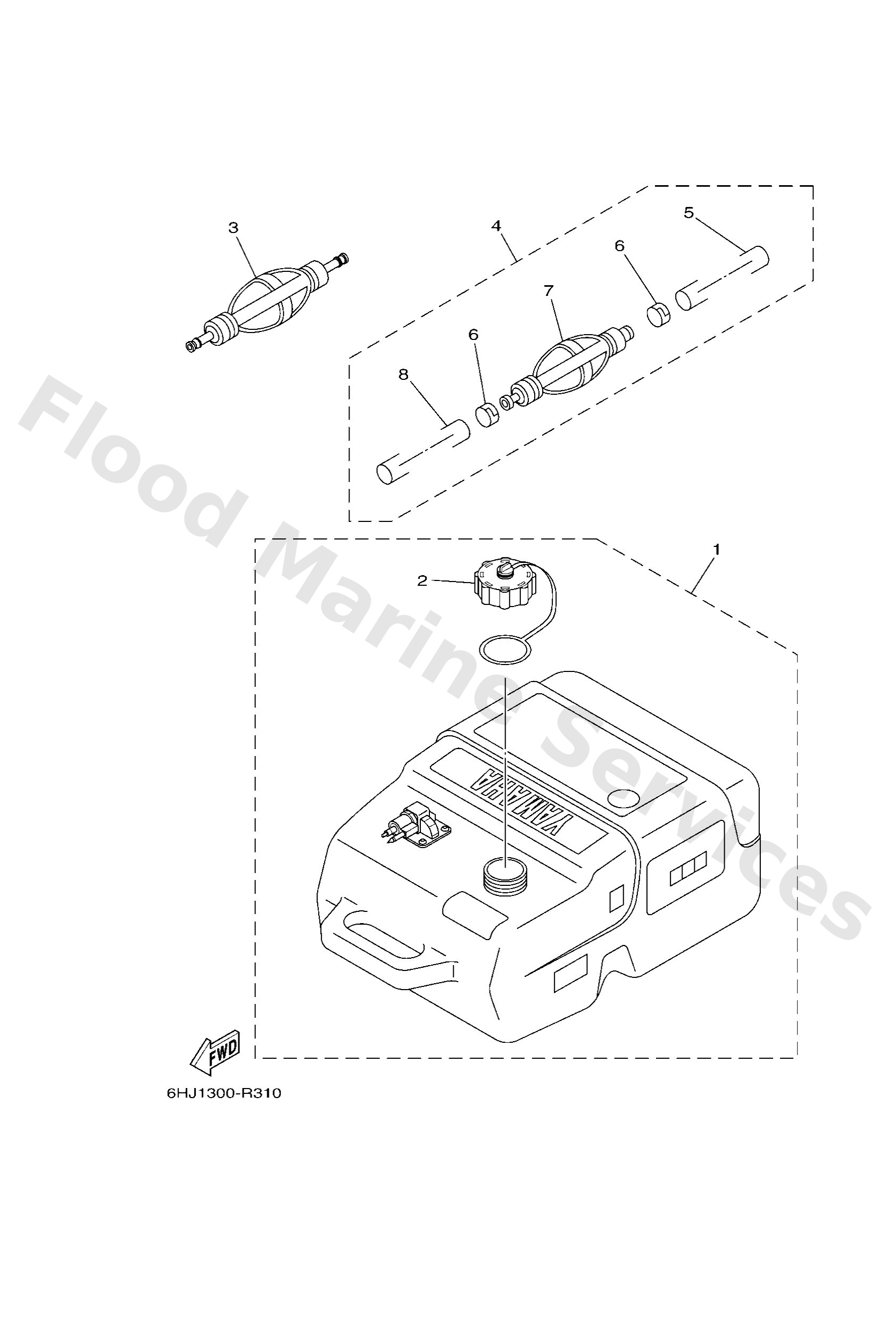

Diagram: FUEL TANK

Diagram

Parts List

6YK2420144 (AP EXCEPT FOR RUS)

Fuel tank assembly (25l)

Diagram Reference: 1

6YL2461010

Cap assembly

Diagram Reference: 2

6YK2436073 (AP EXCEPT FOR RUS)

Primer pump assembly

Diagram Reference: 3

6Y22430760 (AP FOR RUS)

Fuel Pipe Comp. 2

Diagram Reference: 4

9044513M01

Hose (l2050)

Diagram Reference: 5

6E52435151

Band 1

Diagram Reference: 6

6Y22436060

Primer pump assembly

Diagram Reference: 7

9044513M06

Hose (l1500)

Diagram Reference: 8
