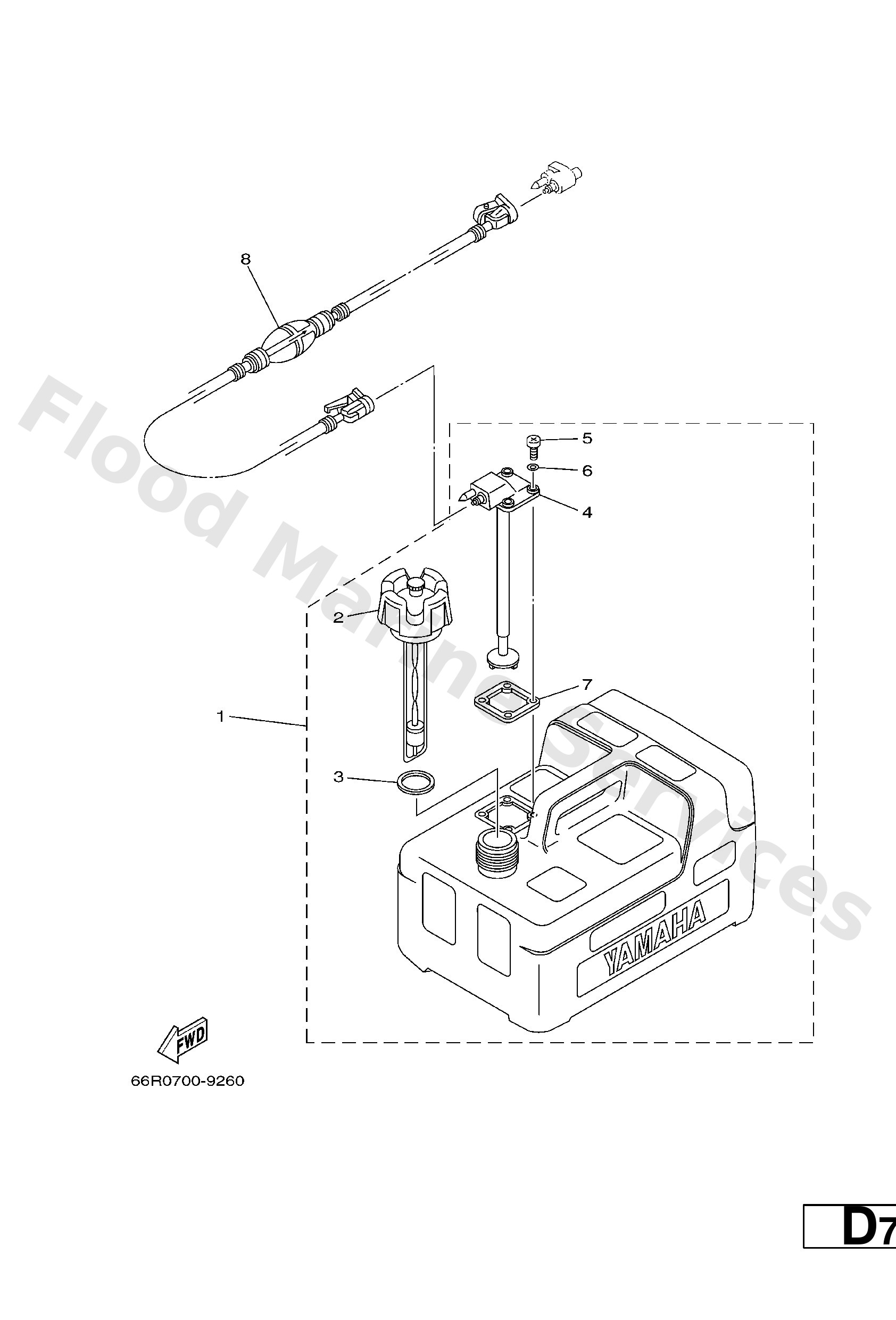

Diagram: FUEL TANK

Diagram

Parts List

6YL−F4201−02 (AP FOR CANADA)

19 −

Diagram Reference: 1

6YL−F4610−00

Cap assembly

Diagram Reference: 2

6YL−F4641−00

Gasket, cap 1

Diagram Reference: 3

6YL−F4260−01

Fuel meter assembly

Diagram Reference: 4

90157−05811

Screw, pan head

Diagram Reference: 5

6YL−F4329−00

Seal

Diagram Reference: 6

6YL−F4268−01

Gasket, fuel meter

Diagram Reference: 7

6YL−24306−52 (AP FOR CANADA)

Fuel pipe comp. 1

Diagram Reference: 8
