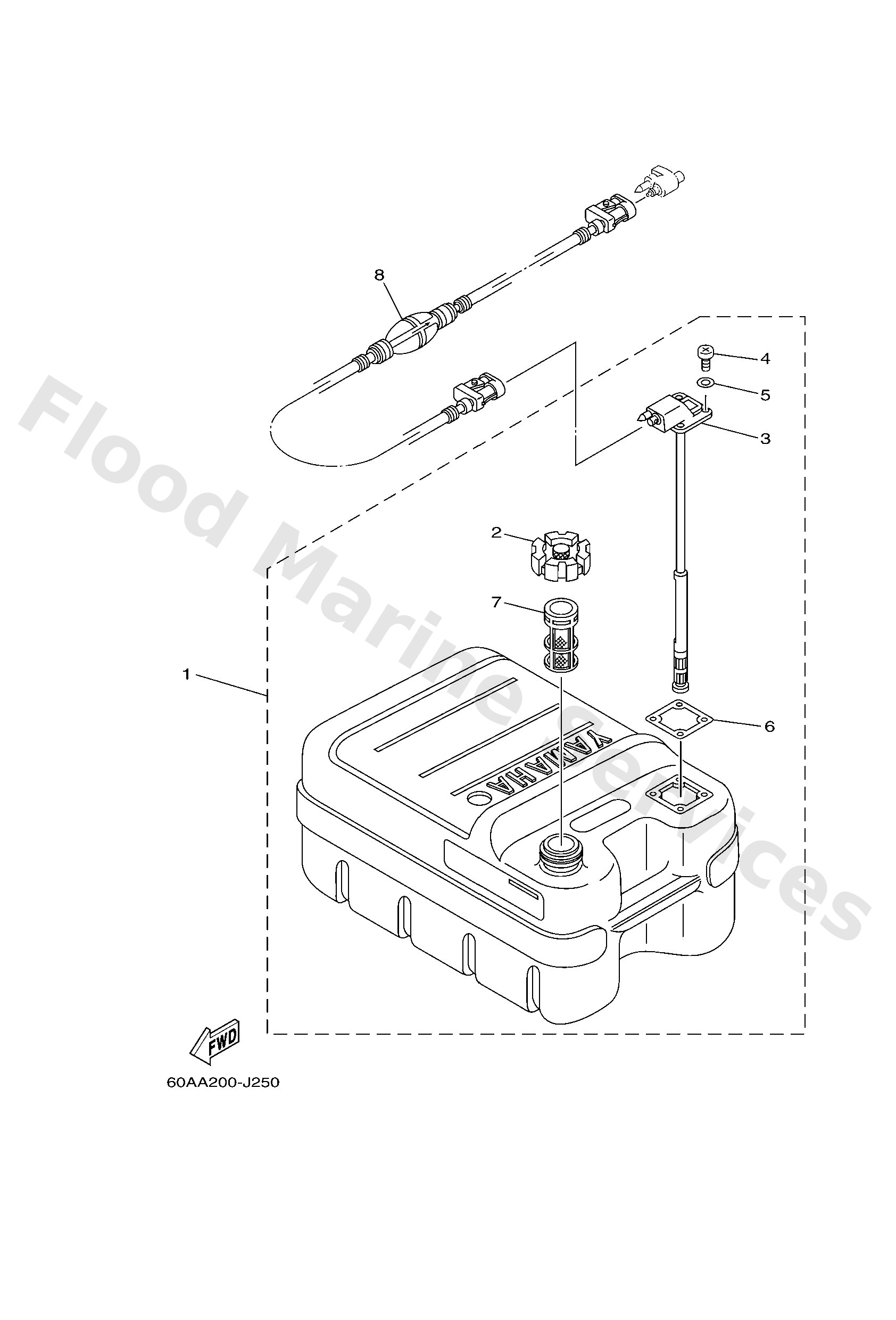

Diagram: FUEL TANK
Parts List
Fuel Tank assembly (24L)
Diagram Reference: 1
Cap assembly
Diagram Reference: 2
Fuel meter assembly
Diagram Reference: 3
Screw, pan head
Diagram Reference: 4
Seal
Diagram Reference: 5
Gasket, fuel meter
Diagram Reference: 6
Strainer
Diagram Reference: 7
Fuel pipe comp. 1
Diagram Reference: 8
