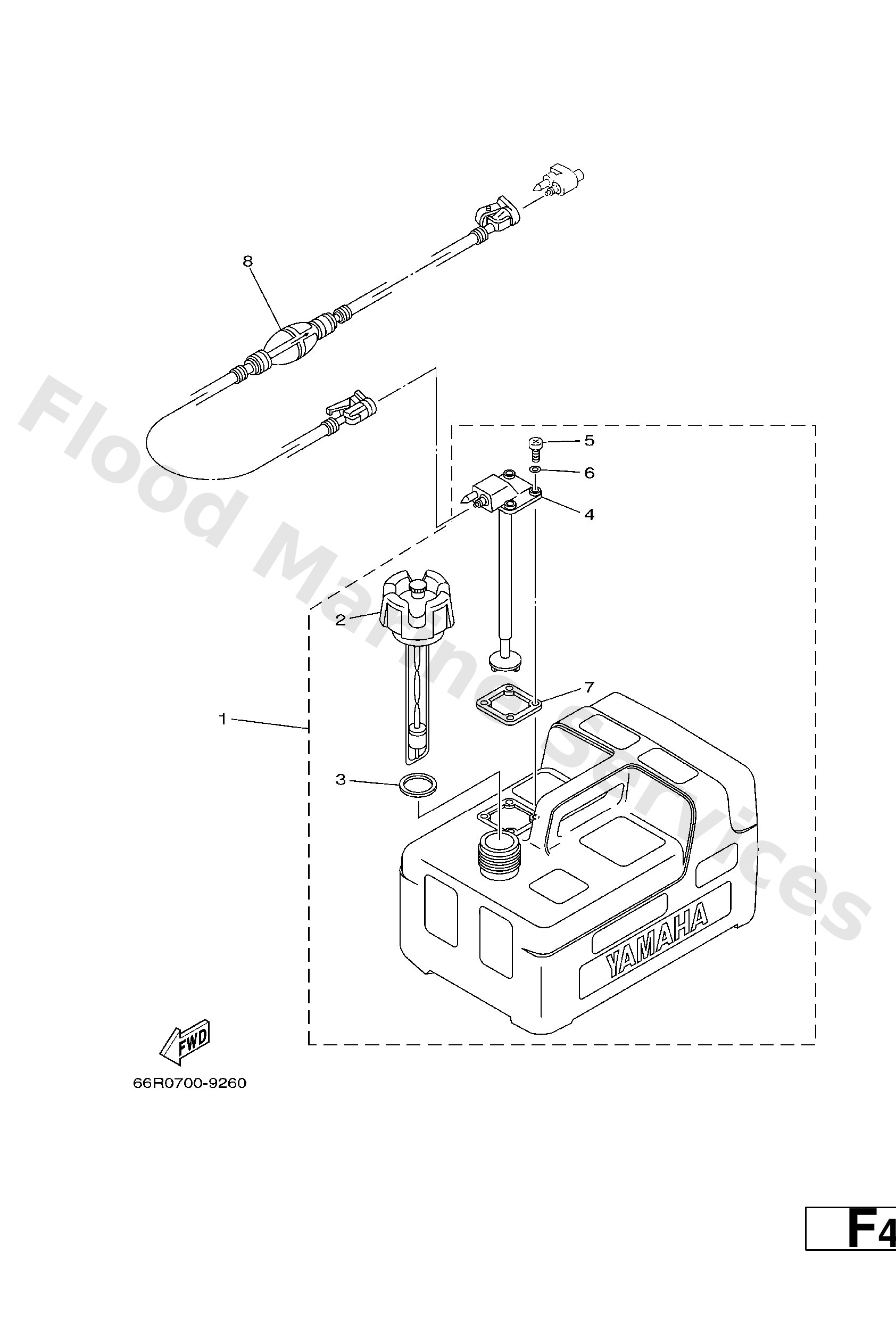

Diagram: FUEL TANK

Diagram

Parts List

6YL−24201−02 (AP)

Fuel Tank Assy

Diagram Reference: 1

6YL−24610−00

Cap Assy

Diagram Reference: 2

6YL−24641−00

Gasket, Cap 1

Diagram Reference: 3

6YL−24260−01

Fuel Meter Assy

Diagram Reference: 4

90157−05M16

Screw, Pan Head

Diagram Reference: 5

6YL−24329−00

Seal

Diagram Reference: 6

6YL−24268−01

Gasket, Fuel Meter

Diagram Reference: 7

6YL−24306−52 (AP)

Fuel Pipe Comp. 1

Diagram Reference: 8
