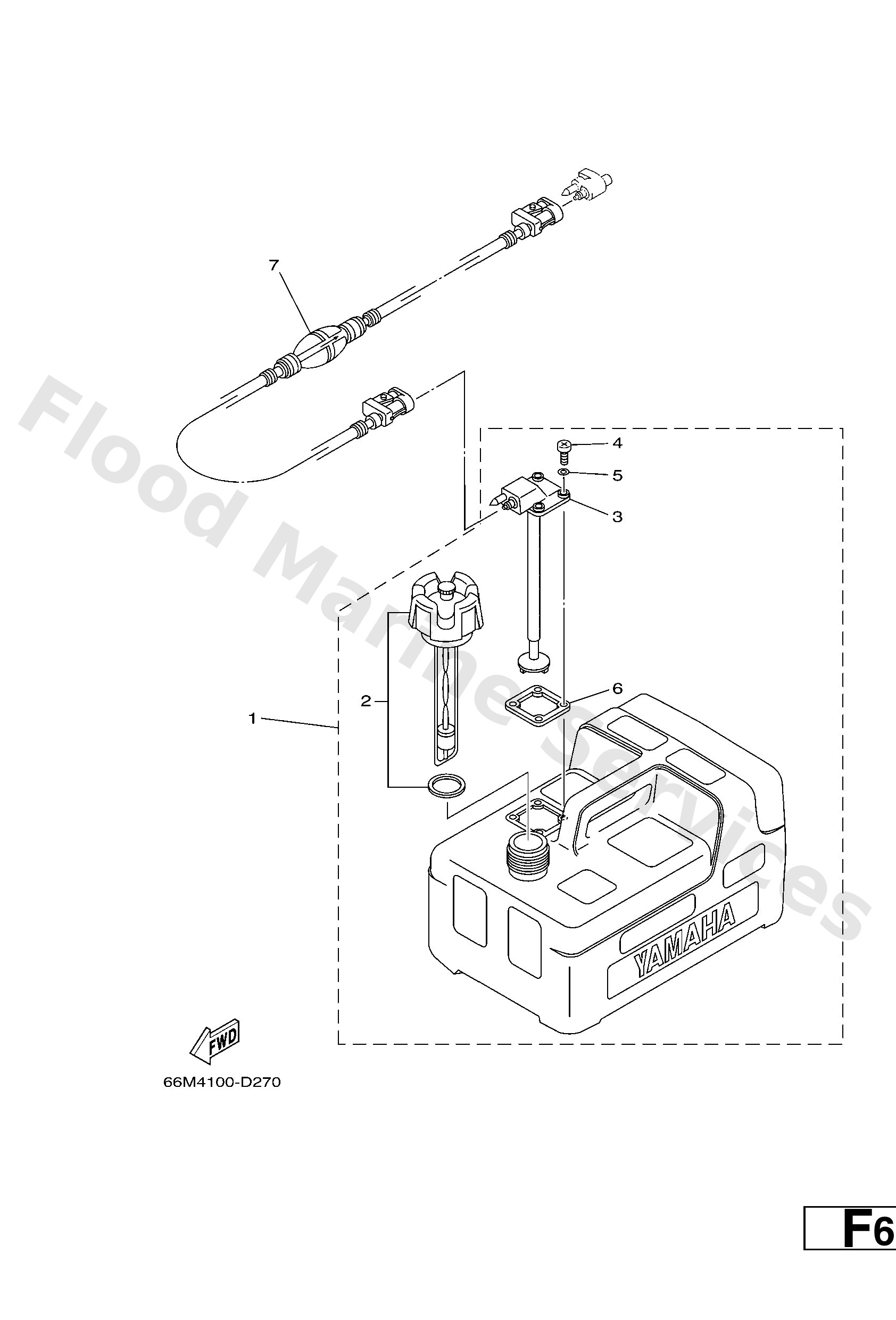

Diagram: FUEL TANK

Diagram

Parts List

6YL2420104 (AP)

-

Diagram Reference: 1

6YL2461001

Cap Assy

Diagram Reference: 2

6YL2426001

Fuel Meter Assy

Diagram Reference: 3

9015705M16

30

Diagram Reference: 4

6YL2432900

Seal

Diagram Reference: 5

6YL2426801

Gasket, Fuel Meter

Diagram Reference: 6

6YL2430653 (AP)

Fuel pipe comp. 1

Diagram Reference: 7
