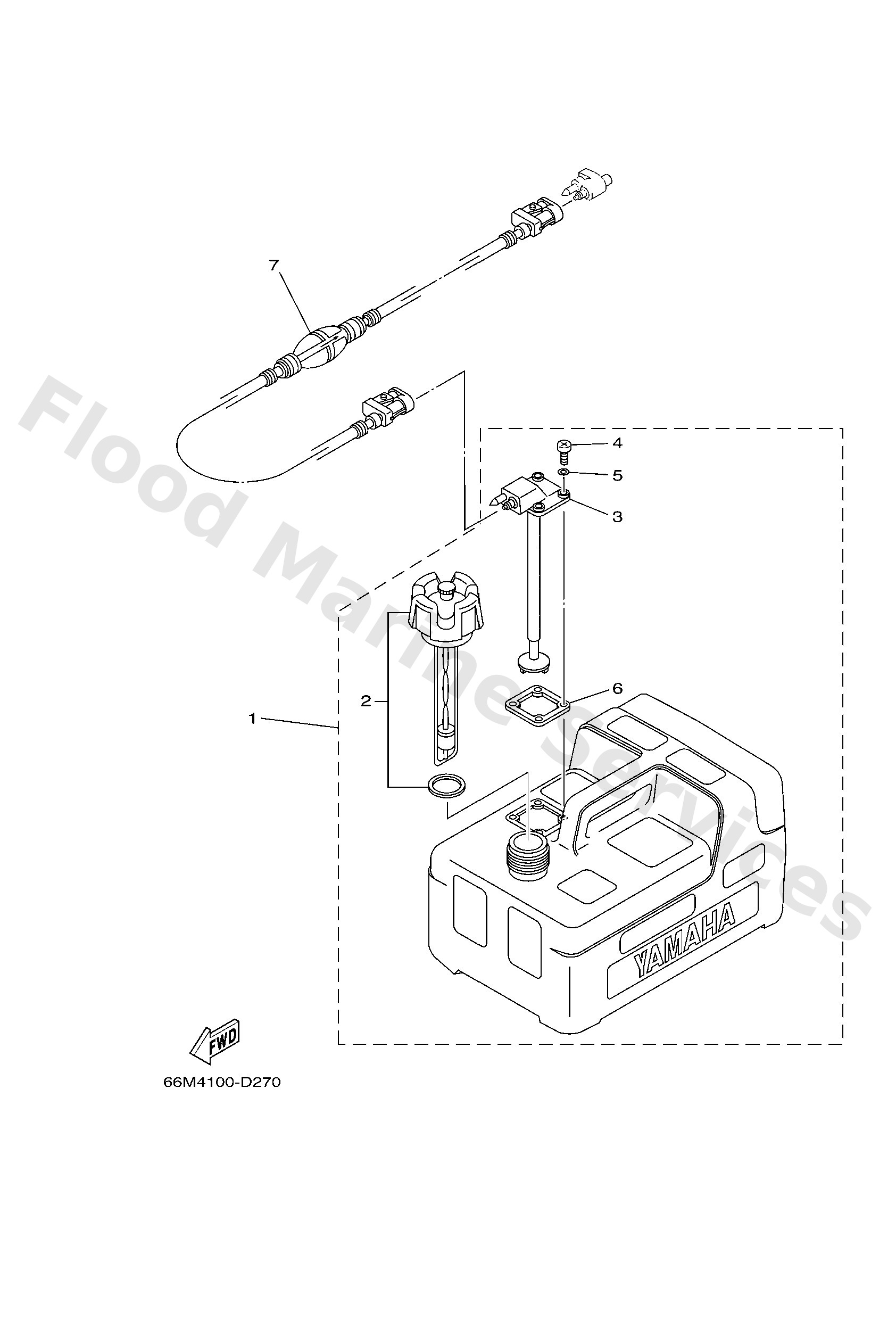

Diagram: FUEL TANK

Diagram

Parts List

6YL2420105 (AP)
Fuel Tank Assy (12L)
Diagram Reference: 1
Get Part
6YL2461001
Cap Assy
Diagram Reference: 2
Get Part
6YL2426001
Fuel Meter Assy
Diagram Reference: 3
Get Part
9015705M16
30
Diagram Reference: 4
Get Part
6YL2432900
Seal
Diagram Reference: 5
Get Part
6YL2426801
Gasket, Fuel Meter
Diagram Reference: 6
Get Part
6YL2430654 (AP)
Fuel Pipe Comp. 1
Diagram Reference: 7
