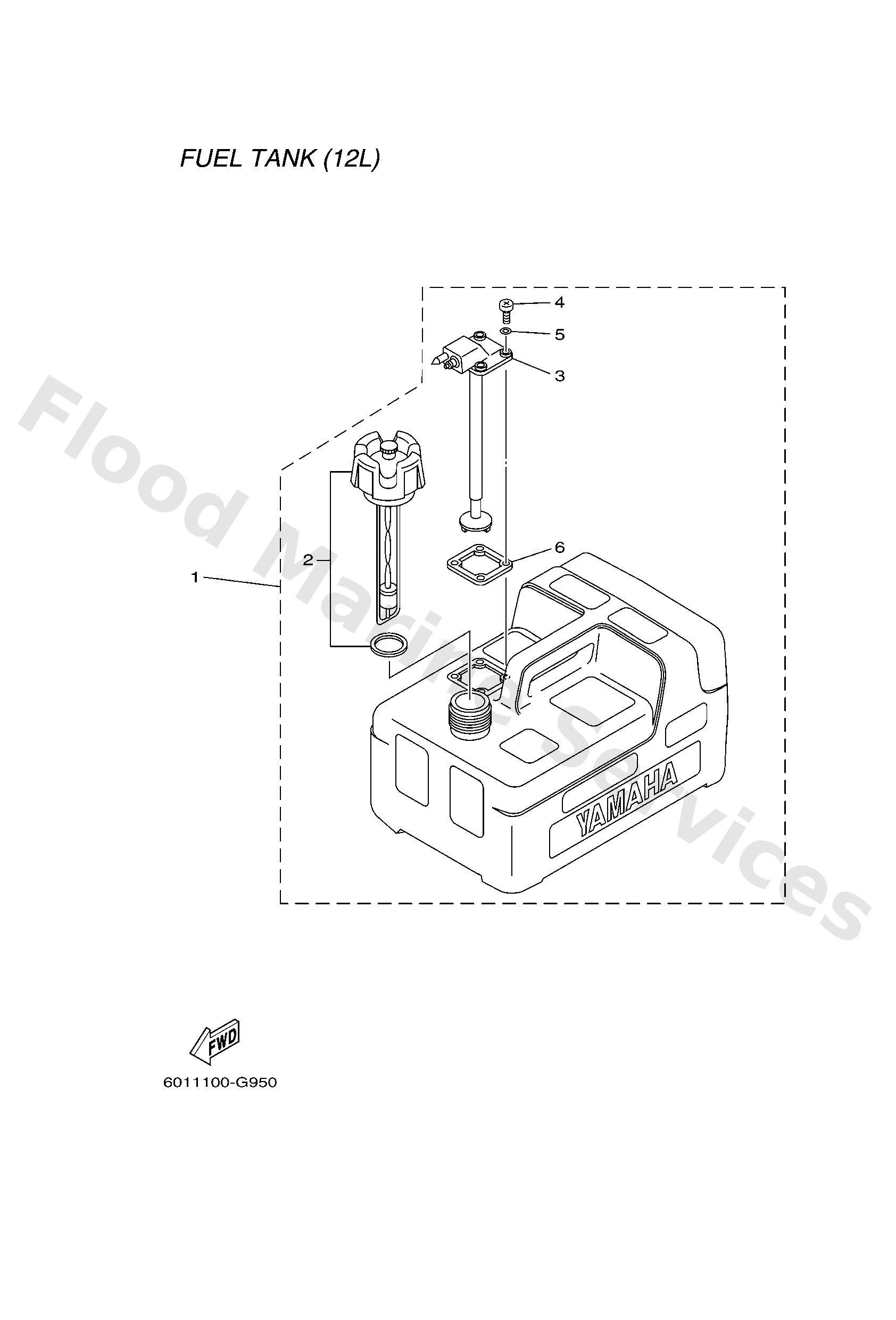

Diagram: FUEL TANK 1

Diagram

Parts List

6YL2420105
-
Diagram Reference: 1
Get Part
6YL2461001
-
Diagram Reference: 2
Get Part
6YL2426001
Fuel meter assembly
Diagram Reference: 3
Get Part
9015705M16
Screw, pan head
Diagram Reference: 4
Get Part
6YL2432900
Seal
Diagram Reference: 5
Get Part
6YL2426801
Gasket, fuel meter
Diagram Reference: 6
Get Part
