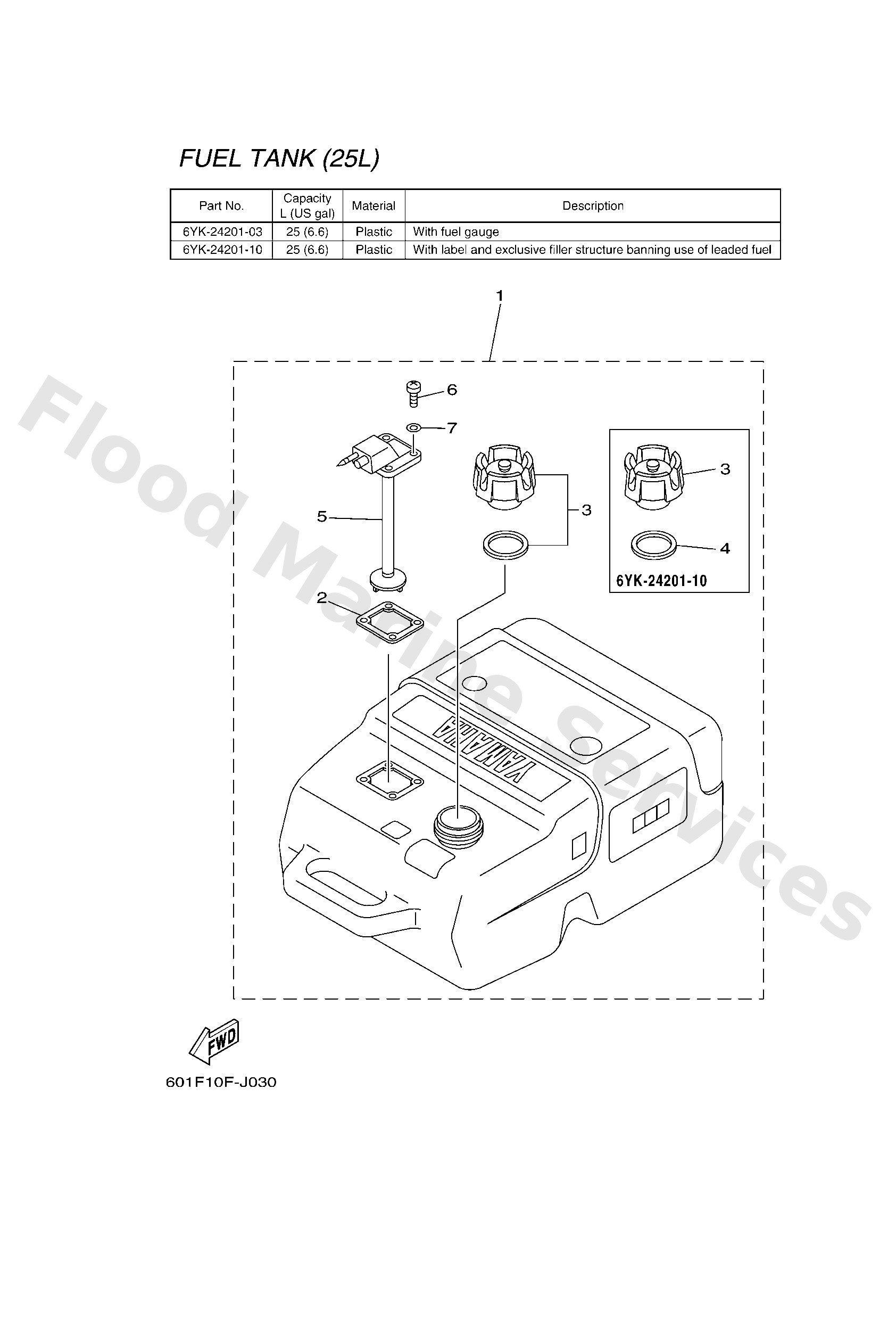

Diagram: FUEL TANK 3
Parts List
Fuel Tank assembly (25L)
Diagram Reference: 1
Fuel Tank assembly (25L)
Diagram Reference: 1
Gasket, fuel meter
Diagram Reference: 2
Cap assembly
Diagram Reference: 3
Cap assembly
Diagram Reference: 3
Gasket, cap 1
Diagram Reference: 4
Fuel meter assembly
Diagram Reference: 5
Screw, pan head
Diagram Reference: 6
Seal
Diagram Reference: 7
