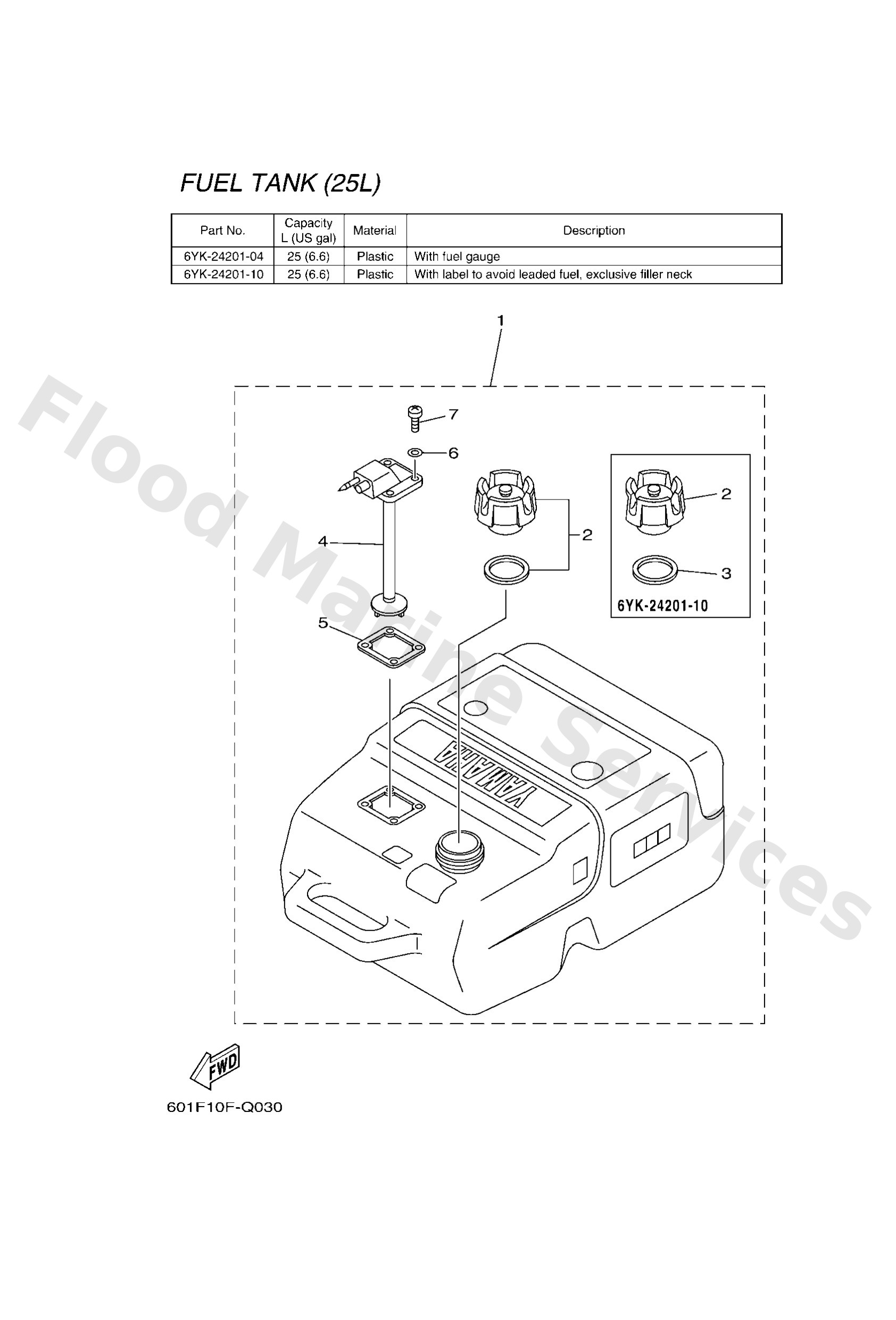

Diagram: FUEL TANK 3

Diagram

Parts List

6YK2420110 (UR)

-

Diagram Reference: 1

6YK2420104 (UR)

Fuel tank comp.

Diagram Reference: 1

6YK2461010

Cap assembly

Diagram Reference: 2

6YK2461001 (FOR 6YK-24201-04)

Cap assembly

Diagram Reference: 2

6YL2464100 (FOR 6YK-24201-10)

Gasket, cap 1

Diagram Reference: 3

6YK2426001 (FOR 6YK-24201-10)

Fuel meter assembly

Diagram Reference: 4

6YK2426010 (FOR 6YK-24201-04)

Fuel meter assembly

Diagram Reference: 4

6YL2426801

Gasket, fuel meter

Diagram Reference: 5

6YL2432900

Seal

Diagram Reference: 6

9015705M16

Screw, pan head

Diagram Reference: 7
