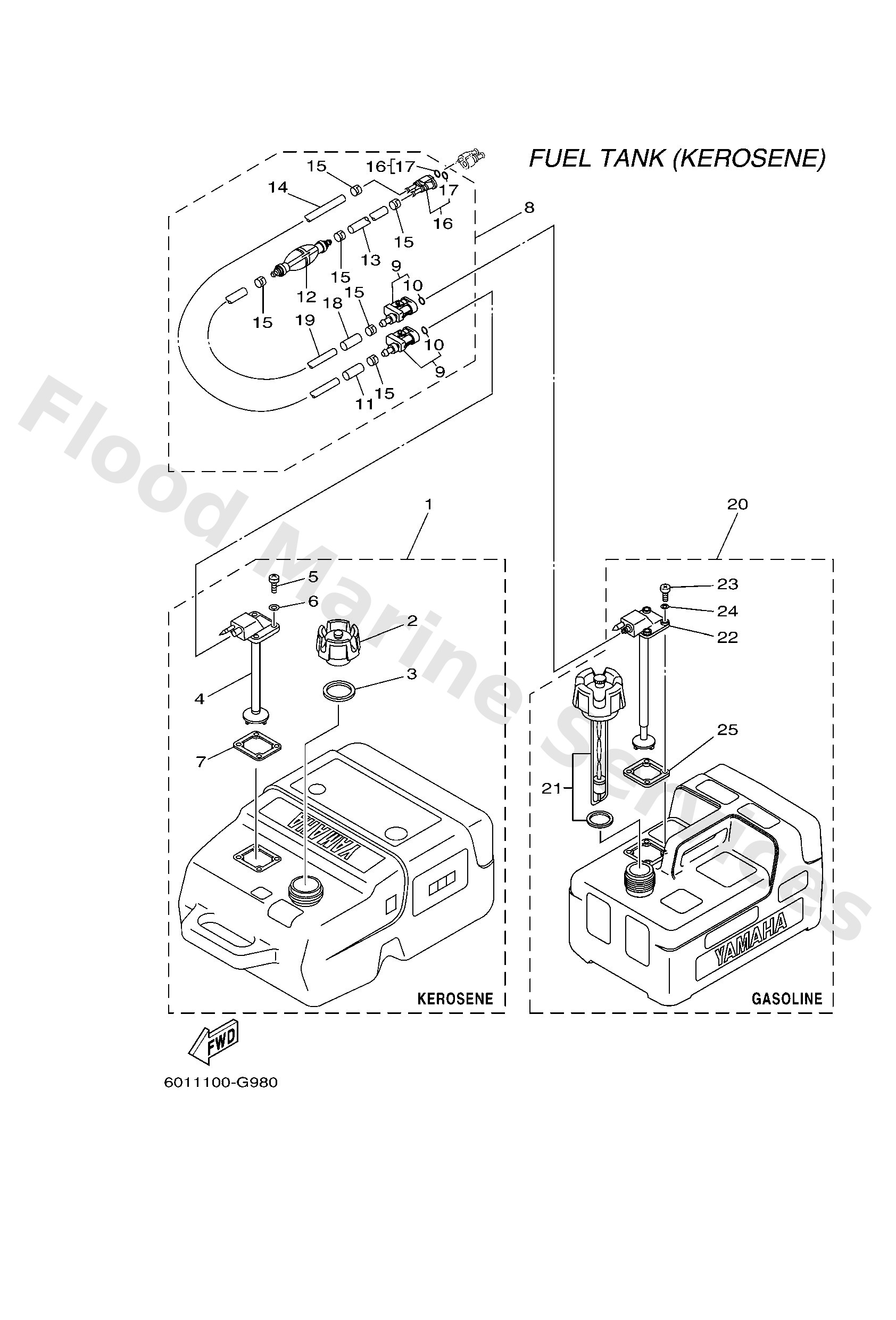

Diagram: FUEL TANK 4
Parts List
Cap assembly
Diagram Reference: 2
Gasket, cap 1
Diagram Reference: 3
Fuel meter assembly
Diagram Reference: 4
Screw, pan head
Diagram Reference: 5
Seal
Diagram Reference: 6
Gasket, fuel meter
Diagram Reference: 7
Fuel pipe joint comp. 2
Diagram Reference: 9
O-ring (655)
Diagram Reference: 10
Collar
Diagram Reference: 11
Primer pump assembly
Diagram Reference: 12
Hose (l1000)
Diagram Reference: 13
Hose (l3000)
Diagram Reference: 14
Band 1
Diagram Reference: 15
Fuel pipe joint comp. 2
Diagram Reference: 16
Collar
Diagram Reference: 18
Hose (l3000)
Diagram Reference: 19
Fuel Tank assembly (12L)
Diagram Reference: 20
Cap assembly
Diagram Reference: 21
Fuel meter assembly
Diagram Reference: 22
