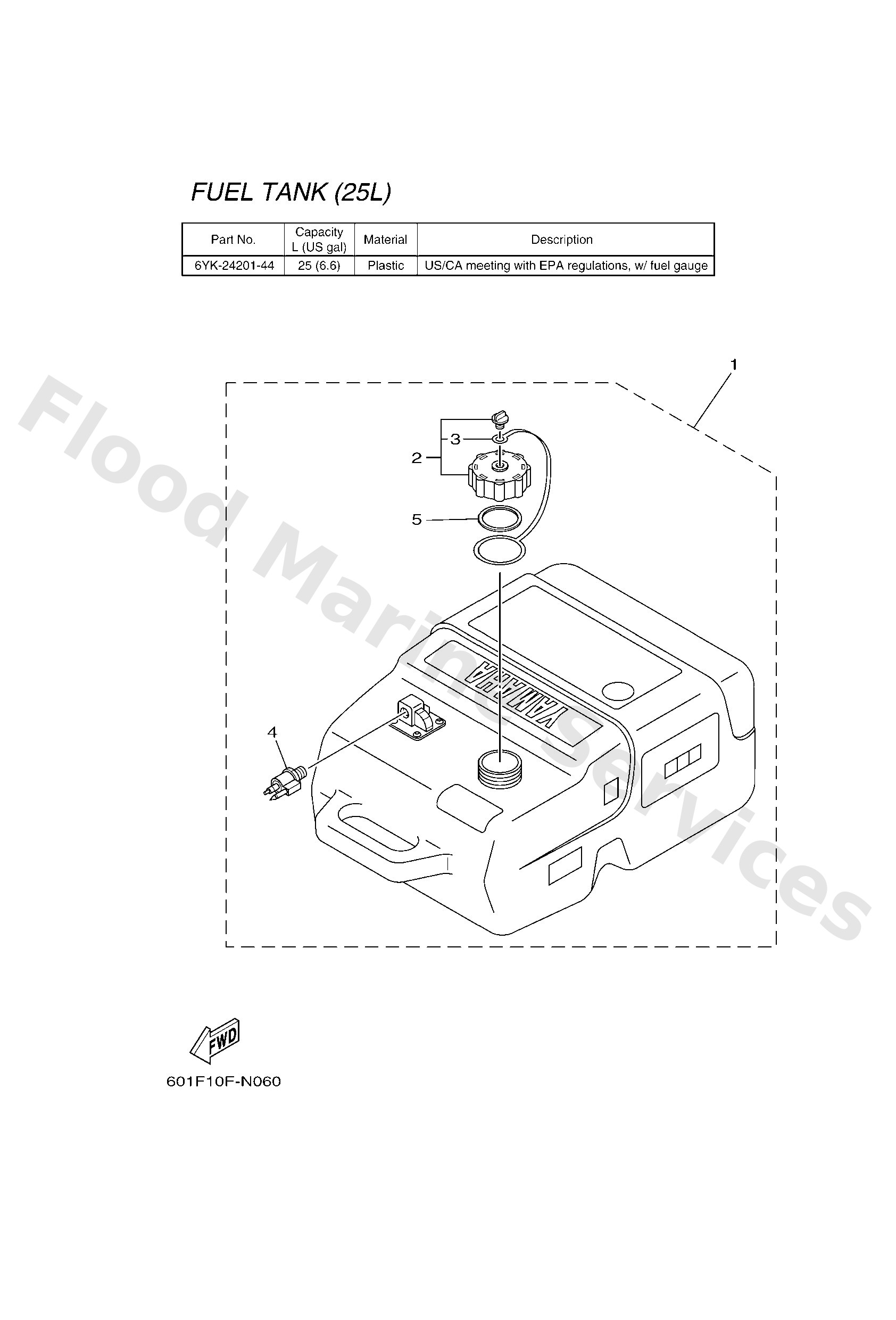

Diagram: FUEL TANK 6

Diagram

Parts List

6YK2420144
Fuel tank assembly (25l)
Diagram Reference: 1
Get Part
6YL2461010
Cap assembly
Diagram Reference: 2
Get Part
6YL2464110
Gasket, cap 1
Diagram Reference: 3
Get Part
6YL2437711
-
Diagram Reference: 4
Get Part
6YL2462900
Ring
Diagram Reference: 5
Get Part
