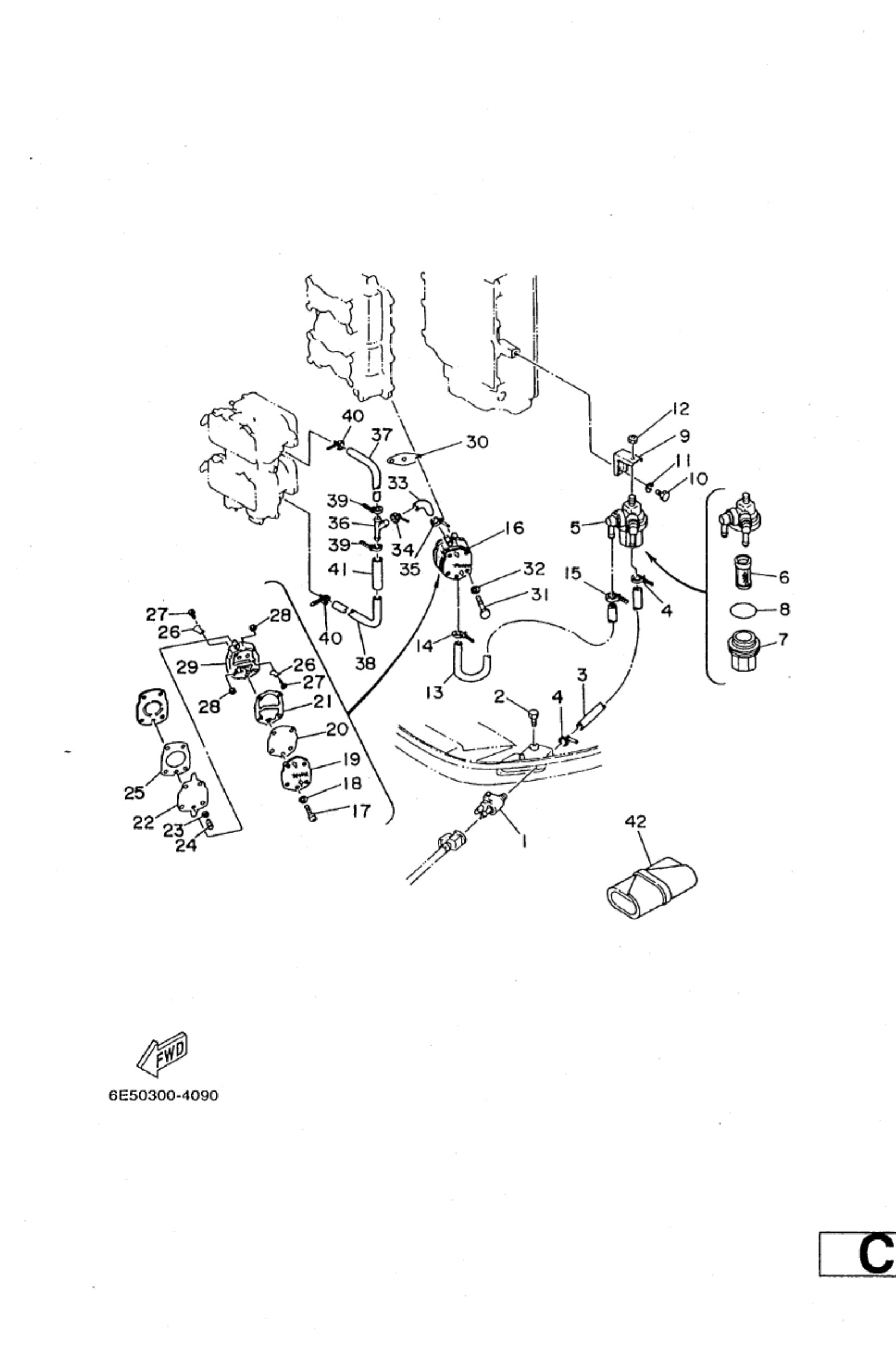

Diagram: FUEL1
Parts List
Fuel Pipe Joint Comp.
Diagram Reference: 1
Bolt (6g0)
Diagram Reference: 2
Pipe 3
Diagram Reference: 3
Clamp
Diagram Reference: 4
Filter assembly
Diagram Reference: 5
Element, filter
Diagram Reference: 6
Cup, filter
Diagram Reference: 7
O-ring(1wg)
Diagram Reference: 8
Bracket, filter
Diagram Reference: 9
Bolt(gj3)
Diagram Reference: 10
Nut(661)
Diagram Reference: 11
Nut (661)
Diagram Reference: 12
Pipe 4
Diagram Reference: 13
Fuel Pump assembly
Diagram Reference: 16
Screw, pan head (686)
Diagram Reference: 17
Washer, plain (646)
Diagram Reference: 18
Body
Diagram Reference: 19
Diaphragm
Diagram Reference: 20
Diaphragm
Diagram Reference: 22
Seat,spring
Diagram Reference: 23
Spring, diaphragm
Diagram Reference: 24
Screw, pan head
Diagram Reference: 27
Nut (6g8)
Diagram Reference: 28
Body 1
Diagram Reference: 29
Gasket,fuel pump
Diagram Reference: 30
Bolt
Diagram Reference: 31
Washer, plain (646)
Diagram Reference: 32
Pipe, joint 1
Diagram Reference: 36
Hose (l90)
Diagram Reference: 37
Hose(6g4)
Diagram Reference: 41
Tool kit
Diagram Reference: 42
