2BMH (1986)
Flywheel & Magneto

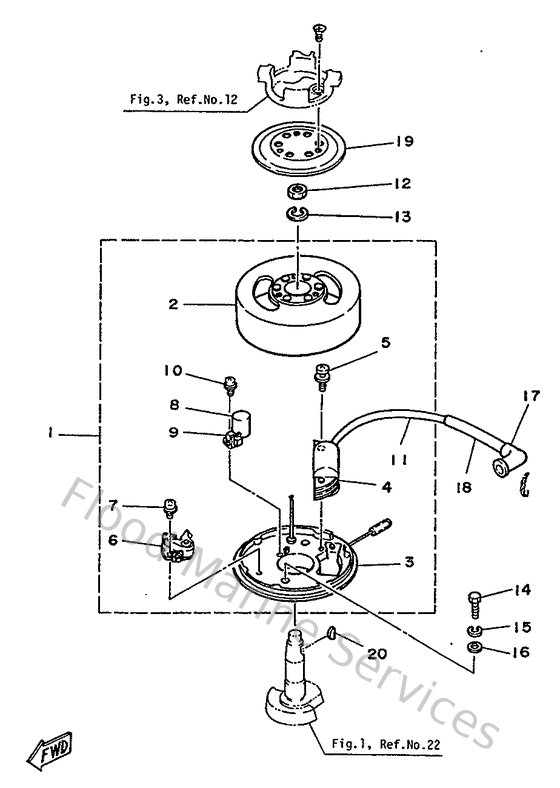

Diagram: Flywheel & Magneto
Parts List
Reference
Description
Price
1
6A1813002000
Flywheel Magneto assembly
Loading…
↗
3
6A1813092000
Base, Magneto
Loading…
↗
4
6A1813112000
Coil, Ignition 1
Loading…
↗
5
901590504000
Screw, pan head(4my)
Loading…
↗
6
806813212000
Contact breaker assembly (l.h)
Loading…
↗
7
985070401000
Screw, pan head(6g8)
Loading…
↗
8
624813252000
Condenser
Loading…
↗
9
120813312000
Lubricator
Loading…
↗
10
110813462100
Screw, pan head
Loading…
↗
12
953031060000
Nut(3bm)
Loading…
↗
13
929901010000
Ybs67-10 washer, spring
Loading…
↗
14
973130603000
Bolt
Loading…
↗
15
929030610000
Washer(6a1)
Loading…
↗
16
929900660000
Washer, plain (646)
Loading…
↗
17
6G1823702000
Plug cap assembly
Loading…
↗
19
6A1813620000
Cover, hole 1
Loading…
↗
20
902800400600
Key, woodruff(6a1)
Loading…
↗
