15DWH (1985)
Fuel

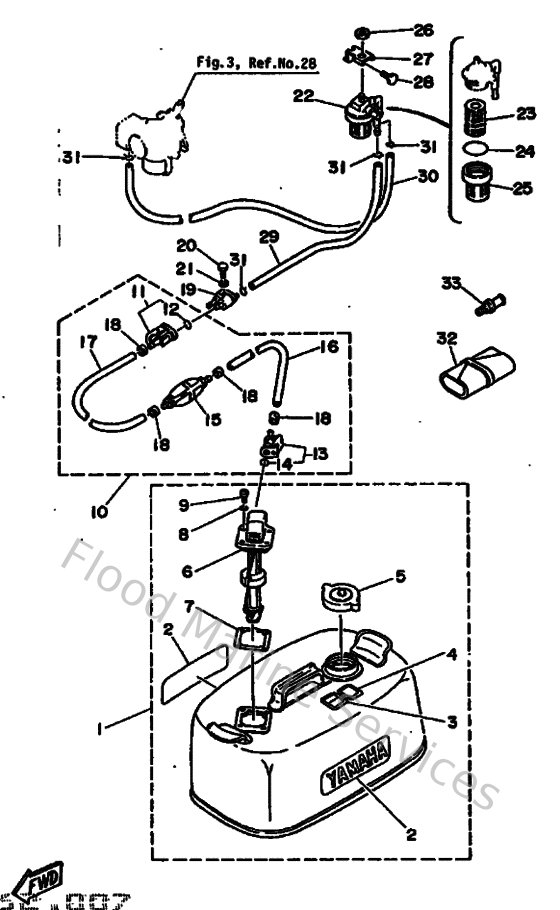

Diagram: Fuel
Parts List
Reference
Description
Price
3
6Y1242558000
Graphic, Fuel Tank 8
Loading…
↗
5
6Y1246100000
Cap assembly
Loading…
↗
6
6Y1242600000
Fuel meter assembly
Loading…
↗
7
6Y1242680000
Gasket, fuel meter
Loading…
↗
8
6Y1243290000
Seal
Loading…
↗
10
6YL243066400
Fuel pipe comp. 1
Loading…
↗
11
655243050100
Fuel pipe joint comp. 2
Loading…
↗
13
6Y1243050000
Fuel pipe joint comp. 2
Loading…
↗
15
6YL243606300
Primer pump assembly
Loading…
↗
18
650243510000
Band 1
Loading…
↗
19
6G1243040000
Fuel pipe joint comp. 1
Loading…
↗
22
655245600100
Filter assembly
Loading…
↗
23
6F5245630000
Element, filter
Loading…
↗
27
682245660000
Bracket, filter
Loading…
↗
32
6E0281000000
Tool kit
Loading…
↗
33
6E0281930094
Plug, water check
Loading…
↗
