25NMHO (2001)
Fuel

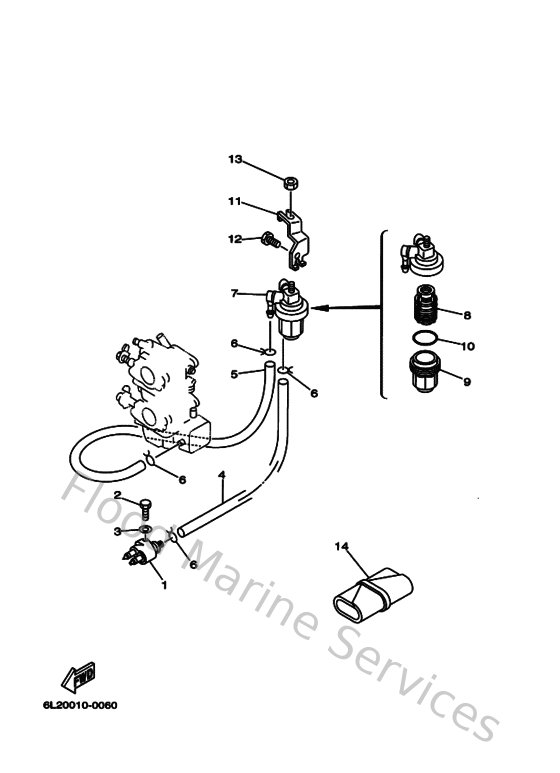

Diagram: Fuel
Parts List
Reference
Description
Price
1
6G1243040200
Fuel pipe joint comp. 1
Loading…
↗
2
970950602000
Bolt(7u8)
Loading…
↗
3
929950660000
Washer, plain (646)
Loading…
↗
4
6H4243110000
Pipe 1
Loading…
↗
5
6L2243110000
Pipe, fuel 1
Loading…
↗
6
904670800400
Clip, pipe 6162435600
Loading…
↗
7
61N245600000
Filter assembly
Loading…
↗
8
61N245631000
Element, filter
Loading…
↗
9
61N245210000
Cup, filter
Loading…
↗
10
932103273800
O-ring(1wg)
Loading…
↗
11
6L2245660000
Bracket, filter
Loading…
↗
12
970950601400
Bolt(gj3)
Loading…
↗
13
953800860000
Nut (661)
Loading…
↗
14
656W28100200
Tool kit
Loading…
↗
