40HM (1992)
Fuel

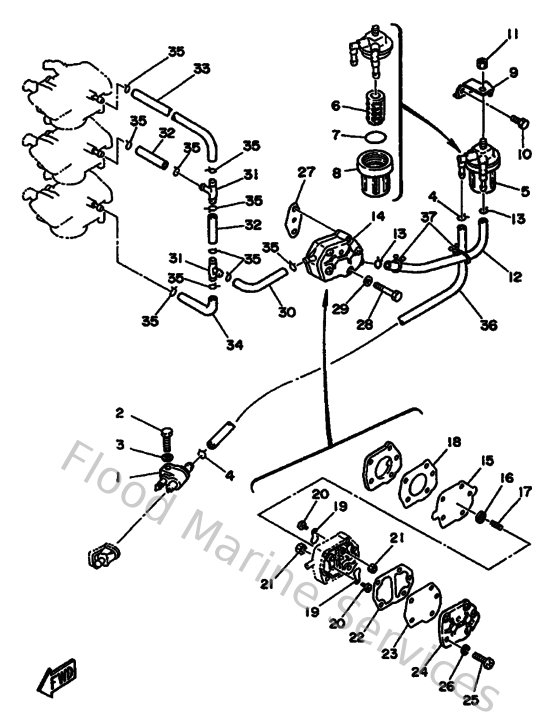

Diagram: Fuel
Parts List
Reference
Description
Price
1
6G1243040200
Fuel pipe joint comp. 1
Loading…
↗
2
973950602500
Bolt
Loading…
↗
3
929900660000
Washer, plain (646)
Loading…
↗
4
904670800400
Clip, pipe 6162435600
Loading…
↗
5
655245600100
Filter assembly
Loading…
↗
6
6F5245630000
Element, filter
Loading…
↗
7
9321037M2500
O-ring (655)
Loading…
↗
9
6H4245660200
Bracket, filter
Loading…
↗
10
970130601200
Bolt(gh1)
Loading…
↗
11
988800810000
Nut, hex.
Loading…
↗
12
6H4243140000
Pipe 4
Loading…
↗
15
648244110000
Diaphragm
Loading…
↗
16
648244240000
Seat,spring
Loading…
↗
17
648244340100
Gasket, body
Loading…
↗
21
953800360000
Nut (6g8)
Loading…
↗
22
648244350200
Gasket, body 2
Loading…
↗
23
663244110000
Diaphragm
Loading…
↗
24
648244130100
Cover, pump
Loading…
↗
25
985800553000
Ybs86-530 screw,panhead
Loading…
↗
26
929900510000
Ybs67-5 washer, spring
Loading…
↗
28
973950604000
Bolt (682)
Loading…
↗
30
90445092K100
Hose (l420)
Loading…
↗
31
688243780000
Pipe, joint
Loading…
↗
32
904450905700
Hose (l180)
Loading…
↗
33
6H4243130000
Pipe 3
Loading…
↗
34
6A4243120000
Pipe, fuel 2
Loading…
↗
36
6H4243110000
Pipe 1
Loading…
↗
37
904641603900
Clamp (3y2)
Loading…
↗
