Yamaha Outboard Parts - Fuel - 6CEM (1992) | Flood Marine
New Search
Parts
New Outboards
Home
6CEM (1992)
Fuel

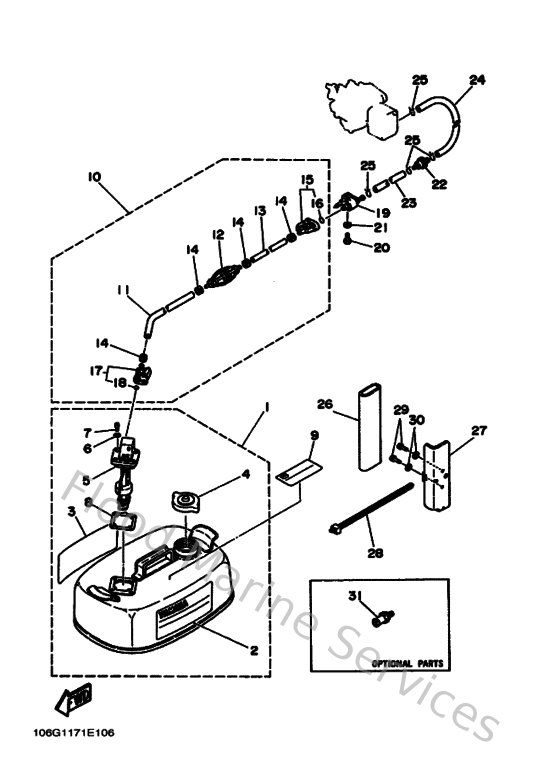

Diagram: Fuel
Parts List
Reference
Description
Price
4
6Y1246100000
Cap assembly
Loading…
↗
6
6Y1243290000
Seal
Loading…
↗
7
985860501600
Screw, pan head
Loading…
↗
8
6Y1242680000
Gasket, fuel meter
Loading…
↗
10
6YL243066400
Fuel pipe comp. 1
Loading…
↗
11
9044511M0600
Hose (l3000)
Loading…
↗
12
6Y1243605100
Primer pump assembly
Loading…
↗
13
9044511M7800
Hose (l1000)
Loading…
↗
14
650243515100
Band 1
Loading…
↗
15
6G1243050000
Fuel pipe joint comp. 2
Loading…
↗
16
932100828700
O-ring (655)
Loading…
↗
17
6Y1243050600
Fuel pipe joint comp. 2
Loading…
↗
19
6G1243040200
Fuel pipe joint comp. 1
Loading…
↗
20
9010106M2700
Bolt
Loading…
↗
21
929900660000
Washer, plain (646)
Loading…
↗
22
646242510200
Strainer 1
Loading…
↗
23
90445090F600
Hose (l1500)
Loading…
↗
24
904450922000
Hose (l1500)
Loading…
↗
25
904670800400
Clip, pipe 6162435600
Loading…
↗
26
656W28100200
Tool kit
Loading…
↗
27
6G1281700000
Holder, Tool
Loading…
↗
28
904651315400
Clamp(mf1)
Loading…
↗
29
970800601200
Bolt(gh1)
Loading…
↗
31
6E0281930094
Plug, water check
Loading…
↗
