Yamaha Outboard Parts - Fuel - FT25BE (2000) | Flood Marine

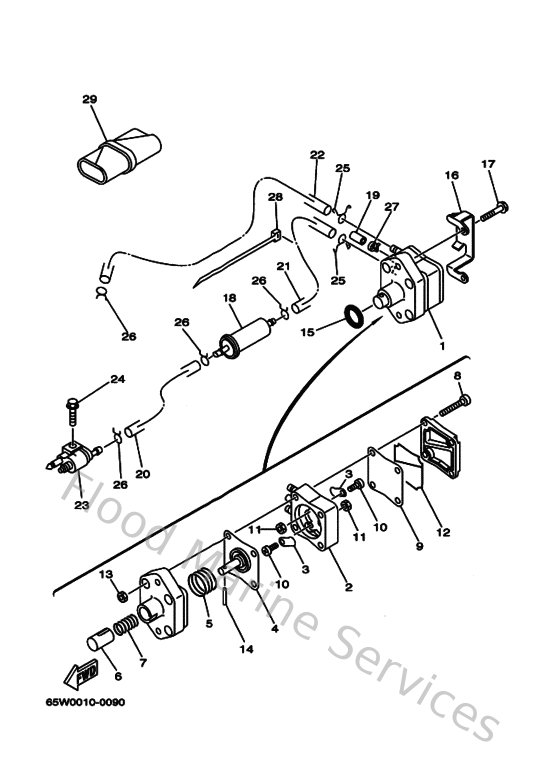

Diagram: Fuel

Diagram

Parts List

Reference
Description
Price


1
62Y244100200
Fuel pump assembly
Loading…

↗
2
62Y244130000
Body 4
Loading…

↗
3
62Y244210100
Valve, check
Loading…

↗
4
62Y244110200
Diaphragm
Loading…

↗
5
62Y244230000
Spring, diaphragm
Loading…

↗
6
62Y131310100
Plunger
Loading…

↗
7
62Y244540000
Spring
Loading…

↗
8
62Y244440000
Screw
Loading…

↗
9
62Y244710000
Diaphragm
Loading…

↗
10
6A0143250000
Screw, pan head
Loading…

↗
11
953800360000
Nut (6g8)
Loading…

↗
12
62Y244520000
Packing
Loading…

↗
13
953800560000
Nut, hexagon (663)
Loading…

↗
14
62Y243740100
Pin
Loading…

↗
15
932102480000
O-ring
Loading…

↗
16
65W244740000
Cover
Loading…

↗
17
975950653000
Bolt, hexagon w/w deep recess
Loading…

↗
18
65W242511000
Strainer 1
Loading…

↗
19
65W244810000
Plug
Loading…

↗
20
9044510M3300
Hose (l1040)
Loading…

↗
21
9044510M4300
Hose (l400)
Loading…

↗
23
6G1243040200
Fuel pipe joint comp. 1
Loading…

↗
24
9010106M2700
Bolt
Loading…

↗
25
9046710M0400
Clip, pipe 1 (6e9)
Loading…

↗
26
9046709M0300
Clip(6k8)
Loading…

↗
27
904651009800
Clamp
Loading…

↗
28
9046513M1800
Clamp
Loading…

↗
29
62Y281000000
Tool kit
Loading…

↗
