Yamaha Outboard Parts - Fuel 2 - L225FETO (2000) | Flood Marine

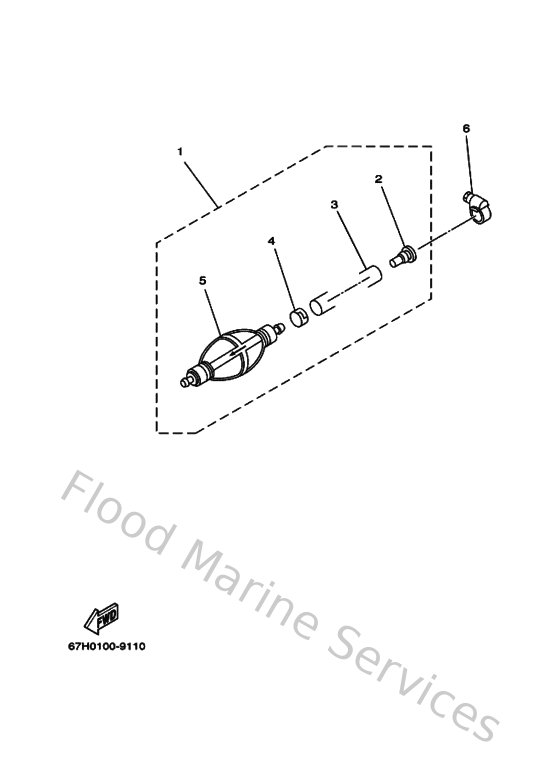

Diagram: Fuel 2

Diagram

Parts List

Reference
Description
Price


1
6Y2243074000
Fuel pipe comp. 2
Loading…

↗
2
9048006M1900
Grommet (6e3)
Loading…

↗
3
9044513M0100
Hose (l2050)
Loading…

↗
4
6E5243515100
Band 1
Loading…

↗
5
6Y2243605100
Primer pump assembly
Loading…

↗
6
9045010M0700
Hose, clamp
Loading…

↗
