S250AETOXLX (2000)
Fuel 2

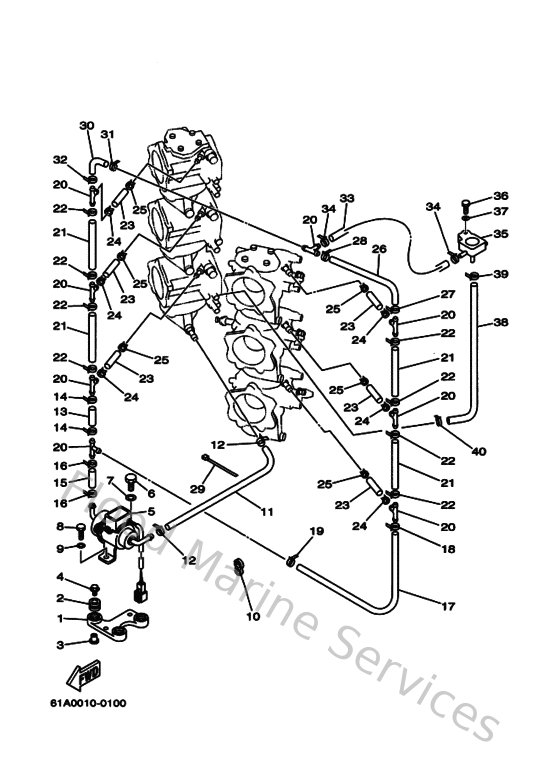

Diagram: Fuel 2
Parts List
Reference
Description
Price
1
61A244910094
Bracket, Fuel Pump
Loading…
↗
2
6A0823170000
Damper, ignition coil
Loading…
↗
3
624425420000
Collar
Loading…
↗
4
9011906M9500
Bolt, with washer
Loading…
↗
5
61A139100100
Fuel pump assembly
Loading…
↗
6
970950801400
Bolt, hexagon deep recess
Loading…
↗
7
929950860000
Washer, plain (663)
Loading…
↗
8
970800601400
Bolt(gj3)
Loading…
↗
9
929950660000
Washer, plain (646)
Loading…
↗
10
9046413M3400
Clamp(6r3)
Loading…
↗
11
4KN243110100
Pipe, fuel 1
Loading…
↗
12
9046511M1000
Clamp
Loading…
↗
13
9044510M4300
Hose (l400)
Loading…
↗
19
904651009800
Clamp
Loading…
↗
20
688243780000
Pipe, joint
Loading…
↗
21
9044510M5300
Hose (l400)
Loading…
↗
23
61A243160000
Pipe 6
Loading…
↗
26
6A4243150000
Pipe 5
Loading…
↗
29
9046411M2400
Clamp(6h1)
Loading…
↗
30
9044510M1600
Hose (l400)
Loading…
↗
35
61A244700100
Fuel Regulator.assembly
Loading…
↗
36
970800603500
Bolt(j52)
Loading…
↗
38
9044510M9200
Hose
Loading…
↗
