Yamaha Outboard Parts - Fuel Injection Pump - F115AET (2000) | Flood Marine

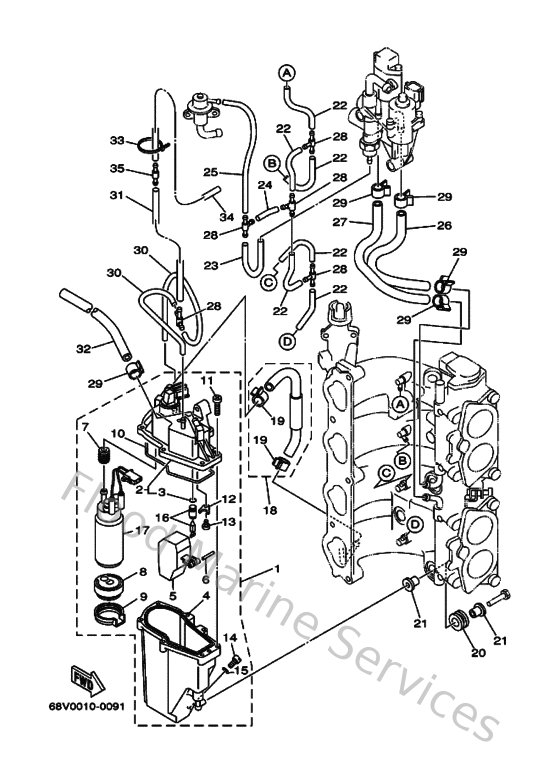

Diagram: Fuel Injection Pump

Diagram

Parts List

Reference
Description
Price


1
68V141800000
Float chamber assembly
Loading…

↗
2
68V141820000
Cover, Float Chamber
Loading…

↗
3
68V137690000
O-ring
Loading…

↗
4
68V141810000
Body, float chamber 1
Loading…

↗
5
68V149850000
Float
Loading…

↗
6
68V143860000
Pin,float
Loading…

↗
7
68V137810000
Damper, pump
Loading…

↗
8
68V139150000
Filter
Loading…

↗
9
68V137840000
Cover, pump
Loading…

↗
10
68V149840000
Gasket, float chamber
Loading…

↗
11
68V145670000
Screw
Loading…

↗
12
68V142550000
Plate, valve seat
Loading…

↗
13
68V145920000
Screw
Loading…

↗
14
68V141910000
Plug, drain
Loading…

↗
15
68V141260000
Washer
Loading…

↗
16
68V145460000
Valve, needle
Loading…

↗
17
68V139070400
Fuel pump comp.
Loading…

↗
18
68V148070000
Hose comp.
Loading…

↗
19
68V243870000
Clip
Loading…

↗
20
68V135930000
Damper
Loading…

↗
21
68V137160000
Collar
Loading…

↗
22
68V135420000
Hose, vacuum sensing 1
Loading…

↗
23
68V135330000
Hose, vacuum sensing 4
Loading…

↗
24
68V135440000
Hose Vacuum Sensing 2
Loading…

↗
25
68V135320000
Hose, vacuum sensing 3
Loading…

↗
26
68V135450000
Hose 1
Loading…

↗
27
68V135460000
Hose 2
Loading…

↗
28
68V243770000
Pipe, joint 1
Loading…

↗
29
68V135770000
Clip
Loading…

↗
32
68V142940000
Hose
Loading…

↗
33
68V2417H0000
Clamp 1
Loading…

↗
35
68V134900000
Relief Valve assembly
Loading…

↗
