9.9FMH (2001)
Fuel Tank

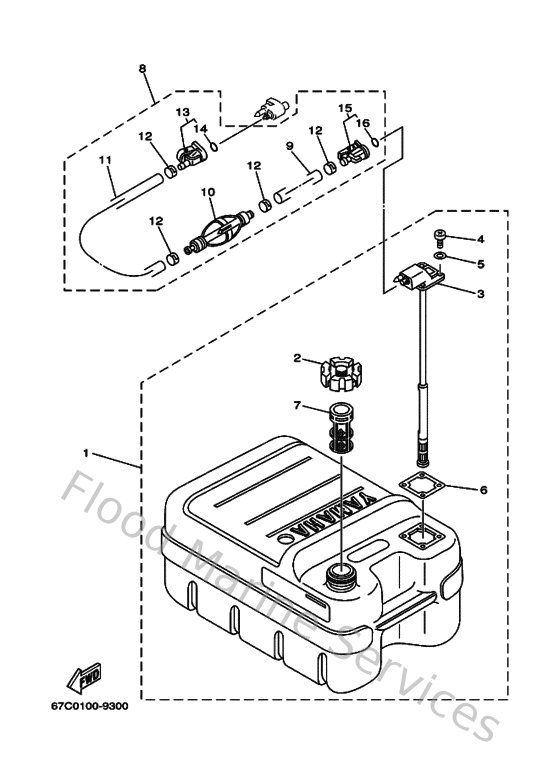

Diagram: Fuel Tank
Parts List
Reference
Description
Price
1
6YJ242015000
Fuel Tank assembly (24L)
Loading…
↗
2
6YJ246100100
Cap assembly
Loading…
↗
3
6Y1242601900
Fuel meter assembly
Loading…
↗
4
985860501600
Screw, pan head
Loading…
↗
5
6Y1243290000
Seal
Loading…
↗
6
6Y1242680000
Gasket, fuel meter
Loading…
↗
7
6YJ241670000
Strainer
Loading…
↗
8
61J243060200
Fuel pipe comp. 1
Loading…
↗
9
9044511M0600
Hose (l3000)
Loading…
↗
10
6Y1243605200
Primer pump assembly
Loading…
↗
11
9044511M7800
Hose (l1000)
Loading…
↗
12
650243515100
Band 1
Loading…
↗
13
6G1243050300
Fuel pipe joint comp. 2
Loading…
↗
14
932100828700
O-ring (655)
Loading…
↗
15
6Y1243050400
Fuel pipe joint comp. 2
Loading…
↗
