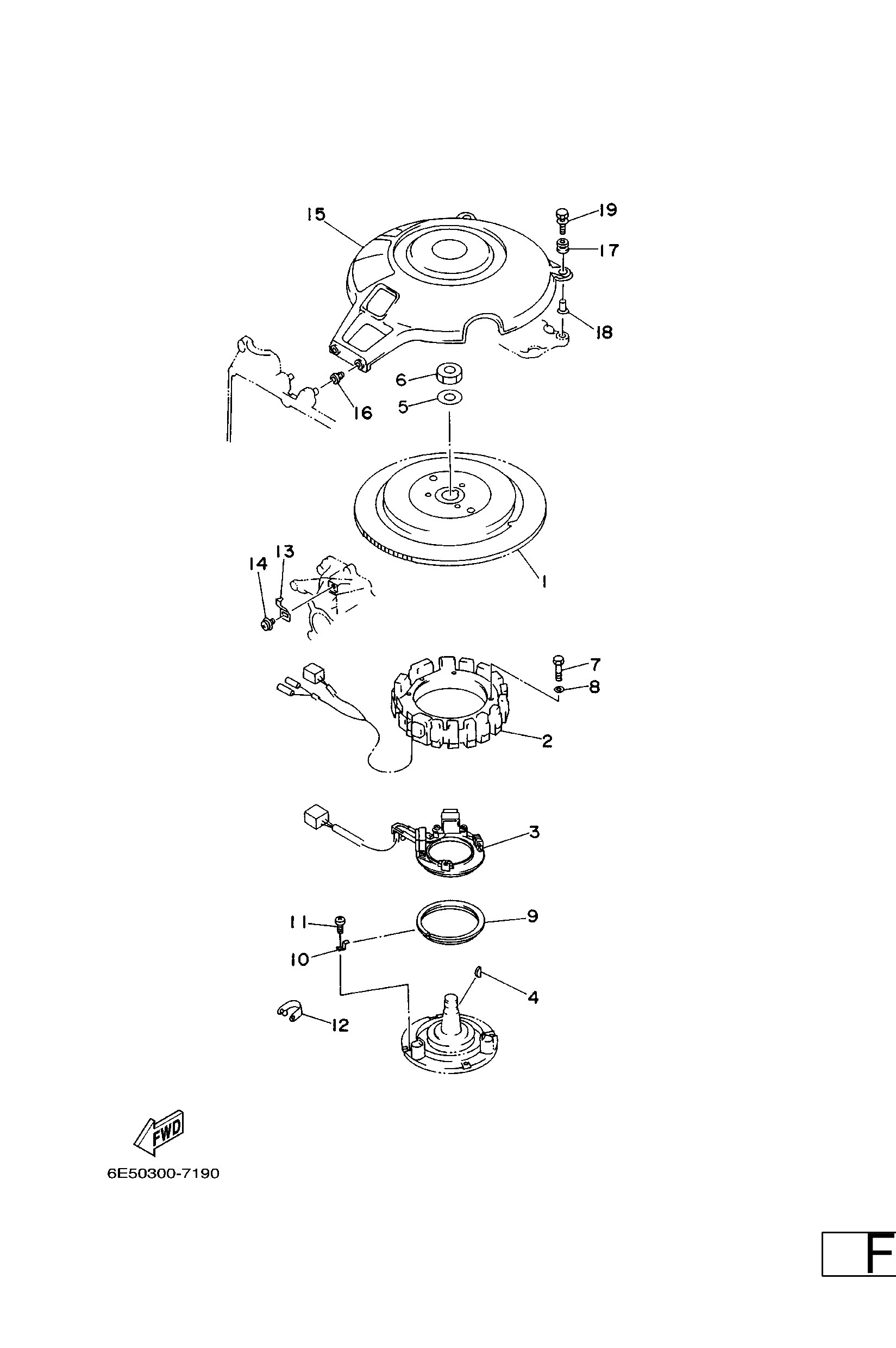

Diagram: GENERATOR
Parts List
Rotor assembly
Diagram Reference: 1
Stator assembly
Diagram Reference: 2
Coil, pulser
Diagram Reference: 3
Key, woodruff (12r)
Diagram Reference: 4
Washer, plate (663)
Diagram Reference: 5
Nut, hexagon(663)
Diagram Reference: 6
Bolt, hexagon
Diagram Reference: 7
Washer, plain (646)
Diagram Reference: 8
Retainer, magneto base 1
Diagram Reference: 9
Retainer, magneto base 2
Diagram Reference: 10
Screw, pan head(6e5)
Diagram Reference: 11
Clamp
Diagram Reference: 12
Plate, timing
Diagram Reference: 13
Screw pan head
Diagram Reference: 14
Cover, flywheel
Diagram Reference: 15
Damper
Diagram Reference: 16
Damper, ignition coil
Diagram Reference: 17
Collar
Diagram Reference: 18
Bolt, with washer
Diagram Reference: 19
