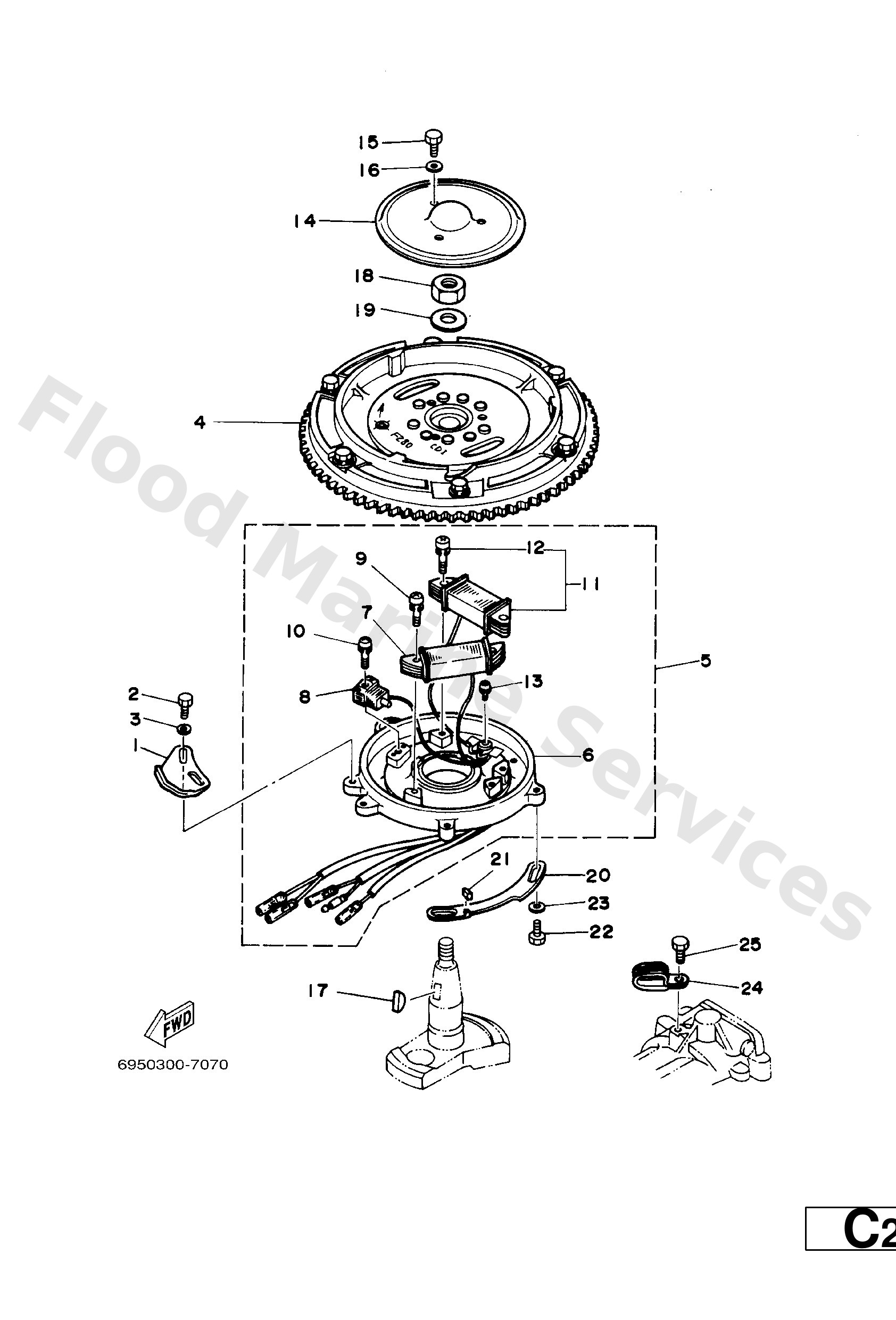

Diagram: GENERATOR
Parts List
Cam, Accel.
Diagram Reference: 1
Bolt, hexagon
Diagram Reference: 2
Washer, plain (646)
Diagram Reference: 3
Rotor assembly
Diagram Reference: 4
Base assembly
Diagram Reference: 5
Base, Magneto
Diagram Reference: 6
Charge coil assembly
Diagram Reference: 7
Coil, Pulser
Diagram Reference: 8
Screw panhead (695)
Diagram Reference: 9
Screw, With Washer
Diagram Reference: 10
Screw, pan head(4my)
Diagram Reference: 12
Screw panhead (695)
Diagram Reference: 13
Bolt(gh1)
Diagram Reference: 15
Washer, plain (646)
Diagram Reference: 16
Key, woodruff
Diagram Reference: 17
Nut, hexagon 6481155500
Diagram Reference: 18
Washer, plate (4n0)
Diagram Reference: 19
Stopper, Magneto Base
Diagram Reference: 20
Cap
Diagram Reference: 21
Bolt(gh1)
Diagram Reference: 22
Washer, plain (646)
Diagram Reference: 23
Clamp (6a4)
Diagram Reference: 24
Bolt
Diagram Reference: 25
