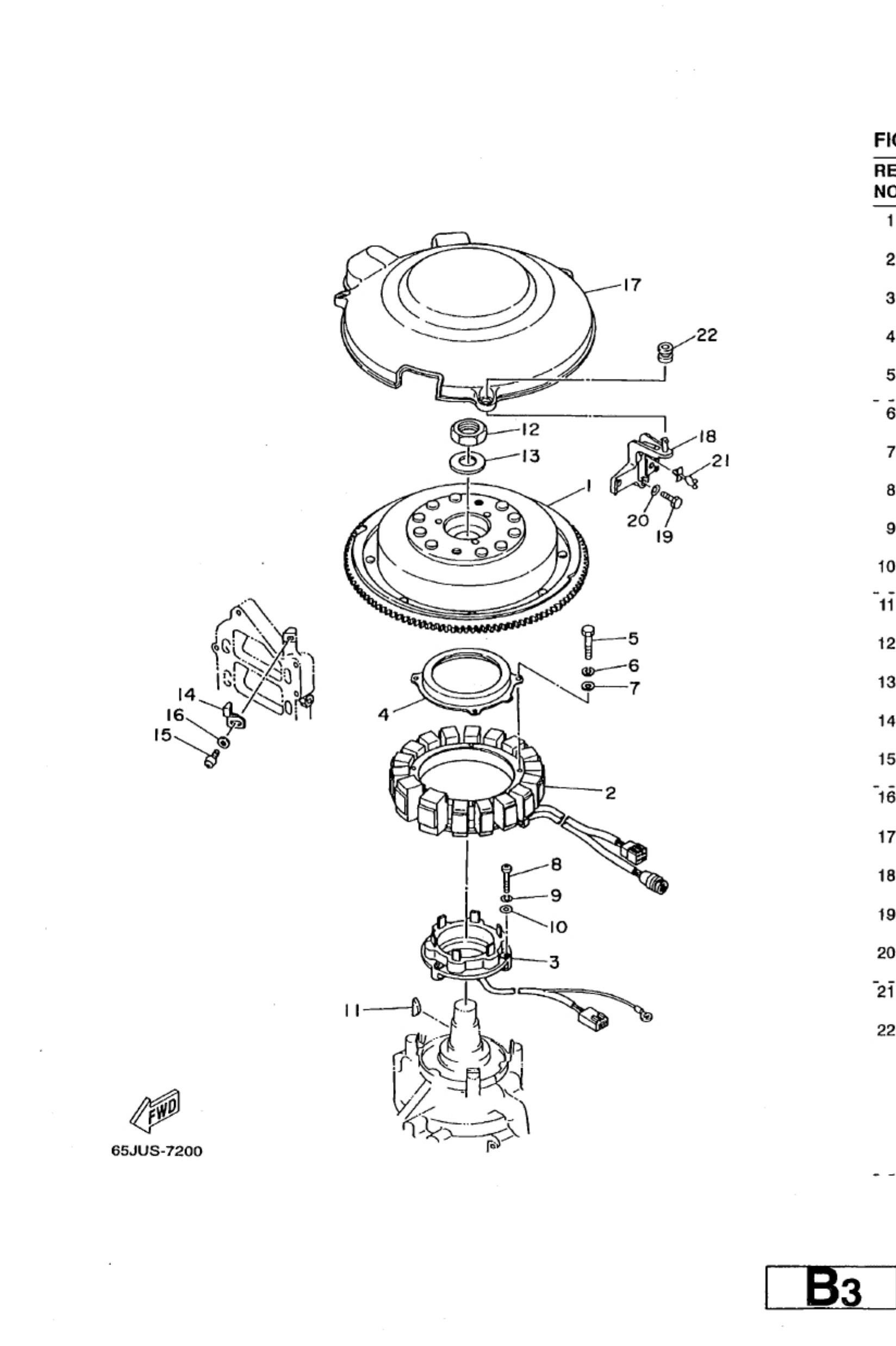

Diagram: GENERATOR
Parts List
Rotor assembly
Diagram Reference: 1
Stator assembly
Diagram Reference: 2
Coil, pulser
Diagram Reference: 3
Cover
Diagram Reference: 4
Damper, ignition coil
Diagram Reference: 5
Bolt(62y)
Diagram Reference: 5
Clamp, Lead
Diagram Reference: 5
Cover, flywheel
Diagram Reference: 5
Screw pan head
Diagram Reference: 5
Plate, timing
Diagram Reference: 5
Washer, Plate
Diagram Reference: 5
Nut(61a)
Diagram Reference: 5
Key, woodruff
Diagram Reference: 5
Washer
Diagram Reference: 5
Ybs67-5 washer, spring
Diagram Reference: 5
Ybs86-530 screw,panhead
Diagram Reference: 5
Washer, plain (646)
Diagram Reference: 5
Bolt(3rv)
Diagram Reference: 5
