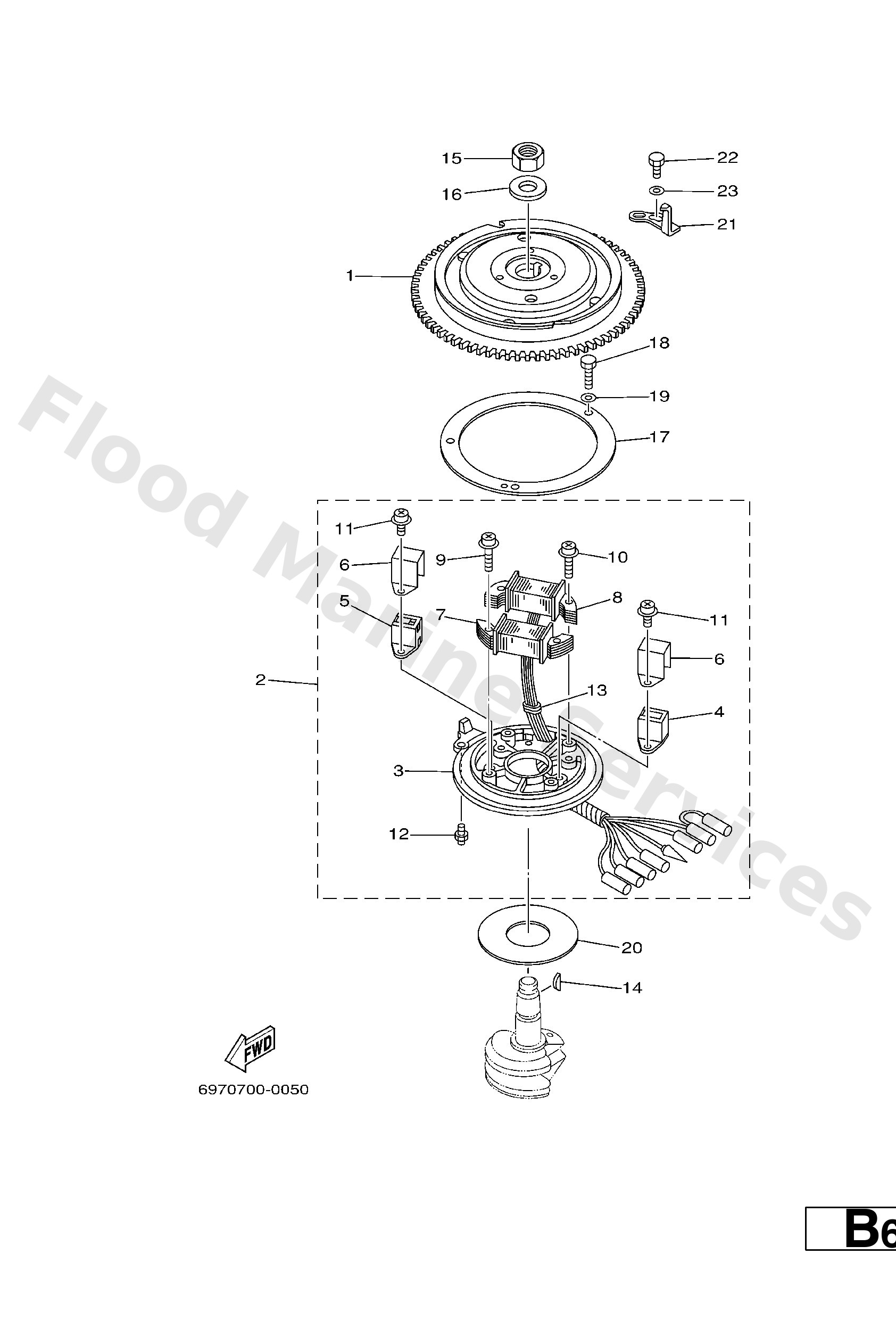

Parts List
Rotor assembly
Diagram Reference: 1
Base assembly
Diagram Reference: 2
Base, magneto
Diagram Reference: 3
Coil, pulser
Diagram Reference: 4
Coil, pulser
Diagram Reference: 5
Cover
Diagram Reference: 6
Coil, charge
Diagram Reference: 7
Coil, lighting
Diagram Reference: 8
Screw, Pan Head With Washer
Diagram Reference: 9
Screw, pan head with washer
Diagram Reference: 10
Screw, pan head with washer
Diagram Reference: 11
Joint, ball
Diagram Reference: 12
Grommet (663)
Diagram Reference: 13
Key, woodruff
Diagram Reference: 14
Nut, hexagon(663)
Diagram Reference: 15
Washer, plate (663)
Diagram Reference: 16
Retainer, magneto base 2
Diagram Reference: 17
Bolt(62y)
Diagram Reference: 18
Washer, plain (646)
Diagram Reference: 19
Washer, magneto 2
Diagram Reference: 20
Plate, timing
Diagram Reference: 21
Bolt, hexagon deep recess
Diagram Reference: 22
Washer, plain (646)
Diagram Reference: 23
