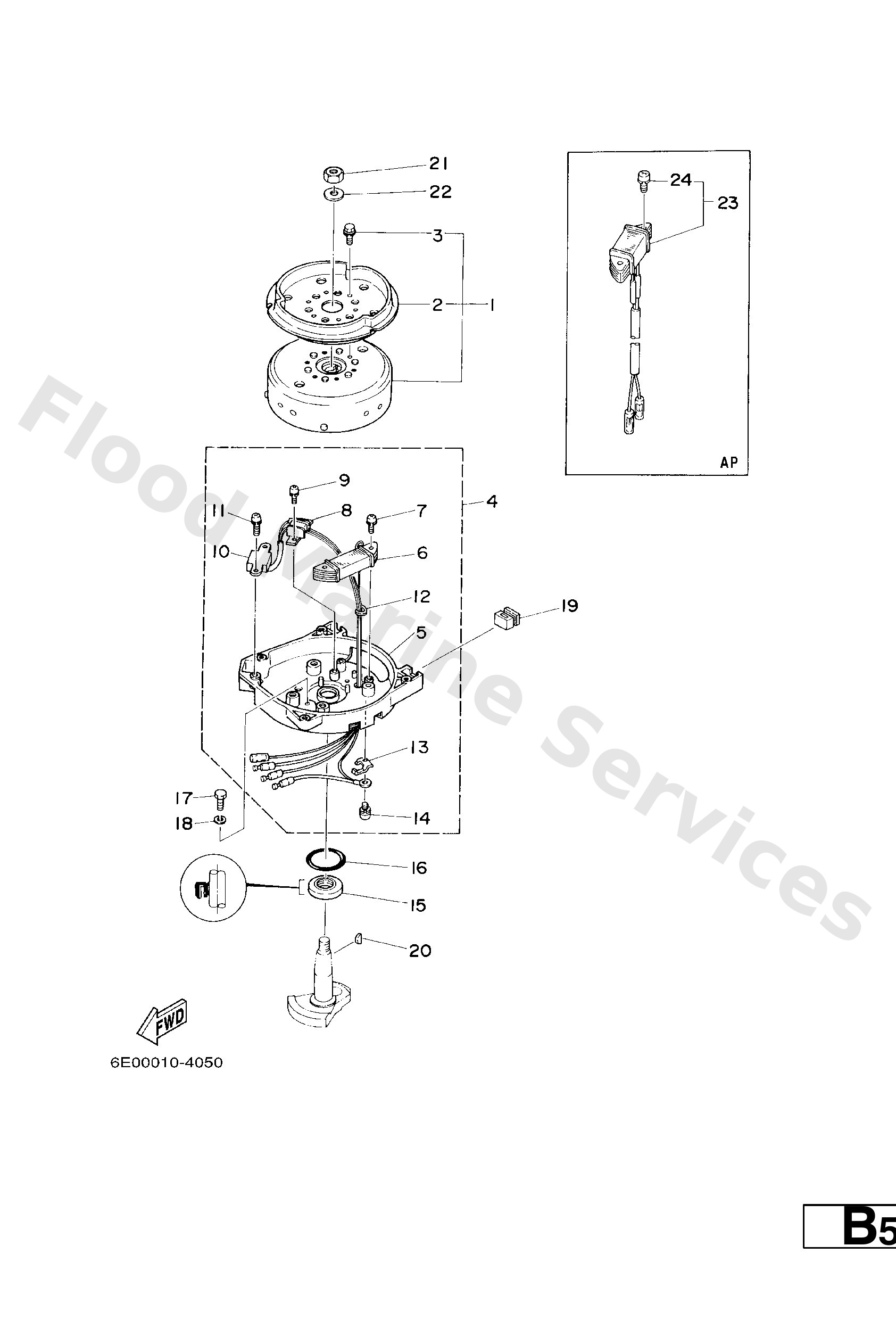

Diagram: GENERATOR

Diagram

Parts List

6E0−85550−71
Rotor assembly
Diagram Reference: 1
Get Part
6E0−15723−00−94
Pulley, Starter
Diagram Reference: 2
Get Part
90105−06M14
Bolt (6e0)
Diagram Reference: 3
Get Part
6E0−85560−70
Base assembly
Diagram Reference: 4
Get Part
6E0−15359−00−94
Housing, oil seal
Diagram Reference: 5
Get Part
6E0−85520−70
Charge coil ass'y
Diagram Reference: 6
Get Part
90159−05038
Screw, With Washer
Diagram Reference: 7
Get Part
6E0−85595−70
Coil pulser assembly 1
Diagram Reference: 8
Get Part
90159−04036
Screw, pan head(6g8)
Diagram Reference: 9
Get Part
6E0−85592−70
Pulser coil assembly 2
Diagram Reference: 10
Get Part
90159−05037
Screw,w/washer
Diagram Reference: 11
Get Part
6E0−81336−70
Grommet
Diagram Reference: 12
Get Part
6E0−81328−70
Clamp
Diagram Reference: 13
Get Part
90159−04035
Screw panhead (695)
Diagram Reference: 14
Get Part
93102−20M25
Oil seal (6e0)
Diagram Reference: 15
Get Part
93210−42159
O-ring (647)
Diagram Reference: 16
Get Part
97095−06016
Bolt, hexagon deep recess
Diagram Reference: 17
Get Part
92995−06100
Washer(6a1)
Diagram Reference: 18
Get Part
6E0−24183−00
Damper, locating 3
Diagram Reference: 19
Get Part
90280−04M06
Key, woodruff(6a1)
Diagram Reference: 20
Get Part
90170−10113
Nut, crank shaft (650)
Diagram Reference: 21
Get Part
90201−10126
Washer, plate (26h)
Diagram Reference: 22
Get Part
6E0−81303−80 (AP 60W)
Lighting coil assembly
Diagram Reference: 23
Get Part
6E0−81303−40 (AP 40W)
Lighting coil assembly
Diagram Reference: 23
Get Part
90159−05040
Screw, pan head(4my)
Diagram Reference: 24
Get Part
