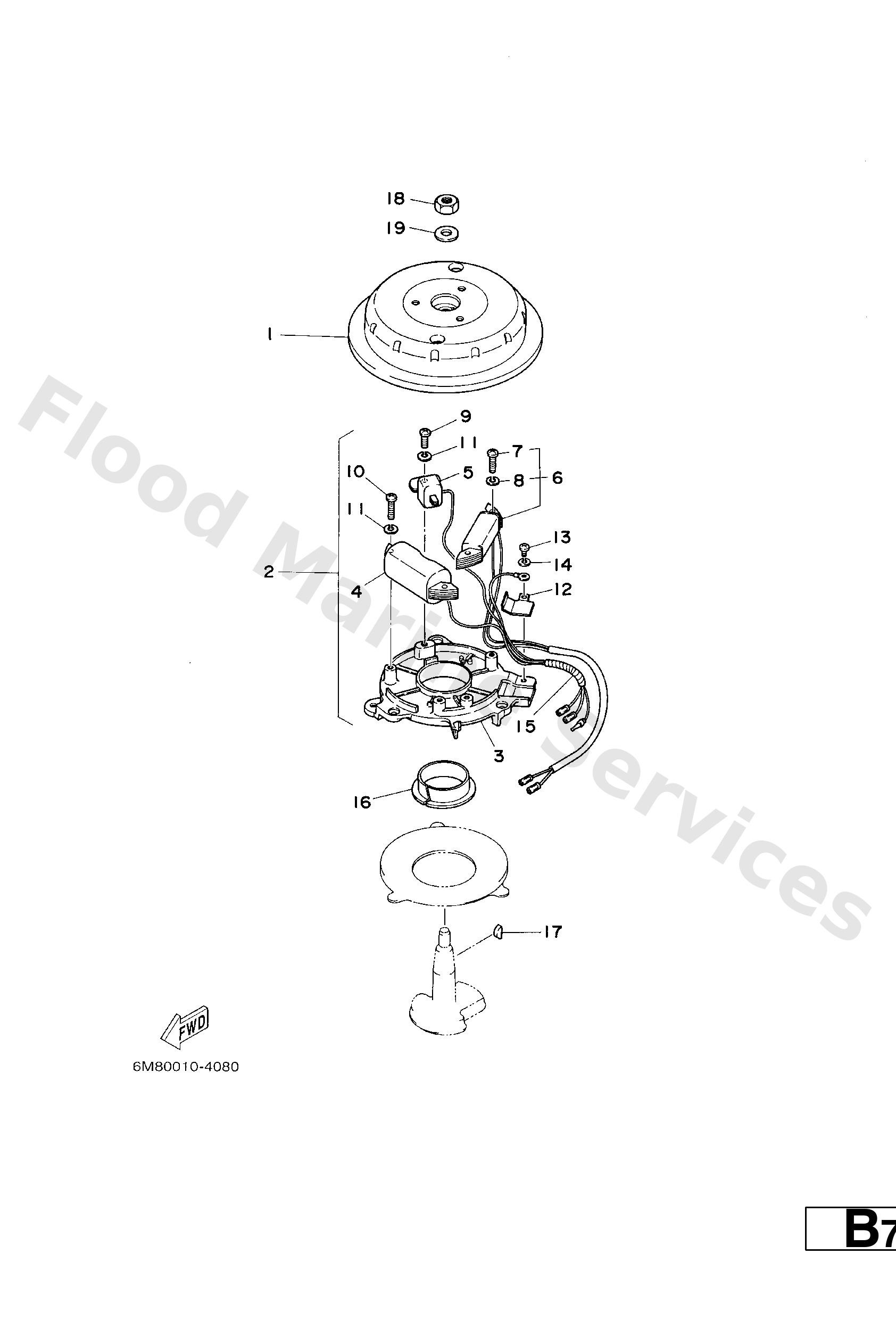

Diagram: GENERATOR
Parts List
Rotor assembly
Diagram Reference: 1
Rotor assembly
Diagram Reference: 1
Base ass'y
Diagram Reference: 2
Base, magneto
Diagram Reference: 3
Coil assembly
Diagram Reference: 4
Pulser coil ass'y
Diagram Reference: 5
Lighting coil ass'y
Diagram Reference: 6
Screw, panhead (a93)
Diagram Reference: 7
Ybs67-5 washer, spring
Diagram Reference: 8
Screw, pan head(6b0)
Diagram Reference: 9
Screw, pan head
Diagram Reference: 10
Cord, clamp
Diagram Reference: 12
Screw, pan head (713)
Diagram Reference: 13
Ybs67-4 washer, spring
Diagram Reference: 14
Wire, lead
Diagram Reference: 15
Bushing (6g1)
Diagram Reference: 16
Key, woodruff(6a1)
Diagram Reference: 17
Nut, crank shaft (650)
Diagram Reference: 18
Washer, plate (26h)
Diagram Reference: 19
