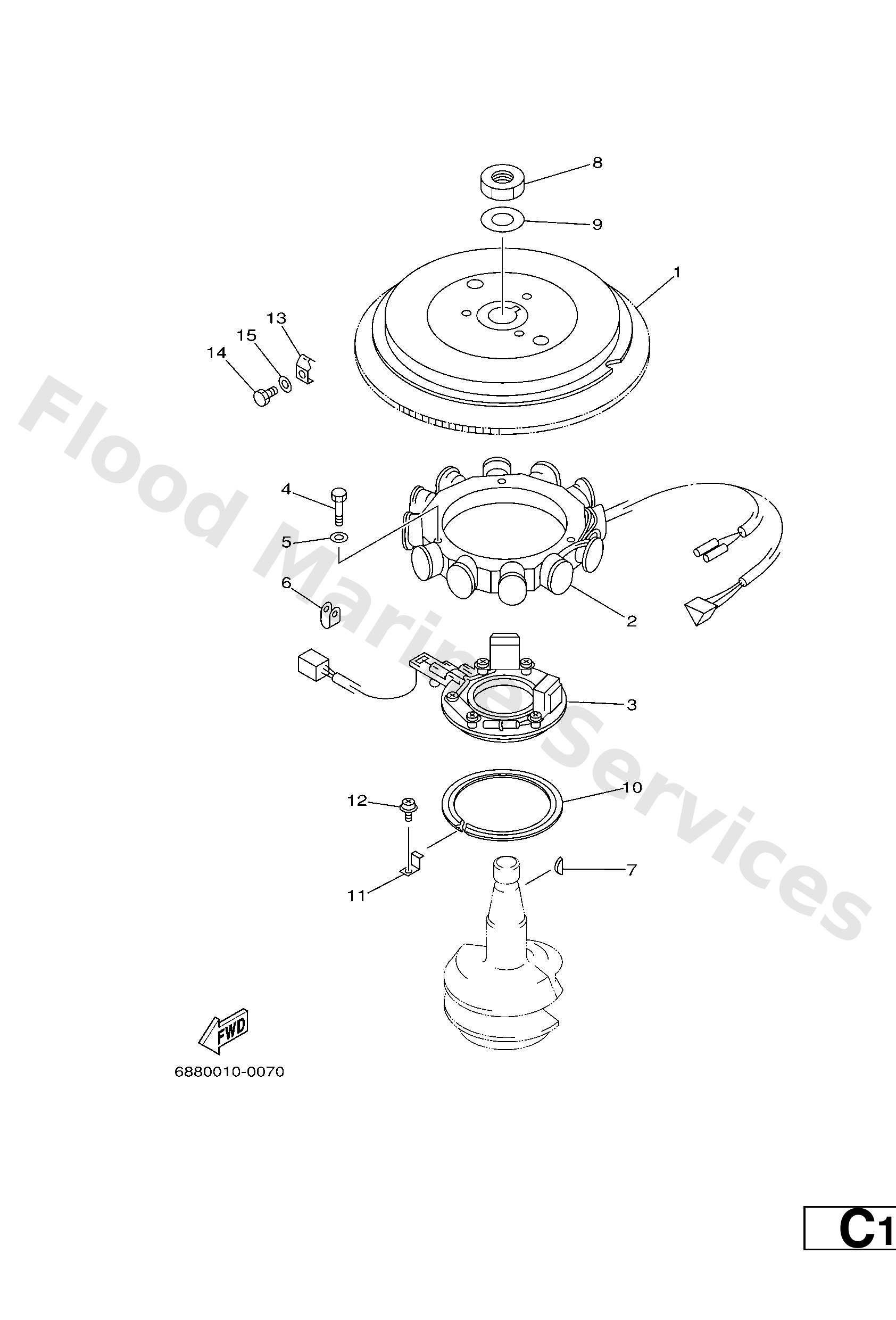

Diagram: GENERATOR
Parts List
Rotor assembly
Diagram Reference: 1
Stator assembly
Diagram Reference: 2
Coil, pulser
Diagram Reference: 3
Bolt
Diagram Reference: 4
Washer, plain (646)
Diagram Reference: 5
Clamp
Diagram Reference: 6
Key, woodruff
Diagram Reference: 7
Nut, hexagon(663)
Diagram Reference: 8
Washer, plate (663)
Diagram Reference: 9
Retainer, magneto base 1
Diagram Reference: 10
Retainer, magneto base 2
Diagram Reference: 11
Screw, with washer
Diagram Reference: 12
Plate, timing
Diagram Reference: 13
Bolt
Diagram Reference: 14
Washer, plain (646)
Diagram Reference: 15
