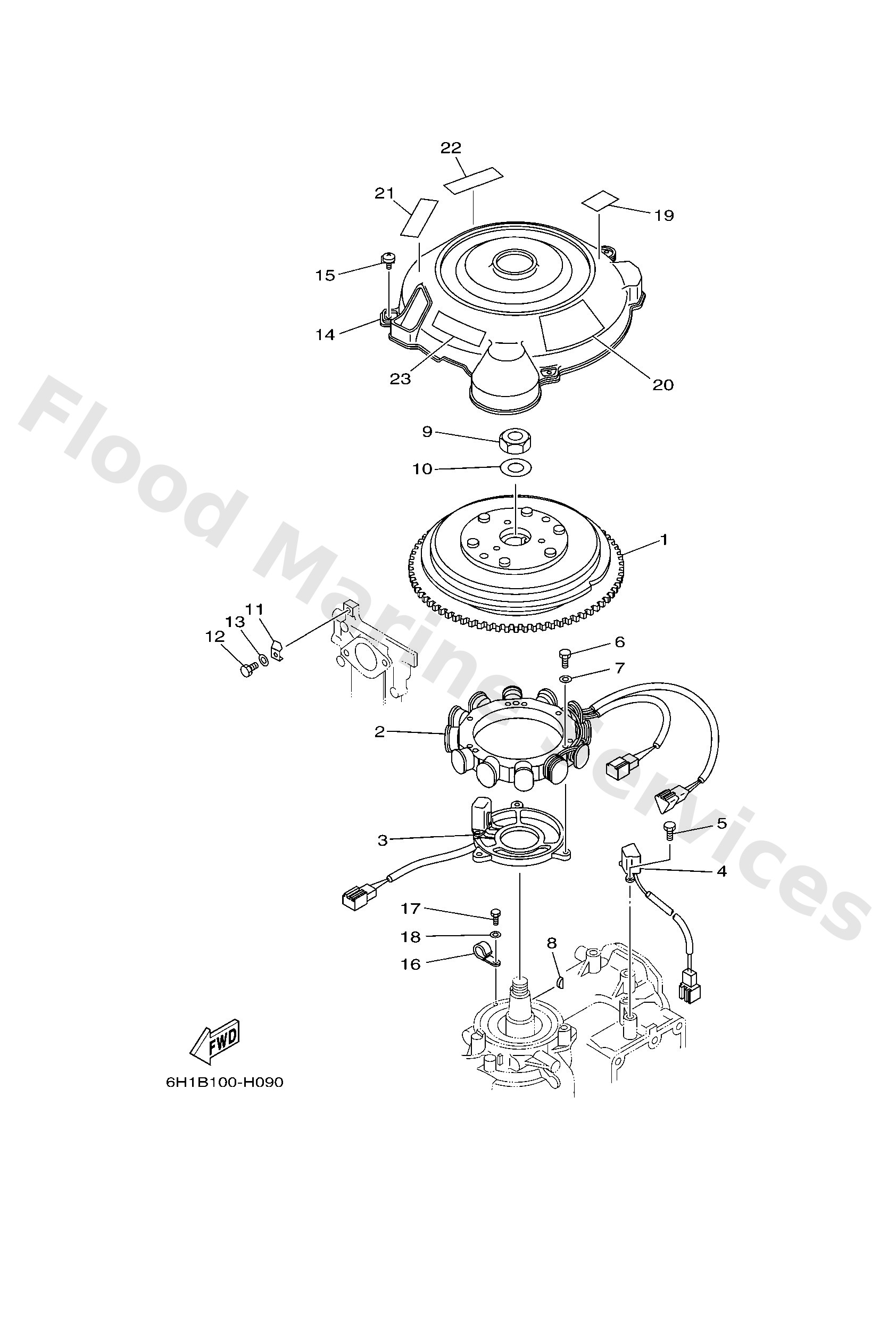

Diagram: GENERATOR
Parts List
Rotor assembly
Diagram Reference: 1
Stator assembly
Diagram Reference: 2
Coil, pulser
Diagram Reference: 3
Crank position sender
Diagram Reference: 4
Bolt, hexagon
Diagram Reference: 5
Bolt (682)
Diagram Reference: 6
Washer, plain (646)
Diagram Reference: 7
Key, woodruff
Diagram Reference: 8
Nut, hexagon(663)
Diagram Reference: 9
Washer, plate (663)
Diagram Reference: 10
Plate, timing
Diagram Reference: 11
Bolt
Diagram Reference: 12
Cover, flywheel
Diagram Reference: 14
Screw, with washer(6h0)
Diagram Reference: 15
Clamp
Diagram Reference: 16
Bolt(gh1)
Diagram Reference: 17
Label, caution
Diagram Reference: 19
Mark, caution
Diagram Reference: 20
Label, warning
Diagram Reference: 21
Label, warning
Diagram Reference: 22
Mark
Diagram Reference: 23
