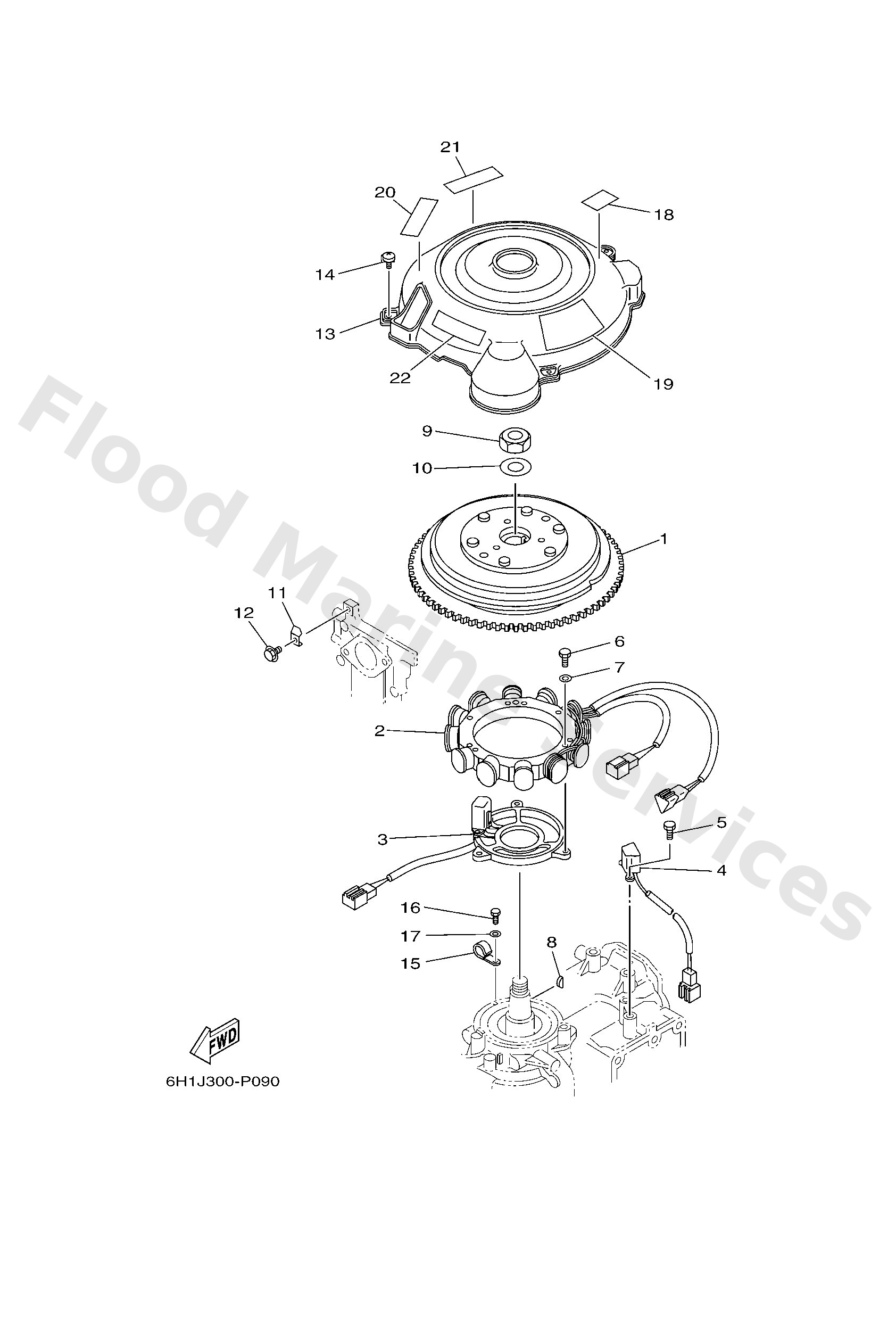

Diagram: GENERATOR

Diagram

Parts List

6H08555000
Rotor assembly
Diagram Reference: 1
Get Part
6H08551003
Stator assembly
Diagram Reference: 2
Get Part
6H08558001
Coil, pulser
Diagram Reference: 3
Get Part
6H28589501
Crank position sender
Diagram Reference: 4
Get Part
9709505012
Bolt, hexagon
Diagram Reference: 5
Get Part
9709506040
Bolt (682)
Diagram Reference: 6
Get Part
9299506600
Washer, plain (646)
Diagram Reference: 7
Get Part
9028005015
Key, woodruff
Diagram Reference: 8
Get Part
9017020137
Nut, hexagon(663)
Diagram Reference: 9
Get Part
9020121M18
Washer, plate (663)
Diagram Reference: 10
Get Part
6888133201
Plate, timing
Diagram Reference: 11
Get Part
9759506510
Bolt, hexagon w/w deep recess
Diagram Reference: 12
Get Part
6H18133701
Cover, flywheel
Diagram Reference: 13
Get Part
9015906M20
Screw, with washer(6h0)
Diagram Reference: 14
Get Part
9046506M90
Clamp
Diagram Reference: 15
Get Part
9709506012
Bolt(gh1)
Diagram Reference: 16
Get Part
6H11448800
Label, caution
Diagram Reference: 18
Get Part
6H11343721
Mark, caution
Diagram Reference: 19
Get Part
6EE8199540
Label, warning
Diagram Reference: 20
Get Part
6EE8199550
Label, warning
Diagram Reference: 21
Get Part
6AG8199600
Mark
Diagram Reference: 22
Get Part
