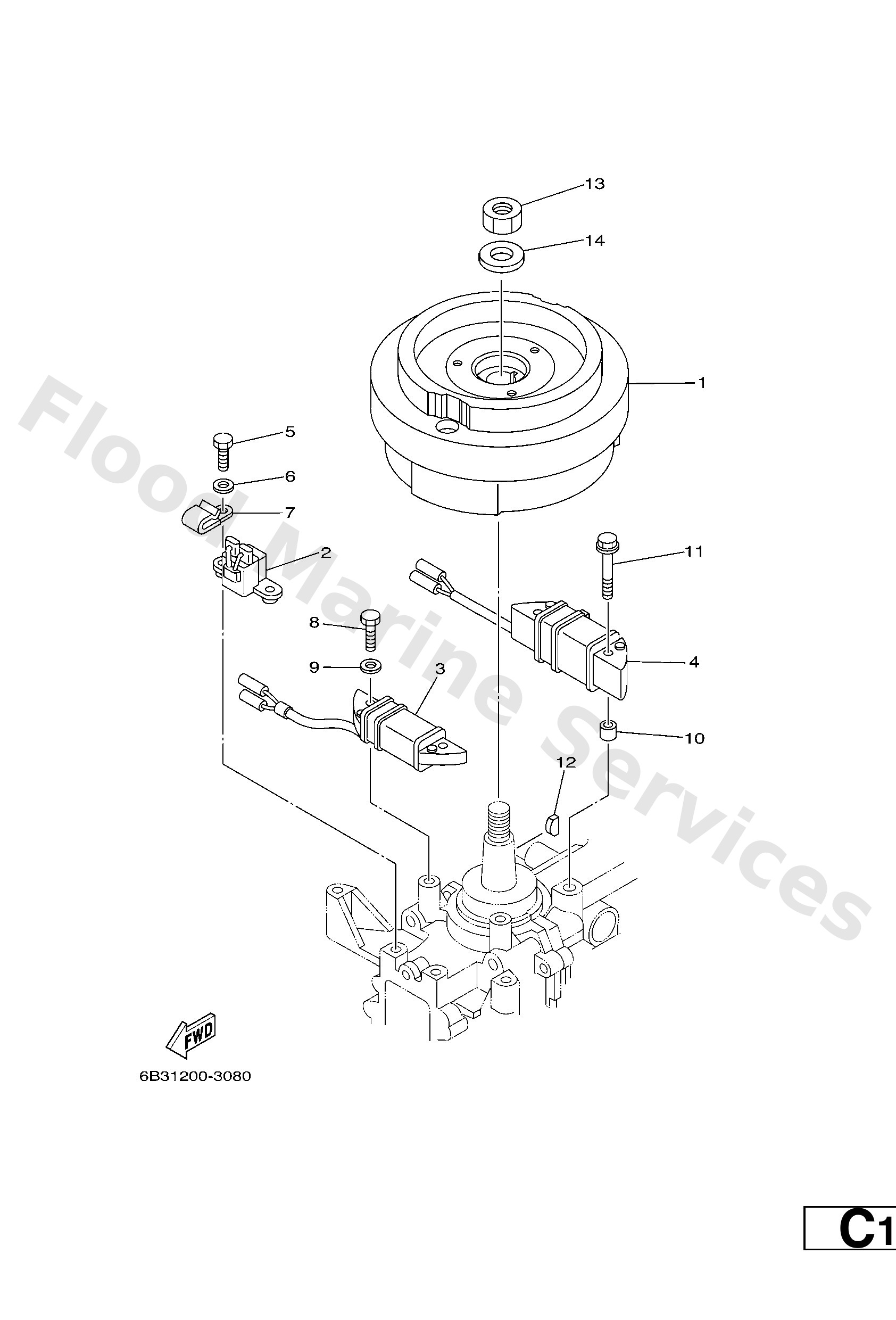

Diagram: GENERATOR

Diagram

Parts List

6B48555000
-
Diagram Reference: 1
Get Part
6B48558000
Coil, pulser
Diagram Reference: 2
Get Part
6B48552000
Coil, charge
Diagram Reference: 3
Get Part
63V8553300 (WITH L/COIL-80W)
Coil, lighting
Diagram Reference: 4
Get Part
9709506016
Bolt, hexagon deep recess
Diagram Reference: 5
Get Part
9299506600
Washer, plain (646)
Diagram Reference: 6
Get Part
9046506M90
Clamp
Diagram Reference: 7
Get Part
9709506020
Bolt(7u8)
Diagram Reference: 8
Get Part
9038706M24 (WITH L/COIL-80W)
Collar(6r8)
Diagram Reference: 10
Get Part
9011906M40 (WITH L/COIL-80W)
Bolt, with washer
Diagram Reference: 11
Get Part
9028005013
Key, woodruff
Diagram Reference: 12
Get Part
9017012066
Nut, hexagon 6481155500
Diagram Reference: 13
Get Part
9020112472
Washer, plate (4n0)
Diagram Reference: 14
Get Part
