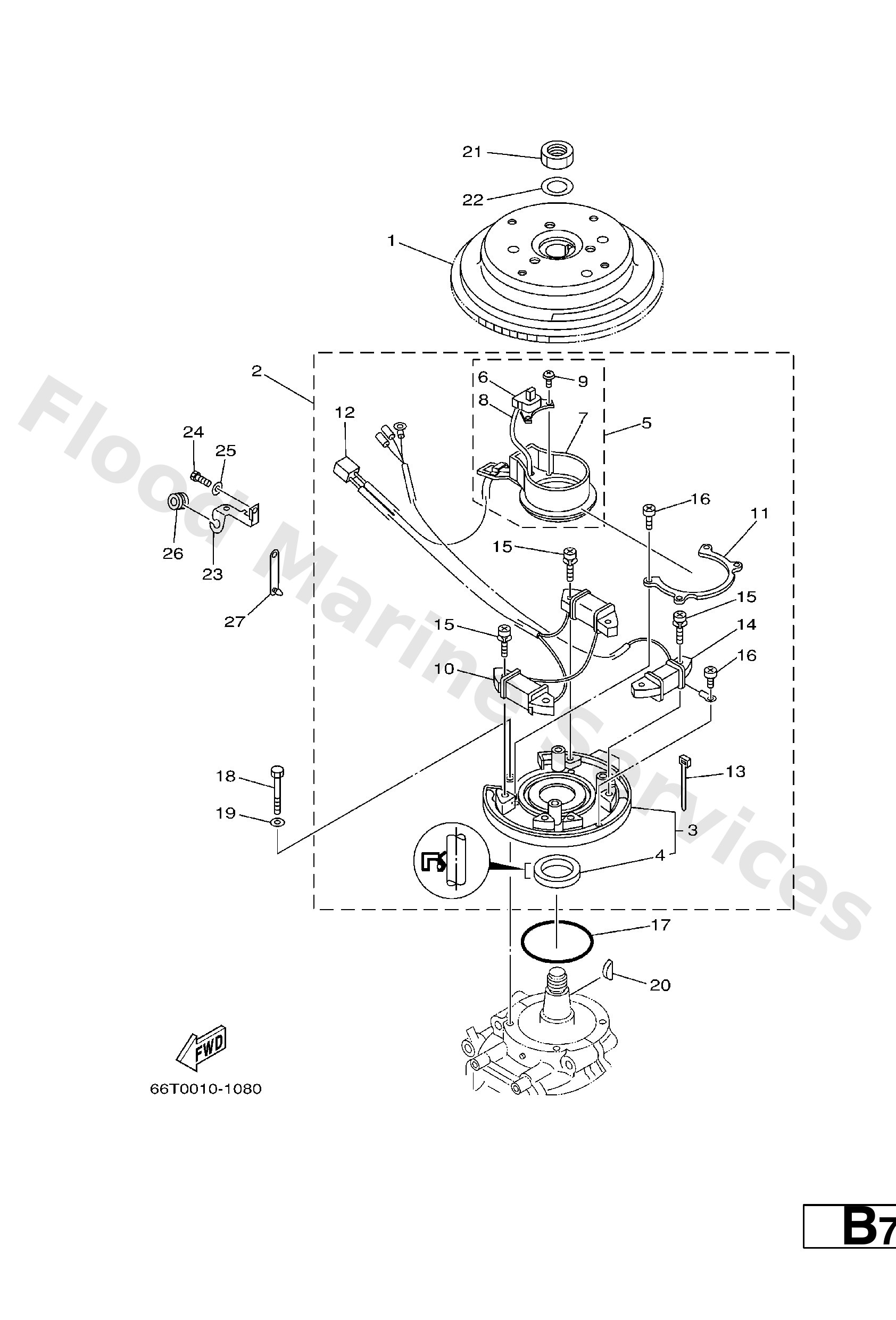

Diagram: GENERATOR

Diagram

Parts List

66T−85550−10
Rotor assembly
Diagram Reference: 1
Get Part
66T−85550−00
Rotor assembly
Diagram Reference: 1
Get Part
66T−85560−01
Base assembly
Diagram Reference: 2
Get Part
66T−85561−00
Base, magneto
Diagram Reference: 3
Get Part
93102−35008
Oil seal
Diagram Reference: 4
Get Part
66T−85580−00
Pulser coil assembly
Diagram Reference: 5
Get Part
66T−85596−00
Coil, pulser 1
Diagram Reference: 6
Get Part
66T−85582−00
Attachment, pulser
Diagram Reference: 7
Get Part
66T−85515−00
Lead wire assembly
Diagram Reference: 8
Get Part
97902−04108
Screw, with washer
Diagram Reference: 9
Get Part
66T−85520−00
Coil, charge
Diagram Reference: 10
Get Part
66T−41611−00
Retainer, magneto base
Diagram Reference: 11
Get Part
9E471−04305
Housing, connector (f-4-b)
Diagram Reference: 12
Get Part
66T−81328−00
Clamp
Diagram Reference: 13
Get Part
66T−85533−00
Coil, lighting
Diagram Reference: 14
Get Part
97902−06125
Screw, pan head (76t)
Diagram Reference: 15
Get Part
97802−04006
Screw, pan head(3xp)
Diagram Reference: 16
Get Part
93210−75M51
O-ring (6f5)
Diagram Reference: 17
Get Part
97095−06040
Bolt (682)
Diagram Reference: 18
Get Part
92995−06600
Washer, plain (646)
Diagram Reference: 19
Get Part
90280−05015
Key, woodruff
Diagram Reference: 20
Get Part
90170−20137
Nut, hexagon(663)
Diagram Reference: 21
Get Part
90201−21M18
Washer, plate (663)
Diagram Reference: 22
Get Part
90465−15M74
Clamp
Diagram Reference: 23
Get Part
97095−06016
Bolt, hexagon deep recess
Diagram Reference: 24
Get Part
90480−10M71
Grommet
Diagram Reference: 26
Get Part
90464−12M00
Clamp
Diagram Reference: 27
